INSPECTION PROCEDURE E-1: Keyless Entry System: Keyless entry system does not operate.: Notes

NOTE: This troubleshooting procedure requires the use of scan tool MB991502 and SWS monitor kit MB991862. For details on how to use the SWS monitor, refer to HOW TO USE SWS MONITOR  .

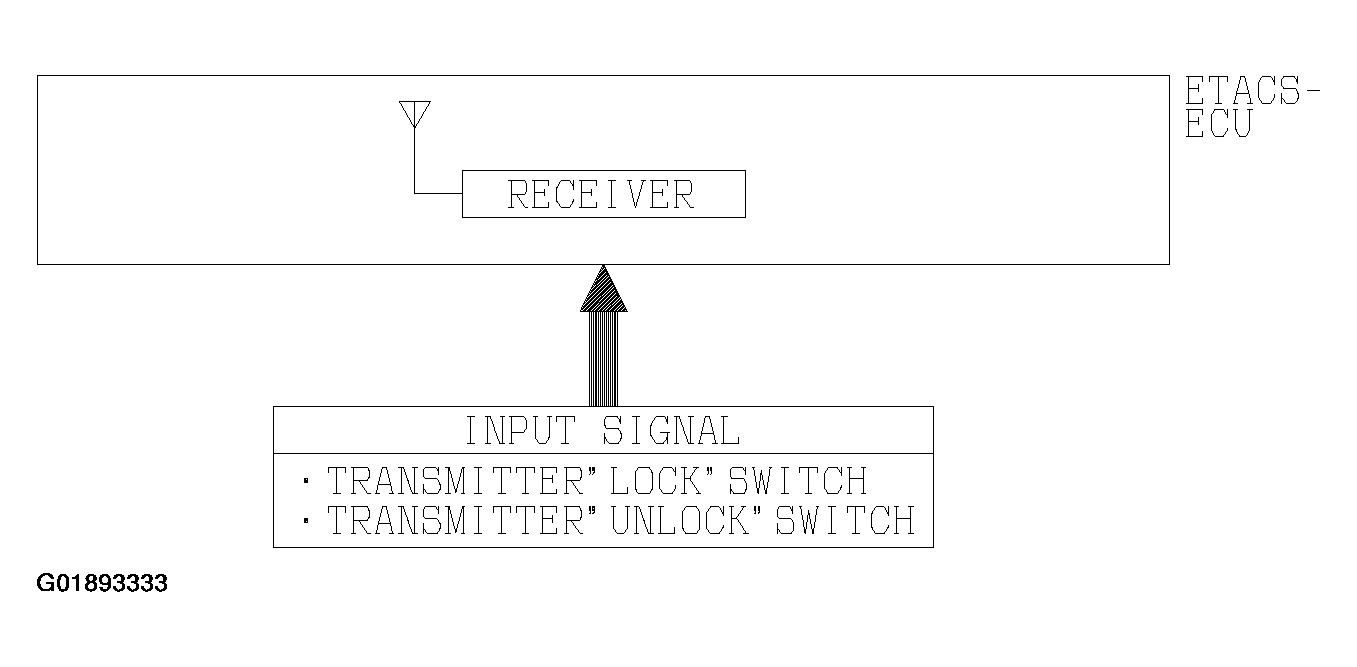

Fig 1: Transmitter ("LOCK"/"UNLOCK") Input Signal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
