INSPECTION PROCEDURE 17: Shift Switch Assembly System: Notes

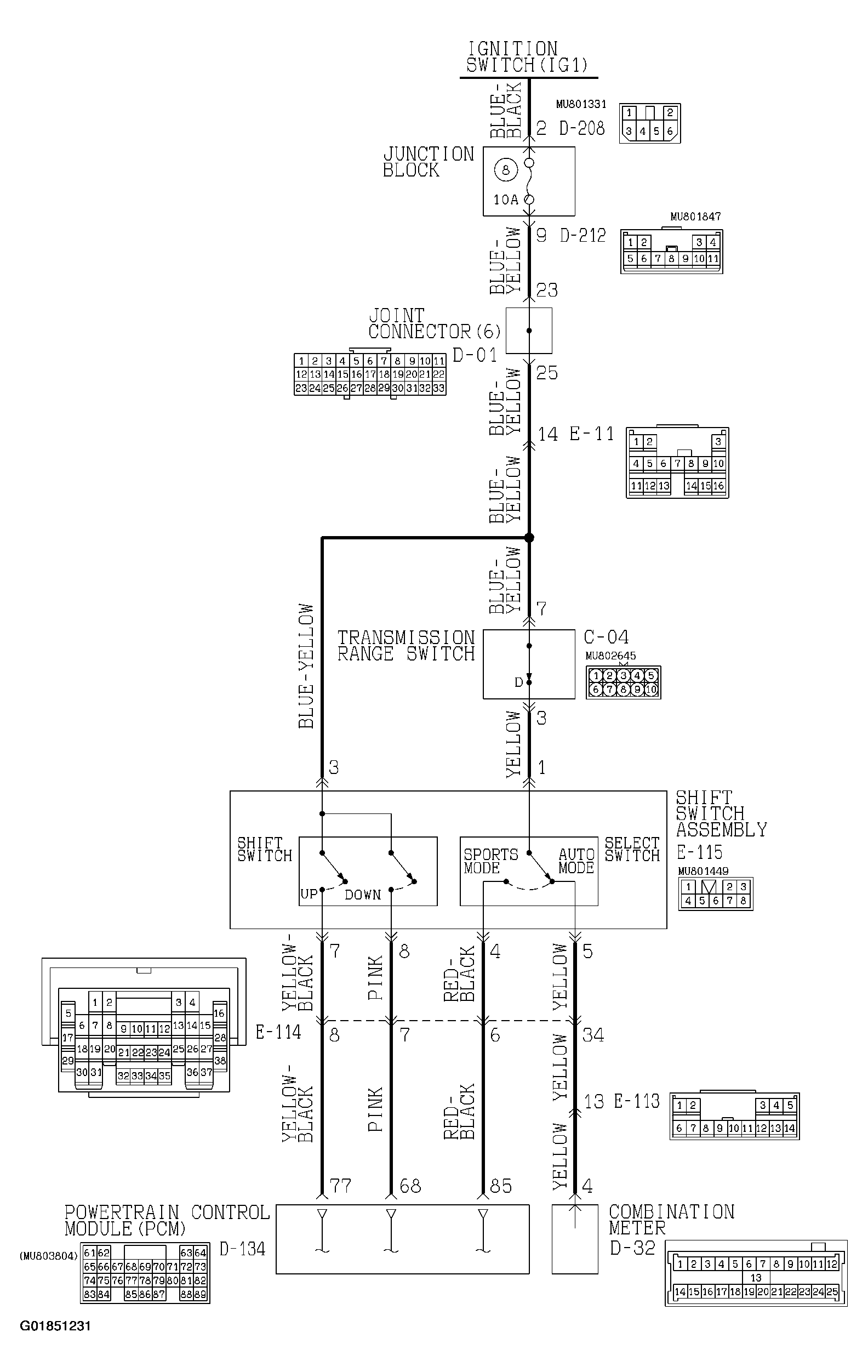

Fig 1: Shift Switch Assembly System Circuit Diagram (1 Of 3)
G01851231Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

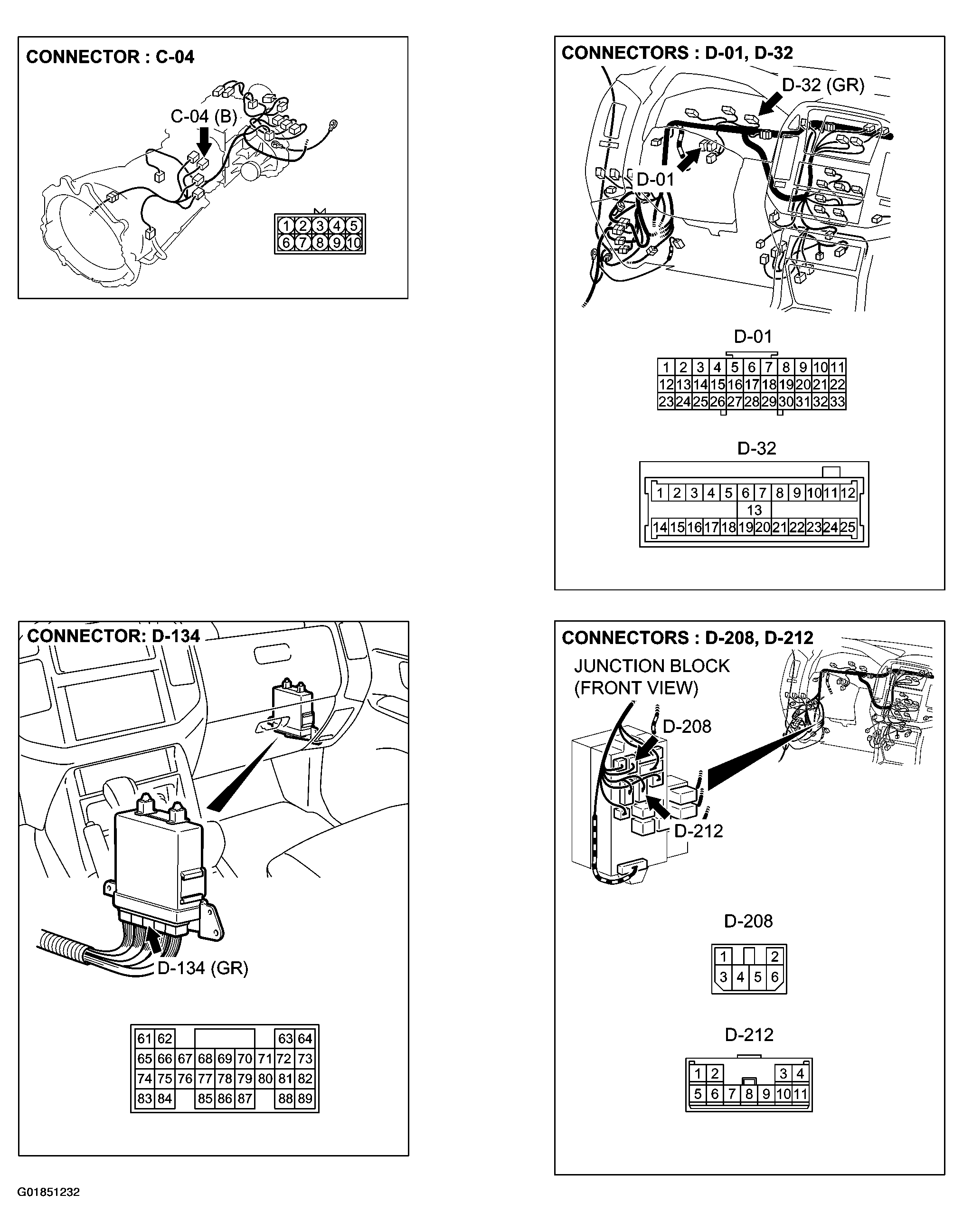

Fig 2: Shift Switch Assembly System Circuit Diagram (2 Of 3)
G01851232Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

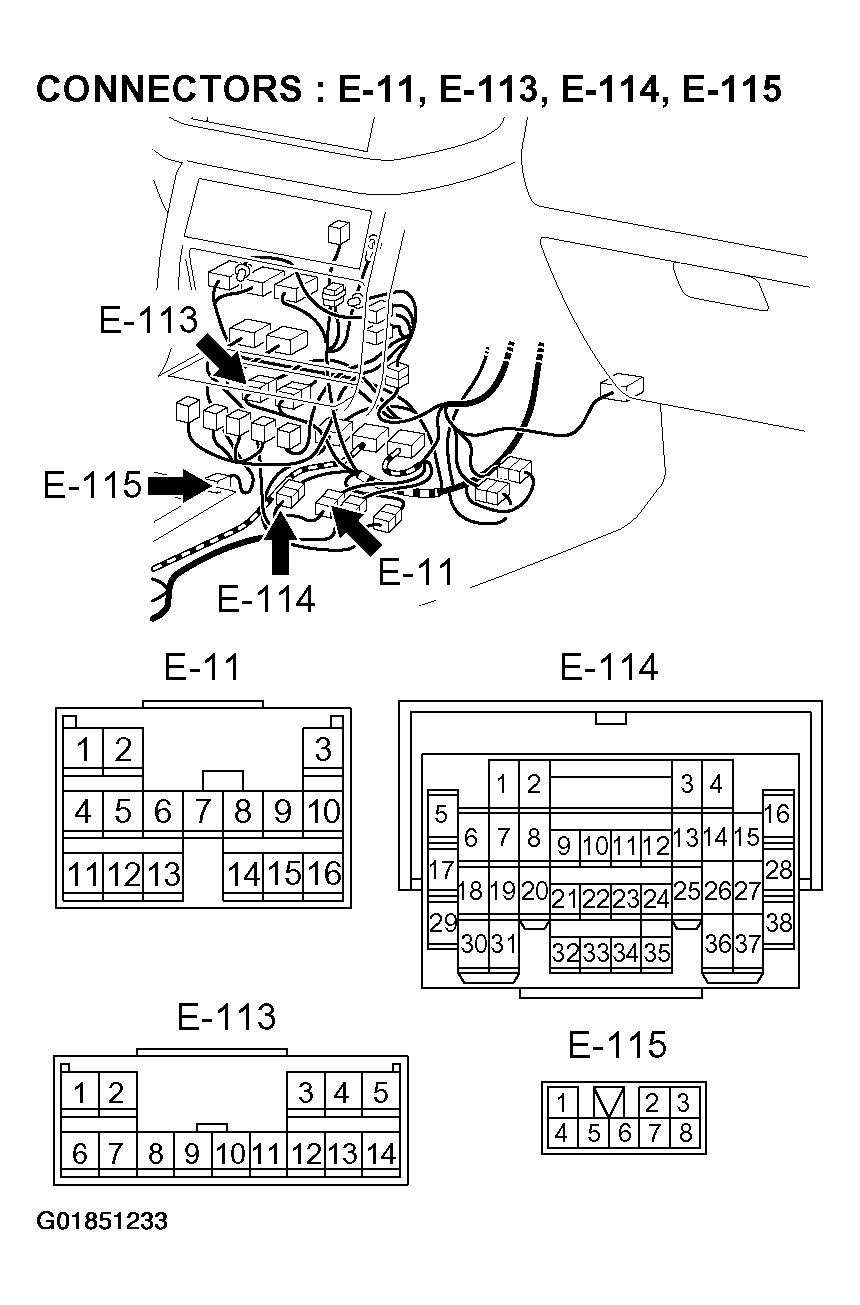

Fig 3: Shift Switch Assembly System Circuit Diagram (3 Of 3)
G01851233Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
