General Description Concerning Keyless Entry System

The following ECUs affect the functions and control of the keyless entry system.

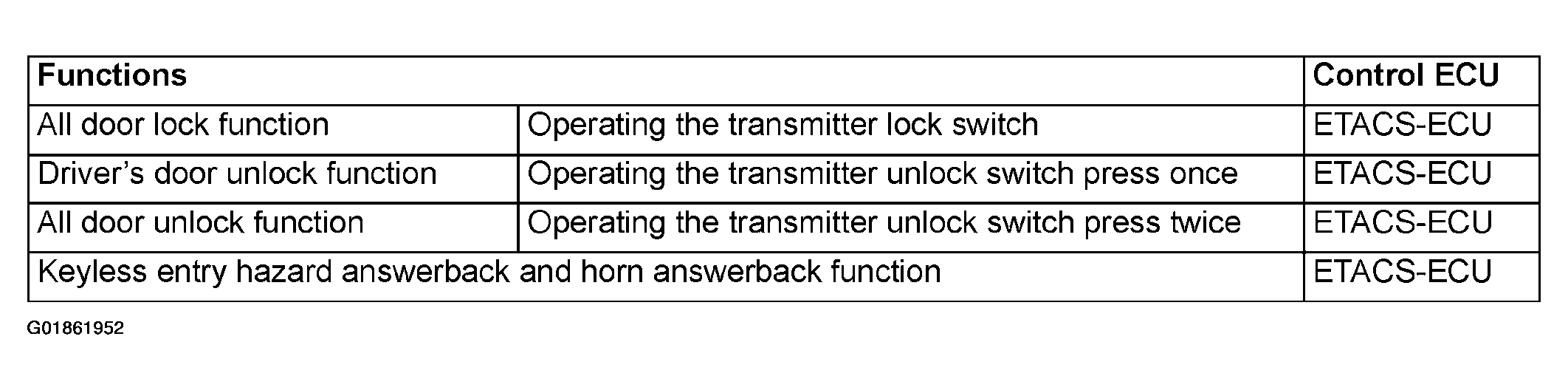

Fig 1: Identifying Keyless Entry System Functions And Control Table
G01861952Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
