DTC P0106: Barometric Pressure Circuit Range/Performance: Description

The barometric pressure sensor outputs a voltage which corresponds to the barometric pressure. The PCM checks whether this voltage is within a specified range. See Fig 1 .

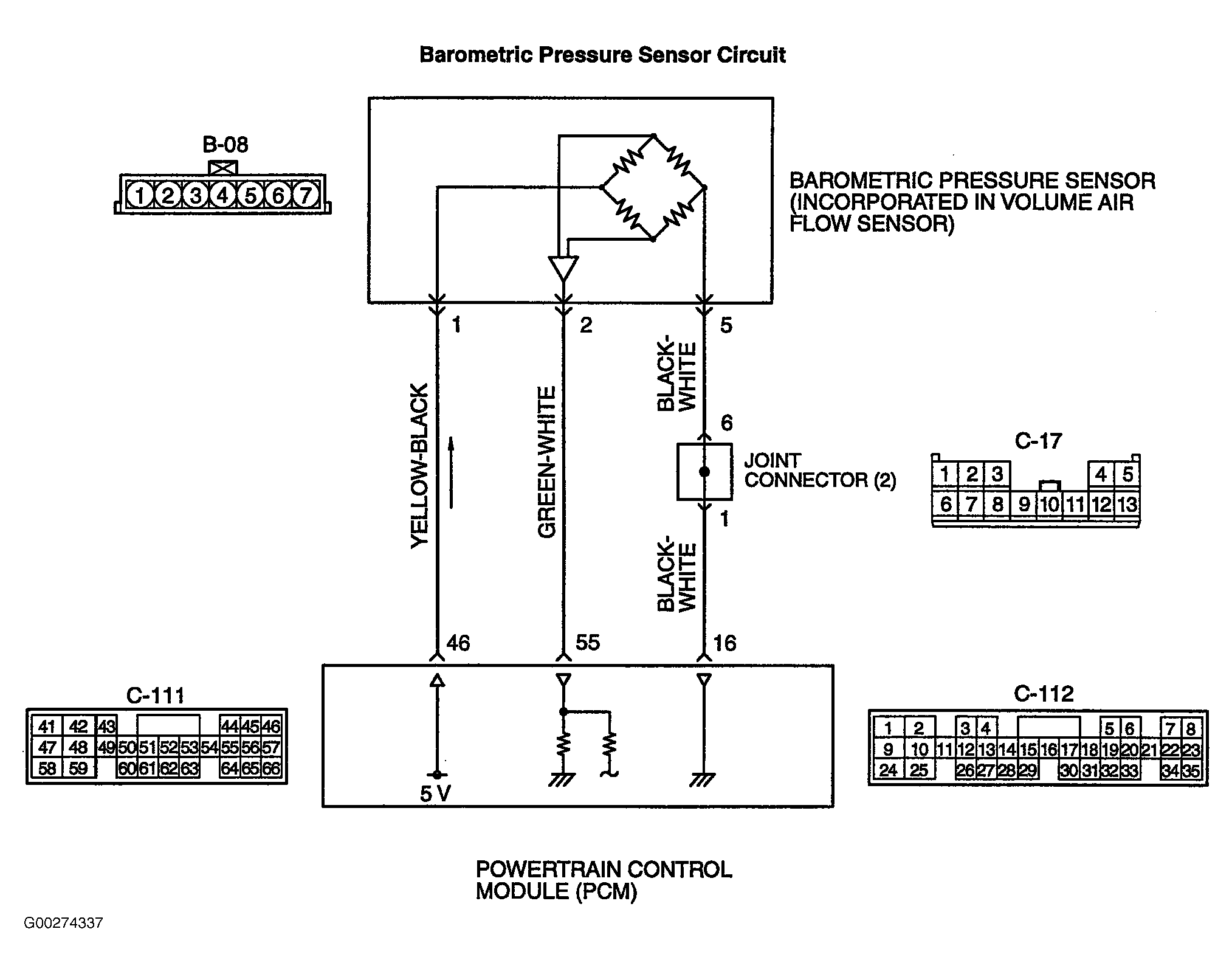

Fig 1: Barometric Pressure Sensor Circuit Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
