Removal And Installation

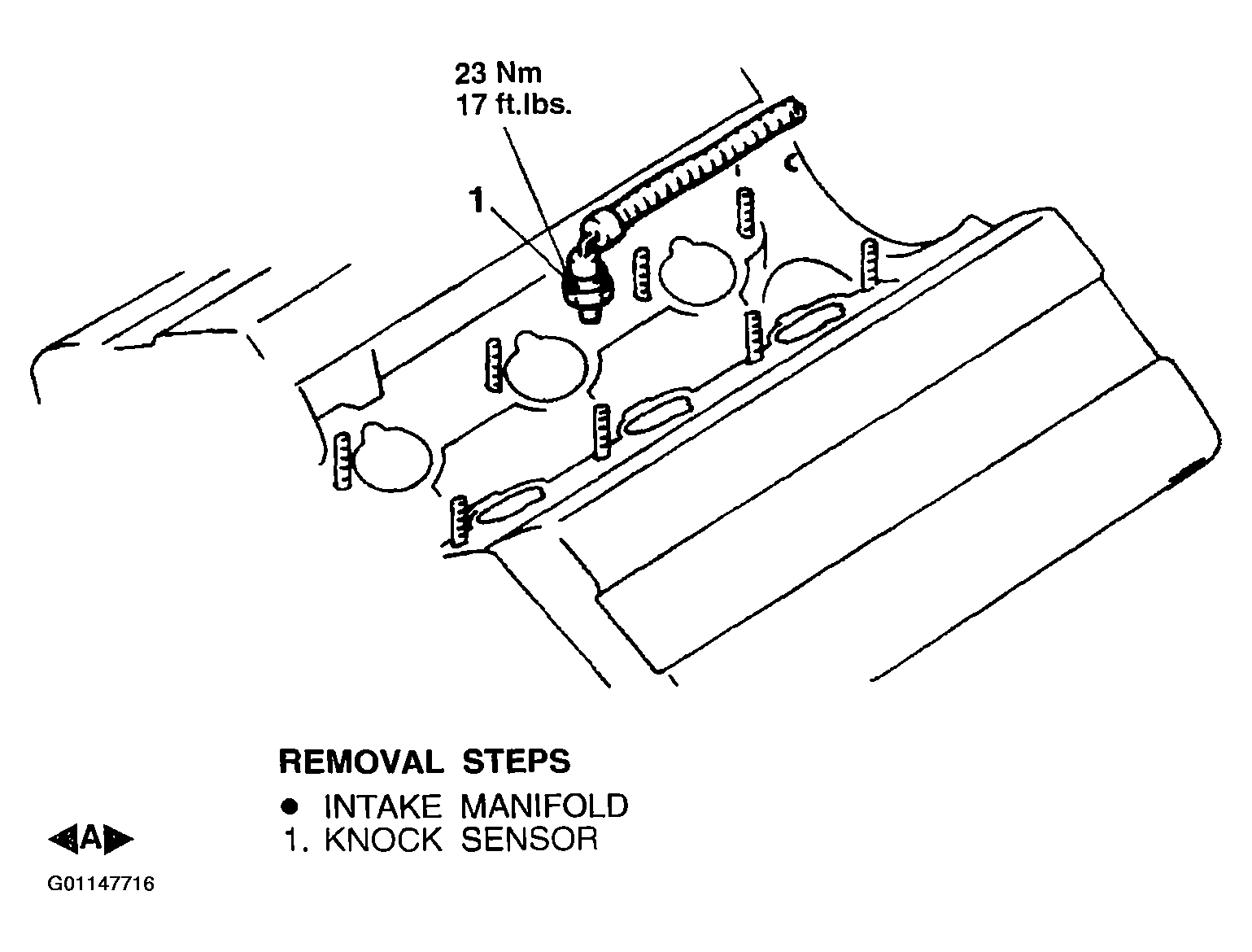

Fig 1: Removing Knock Sensor
G01147716Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Do not subject the knock sensor to any shocks.
