Removal And Installation

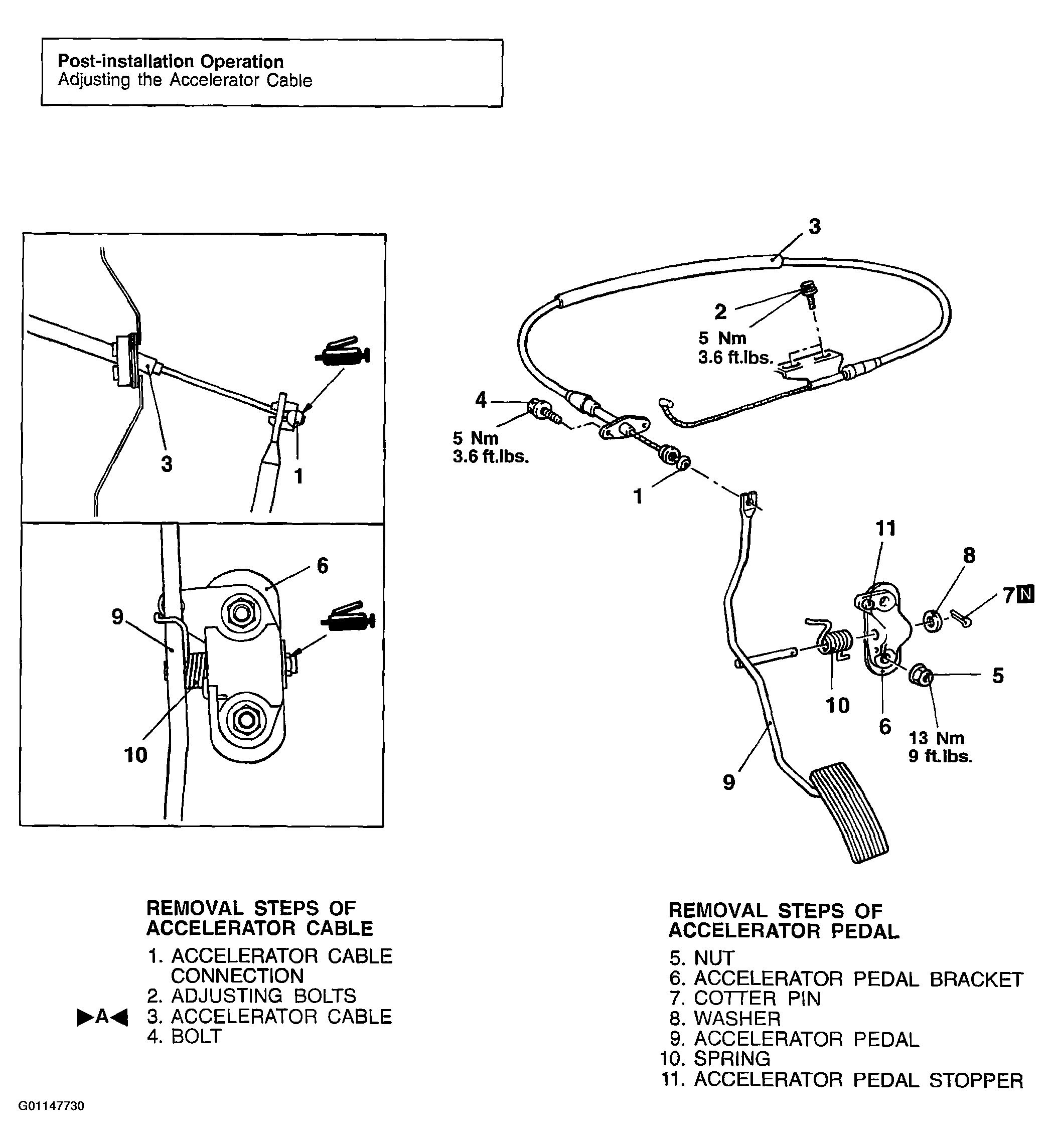

Fig 1: Removing & Installing Accelerator Cable And Pedal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
