Transmission Range Switch System Circuit < Vehicles with Sport Mode>

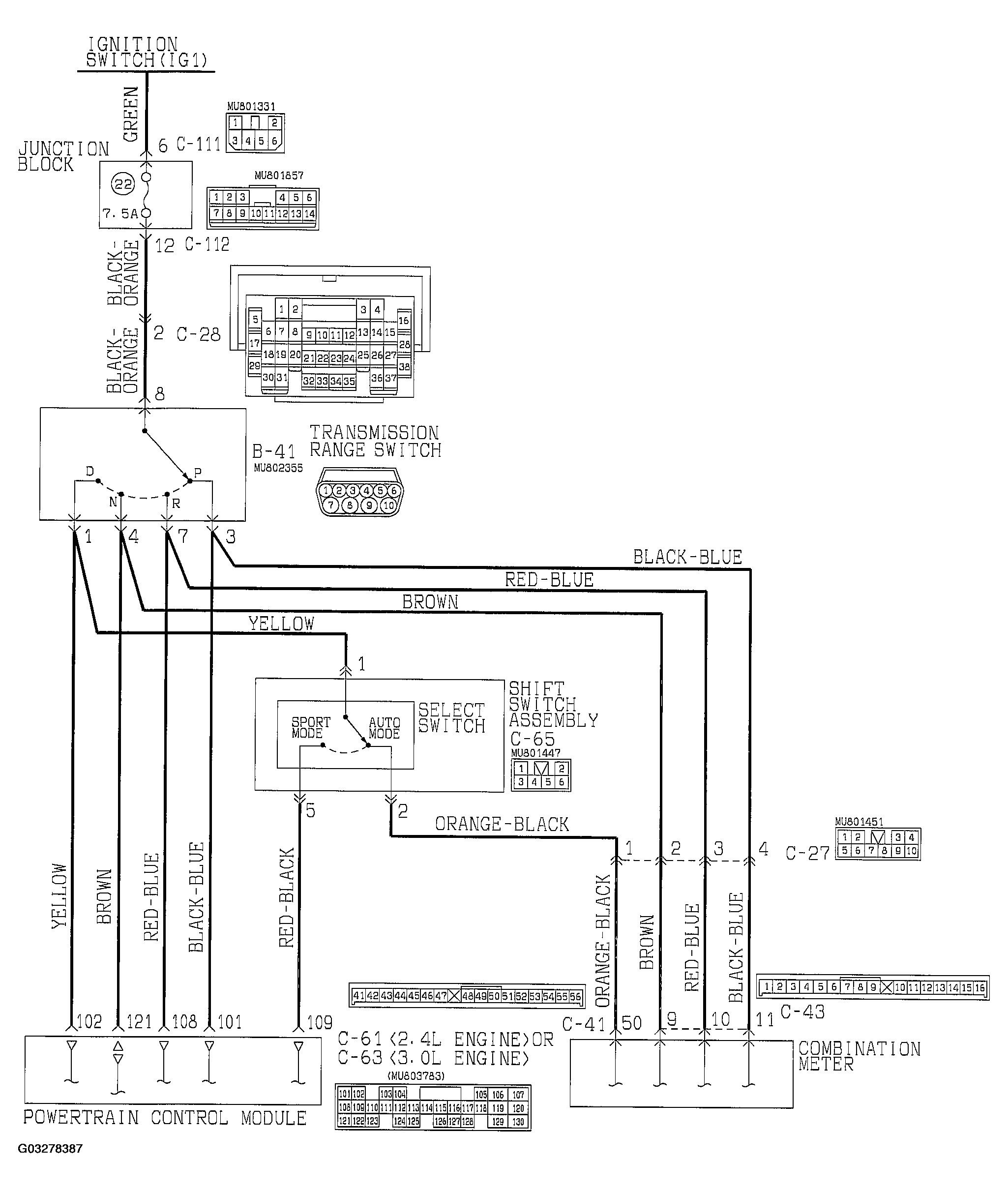

Fig 1: Transmission Range Switch System Circuit (Vehicles With Sport Mode)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

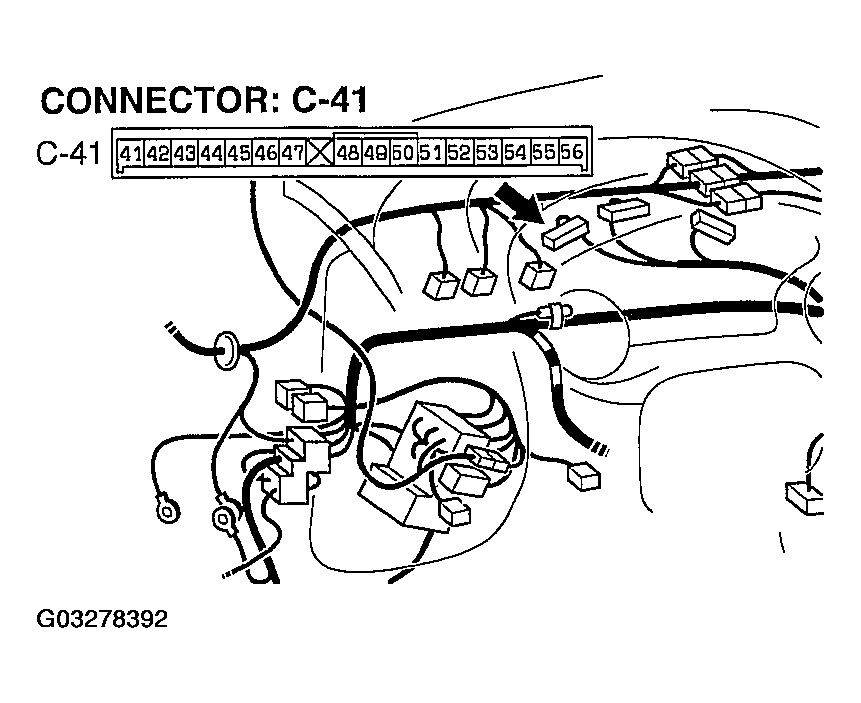

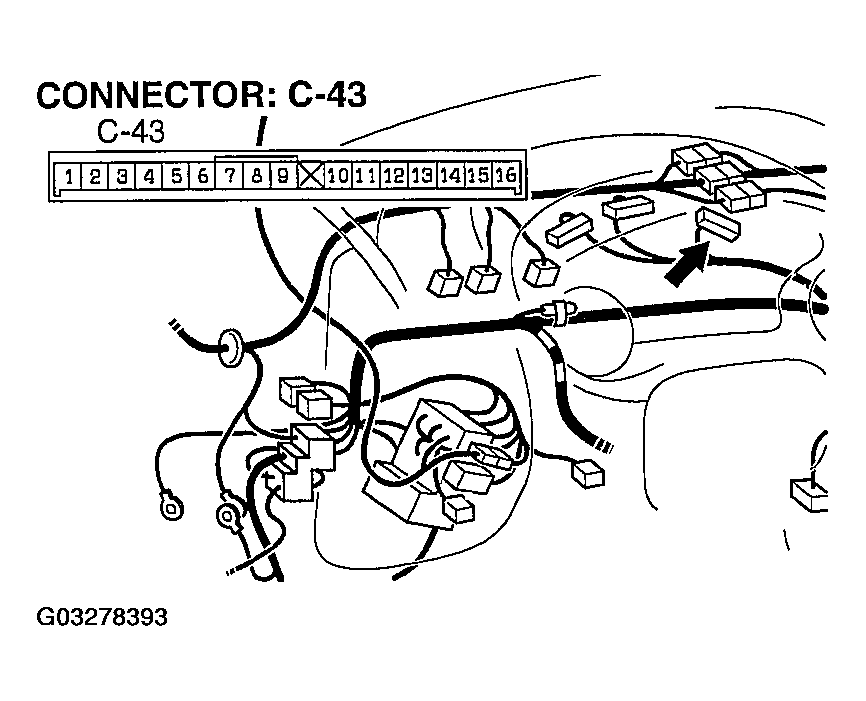

Fig 2: Identifying Connectors Of Transmission Range Switch System Circuit (1 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

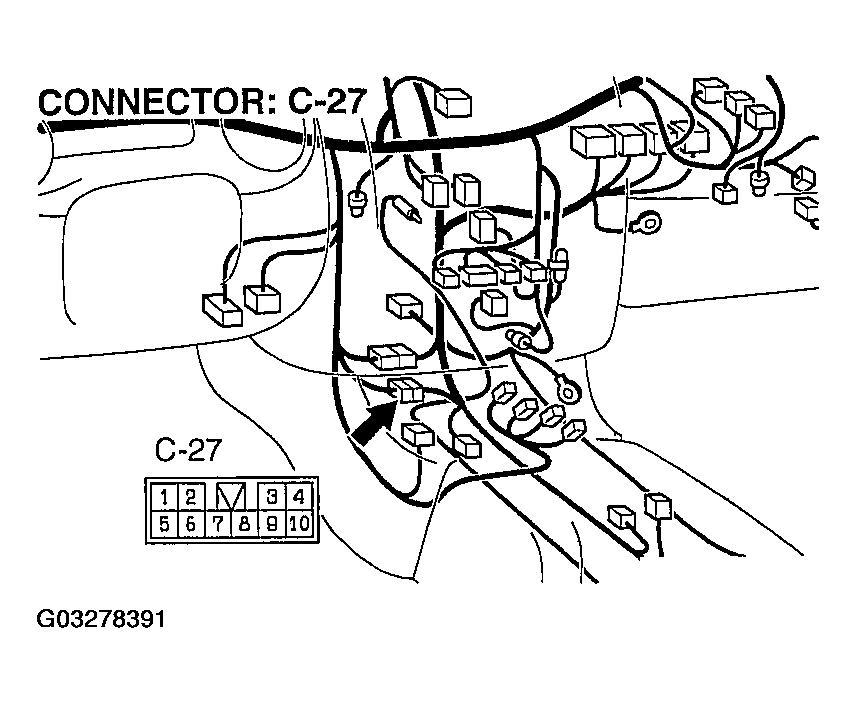

Fig 3: Identifying Connectors Of Transmission Range Switch System Circuit (2 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

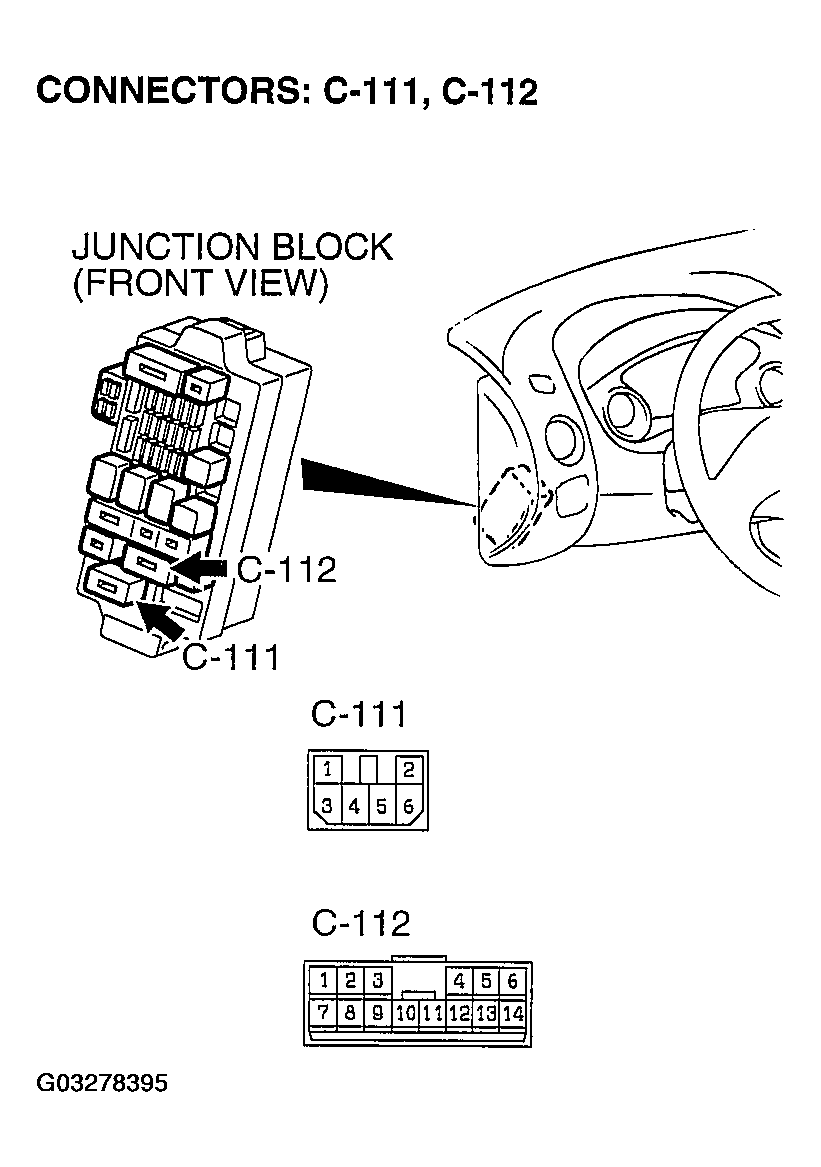

Fig 4: Identifying Connectors Of Transmission Range Switch System Circuit (3 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

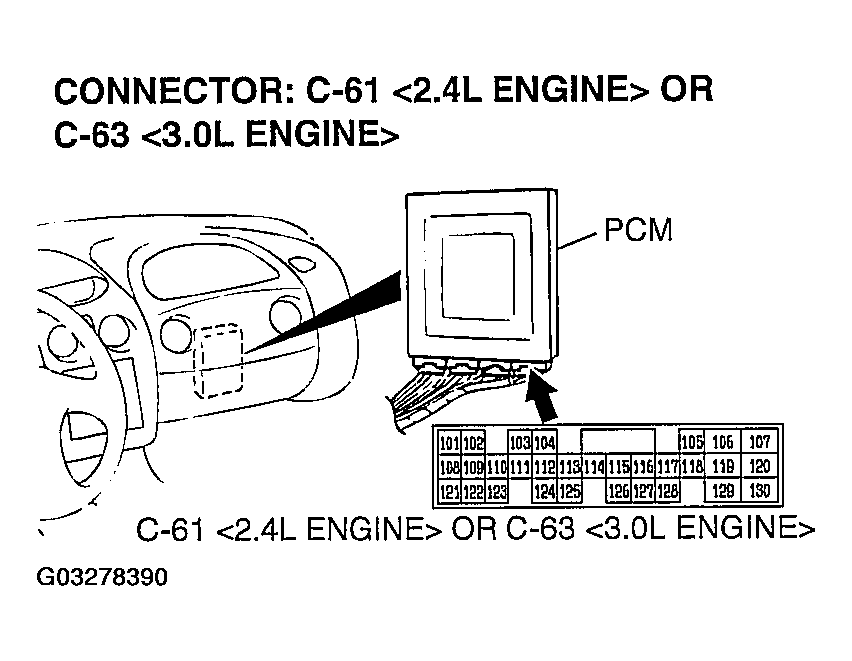

Fig 5: Identifying Connectors Of Transmission Range Switch System Circuit (4 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

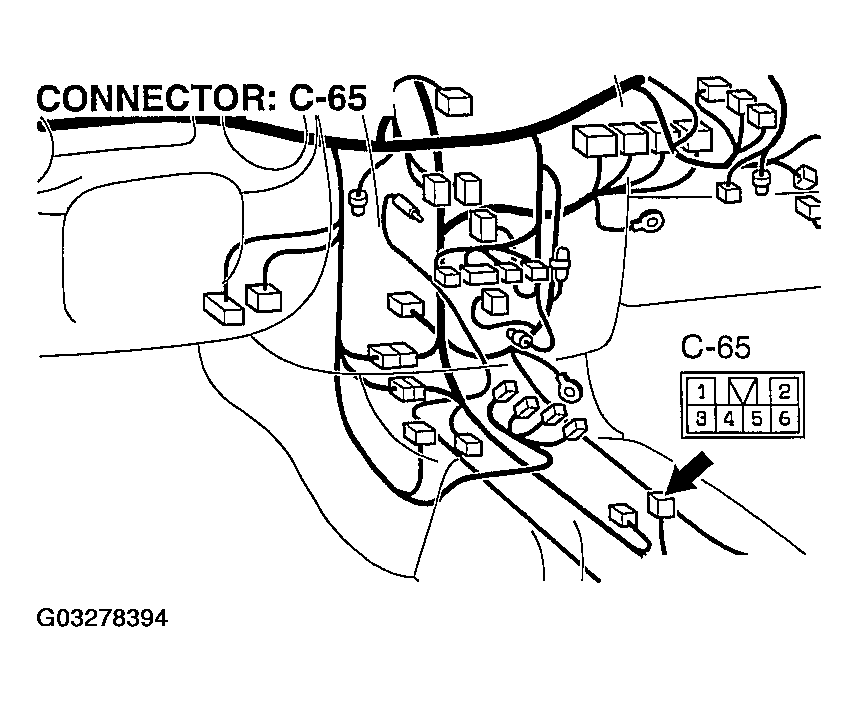

Fig 6: Identifying Connectors Of Transmission Range Switch System Circuit (5 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

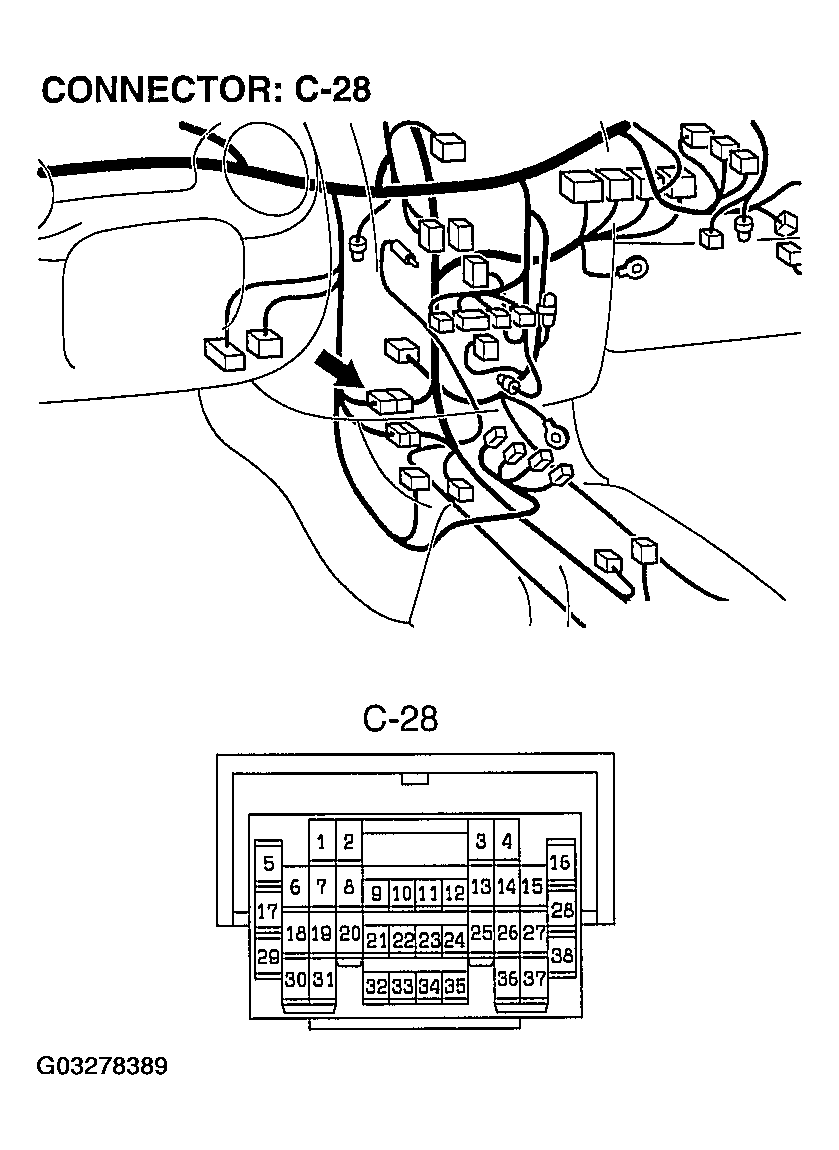

Fig 7: Identifying Connectors Of Transmission Range Switch System Circuit (6 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

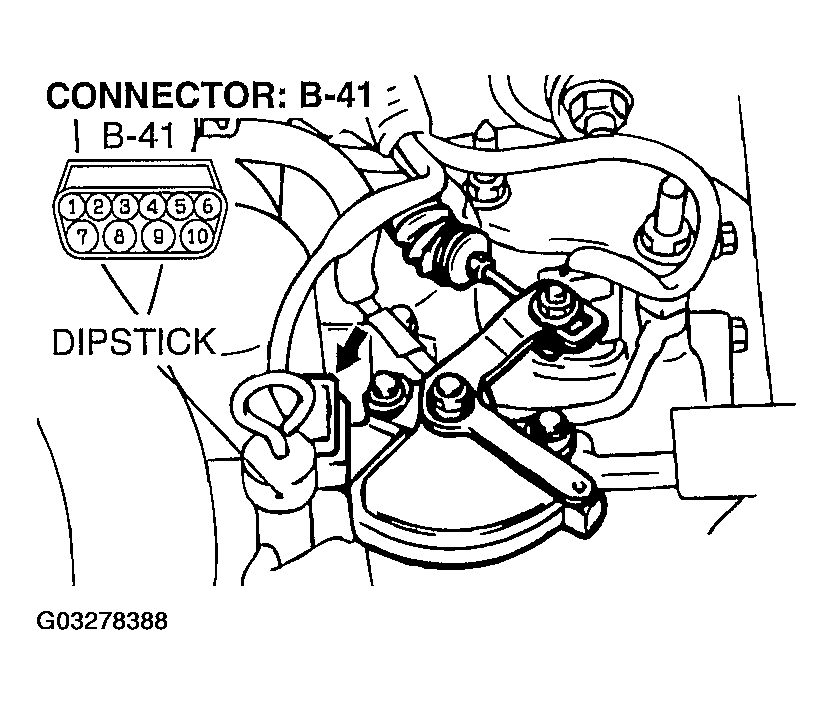

Fig 8: Identifying Connectors Of Transmission Range Switch System Circuit (7 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Identifying Connectors Of Transmission Range Switch System Circuit (8 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
