A/T Control Relay System Circuit

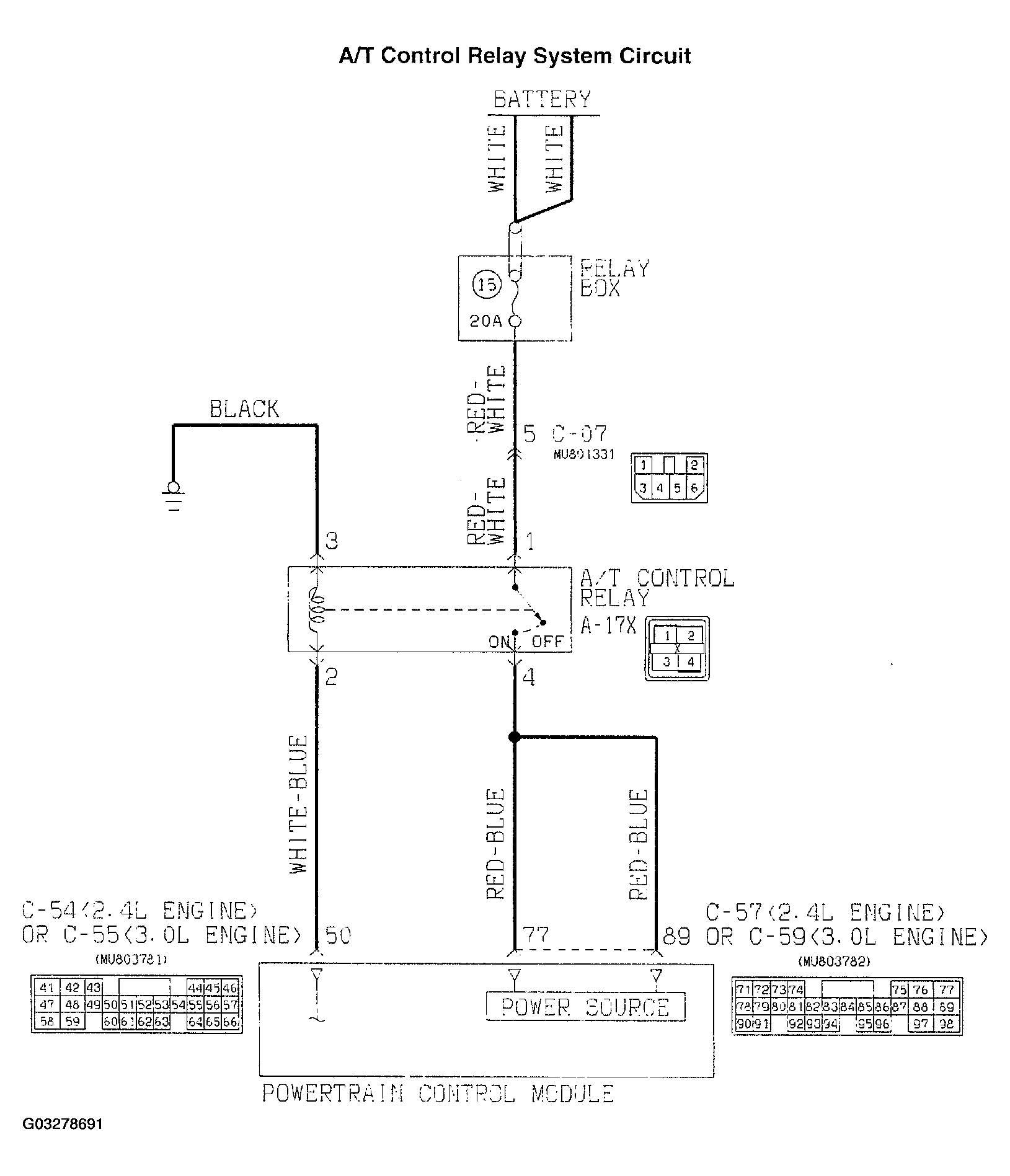

Fig 1: A/T Control Relay System Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

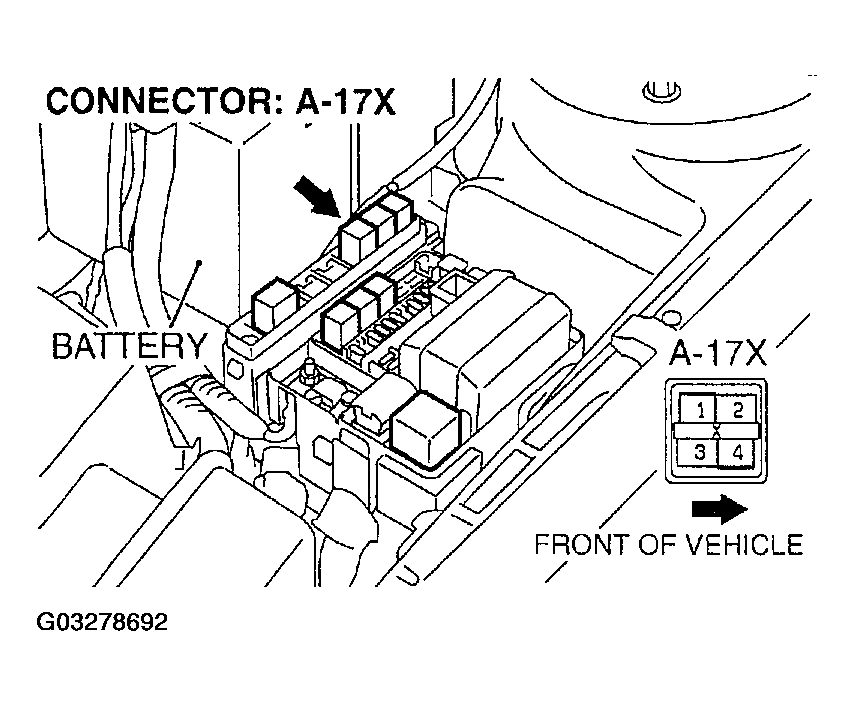

Fig 2: Identifying Connectors Of A/T Control Relay System Circuit (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

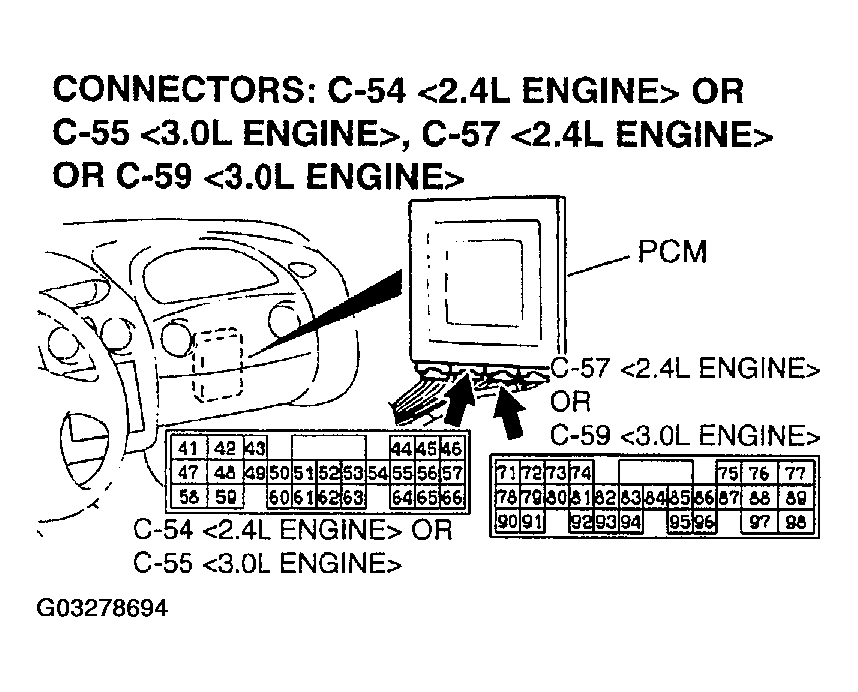

Fig 3: Identifying Connectors Of A/T Control Relay System Circuit (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

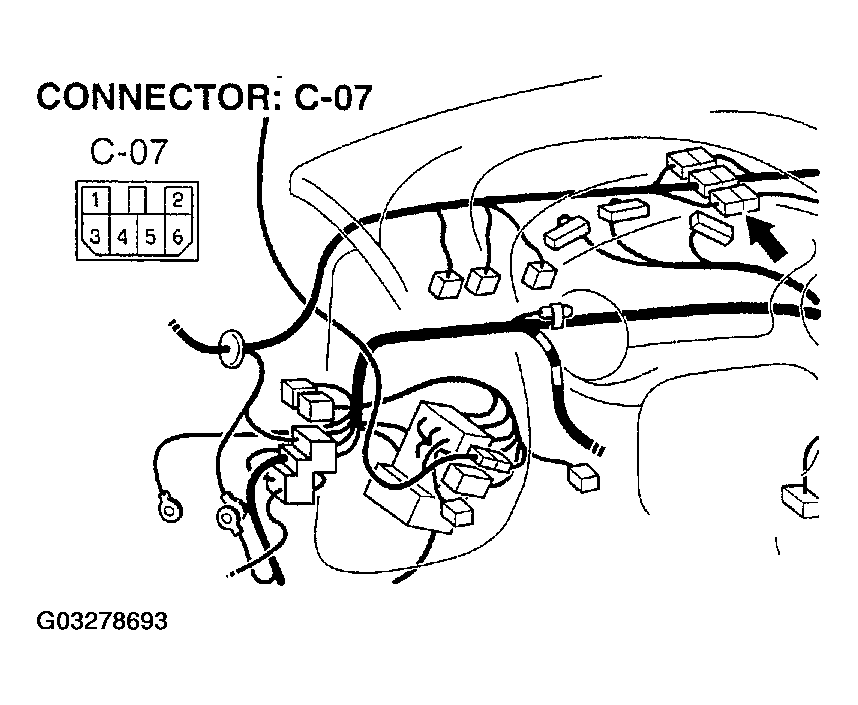

Fig 4: Identifying Connectors Of A/T Control Relay System Circuit (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
