Shift Switch Assembly System Circuit

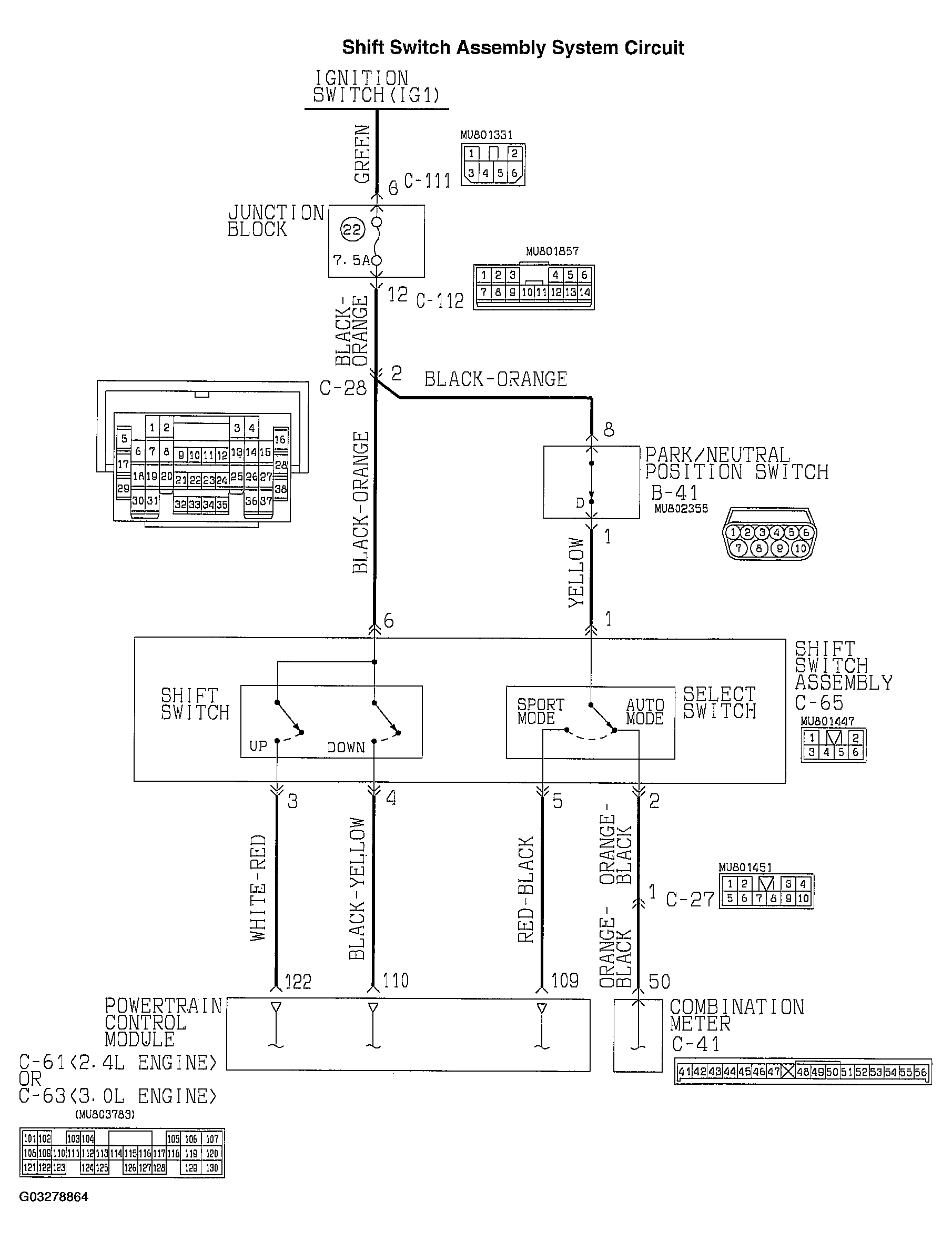

Fig 1: Shift Switch Assembly System Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

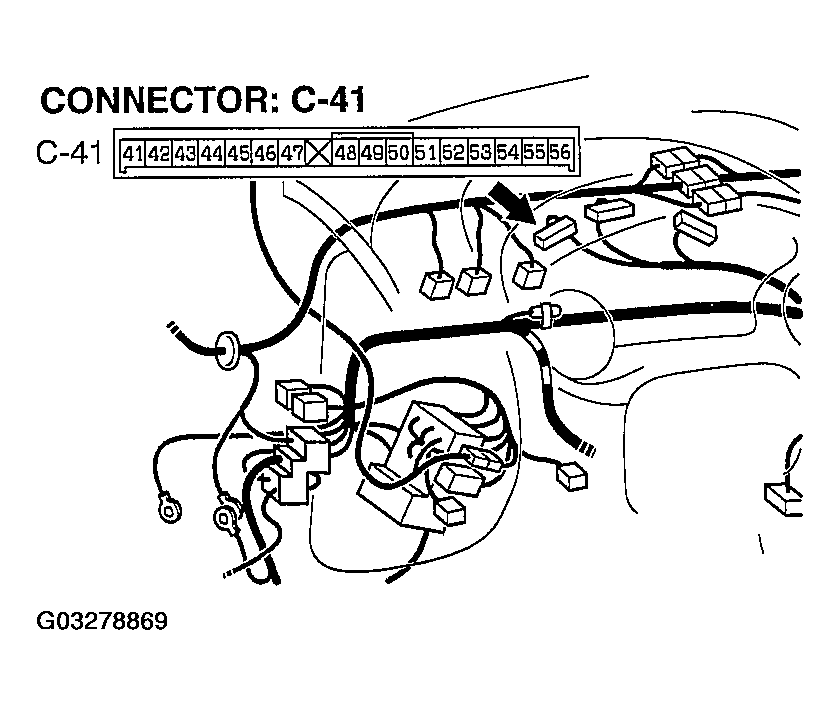

Fig 2: Identifying Connectors Of Shift Switch Assembly System Circuit (1 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

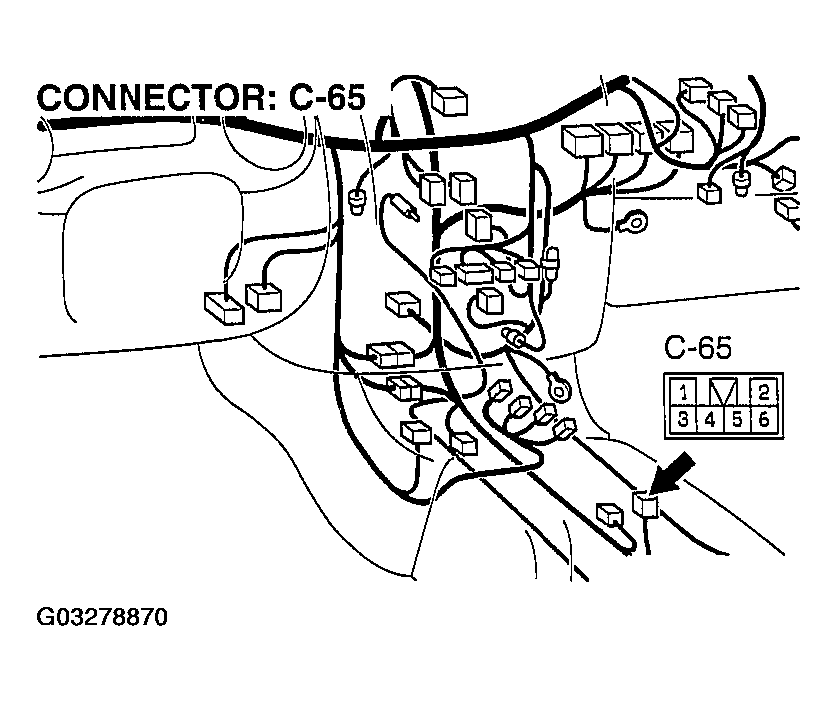

Fig 3: Identifying Connectors Of Shift Switch Assembly System Circuit (2 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

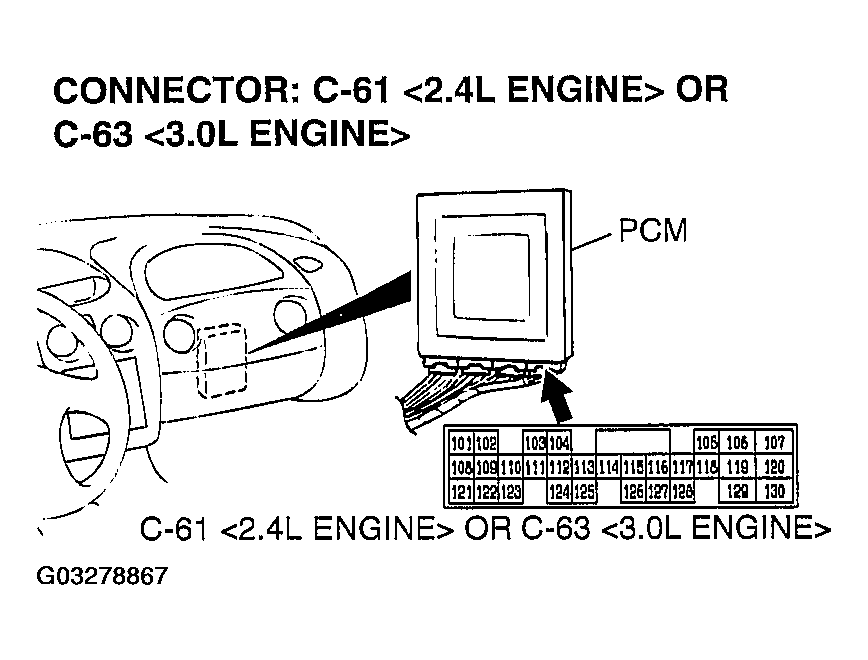

Fig 4: Identifying Connectors Of Shift Switch Assembly System Circuit (3 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

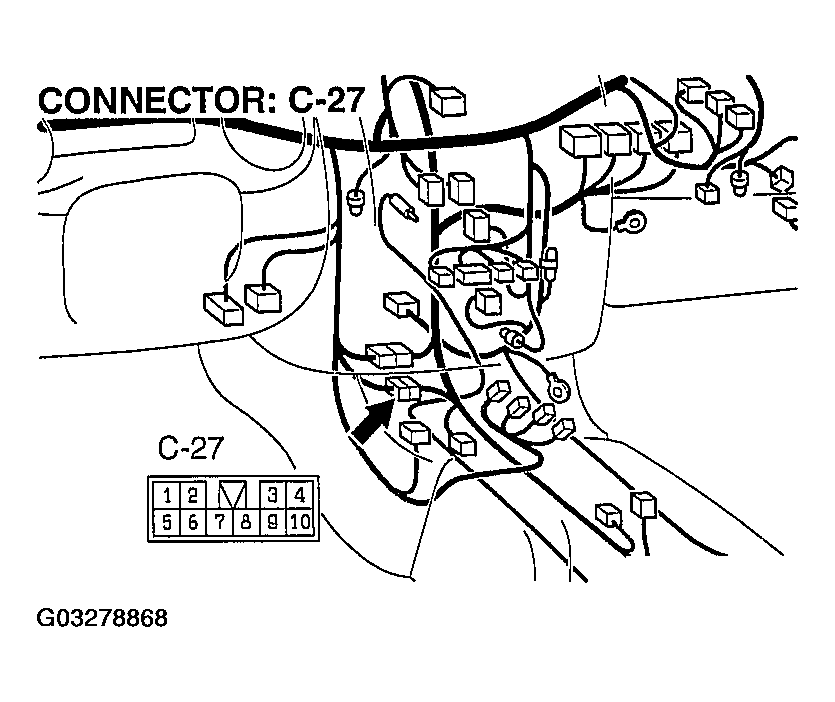

Fig 5: Identifying Connectors Of Shift Switch Assembly System Circuit (4 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

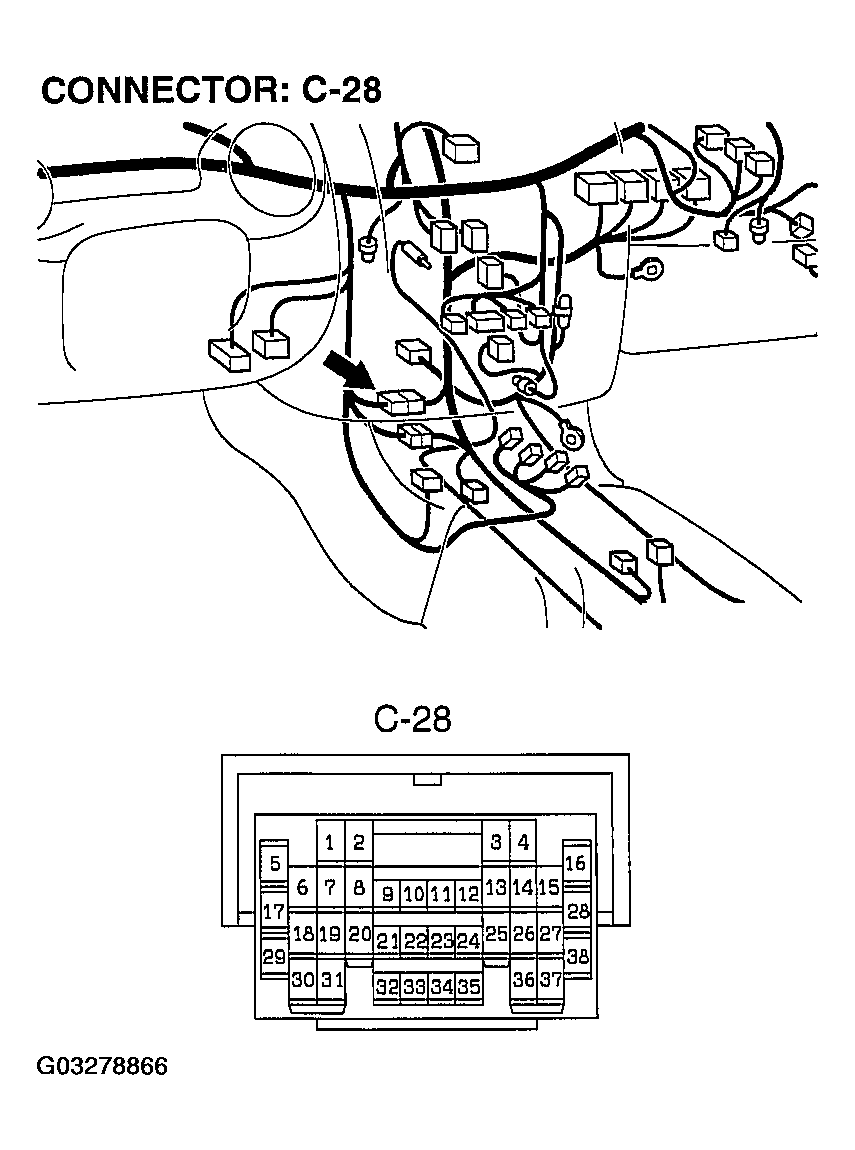

Fig 6: Identifying Connectors Of Shift Switch Assembly System Circuit (5 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

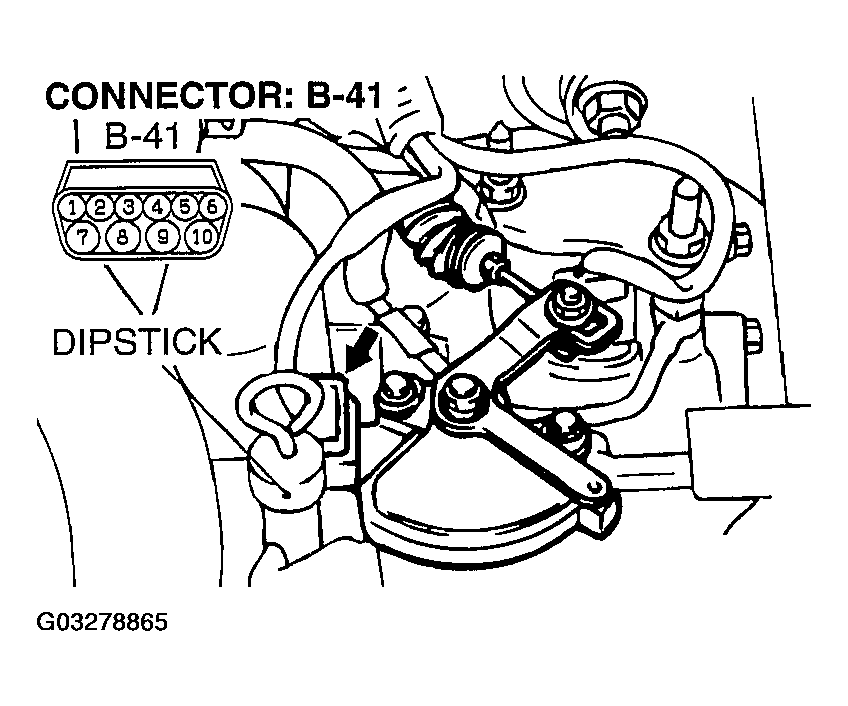

Fig 7: Identifying Connectors Of Shift Switch Assembly System Circuit (6 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

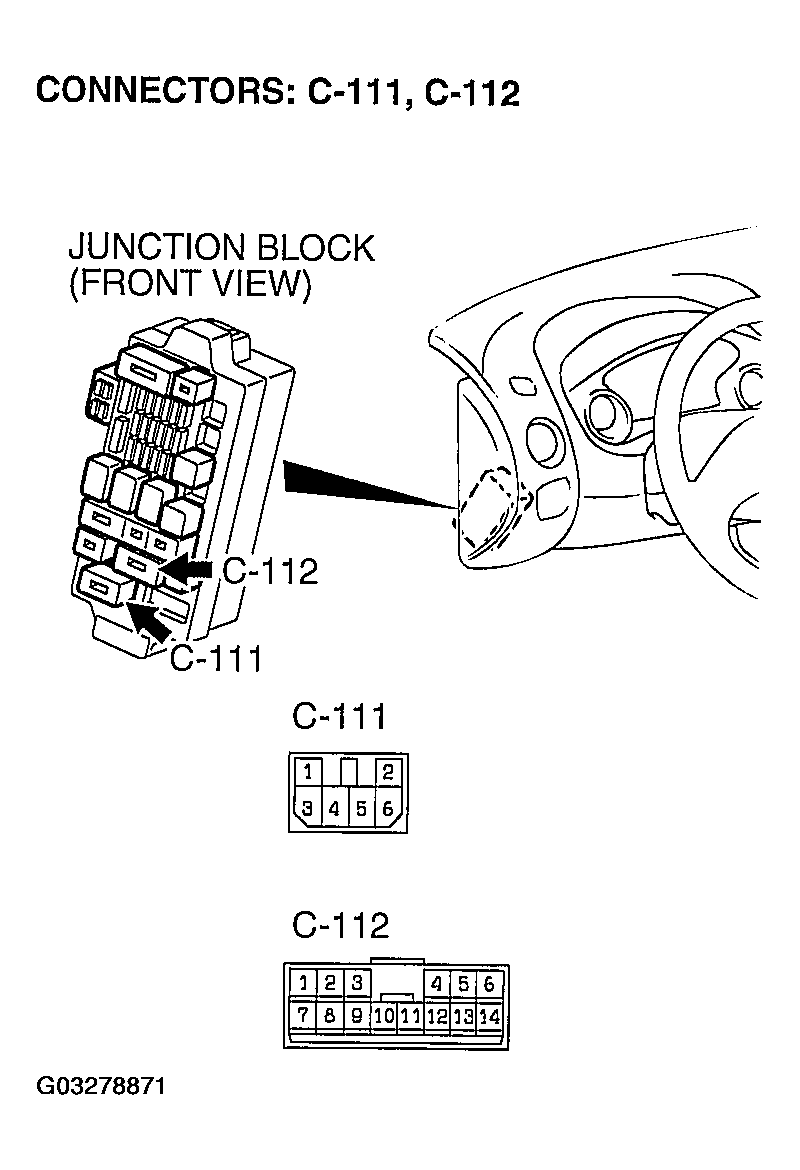

Fig 8: Identifying Connectors Of Shift Switch Assembly System Circuit (7 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
