< Vehicles With Sport Mode>

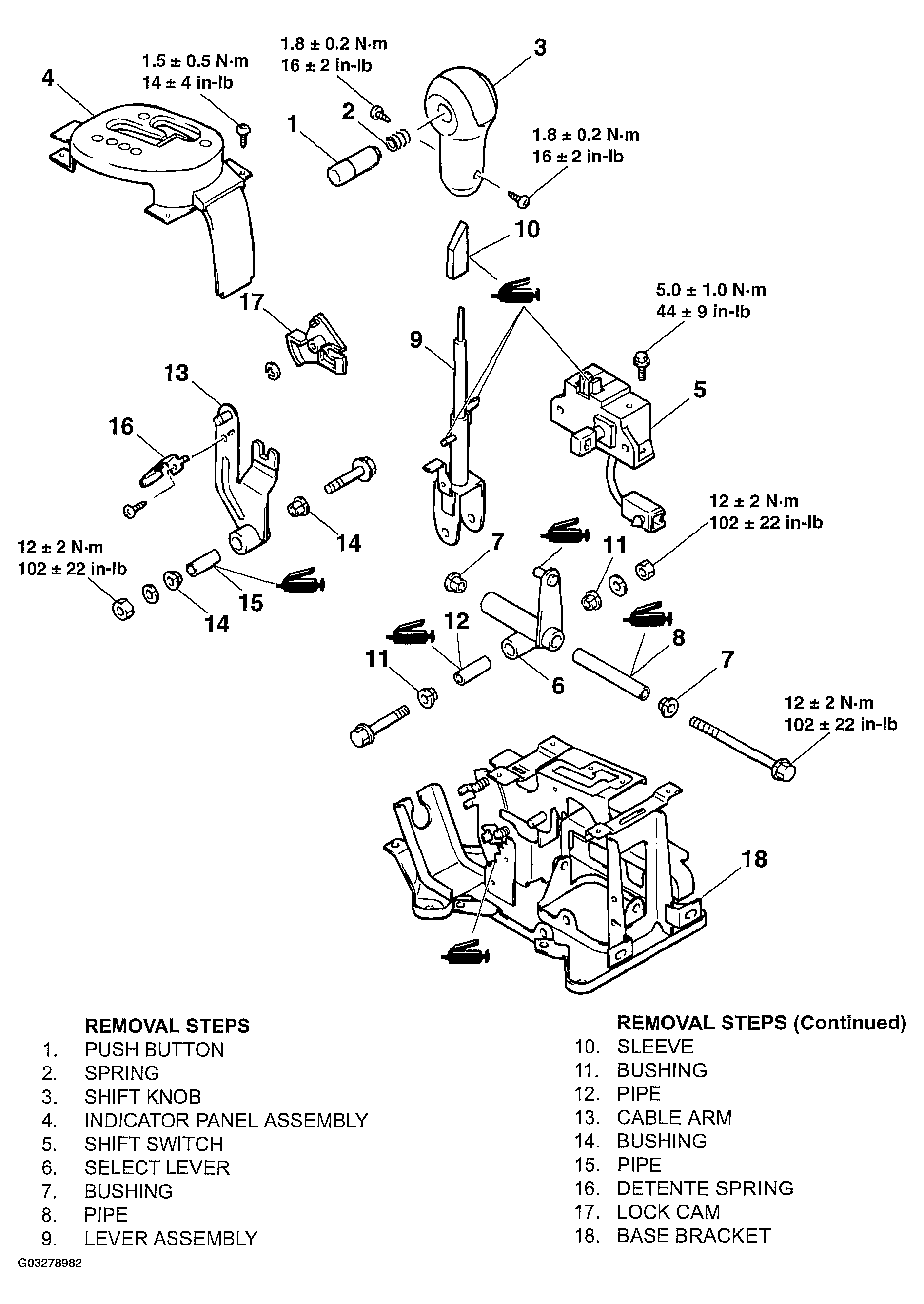

Fig 1: Disassembly And Assembly Of Selector Lever (Vehicles With Sport Mode)
G03278982Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
