Removal And Installation: Notes

Pre-removal and Post-installation Operation

Intake Manifold Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

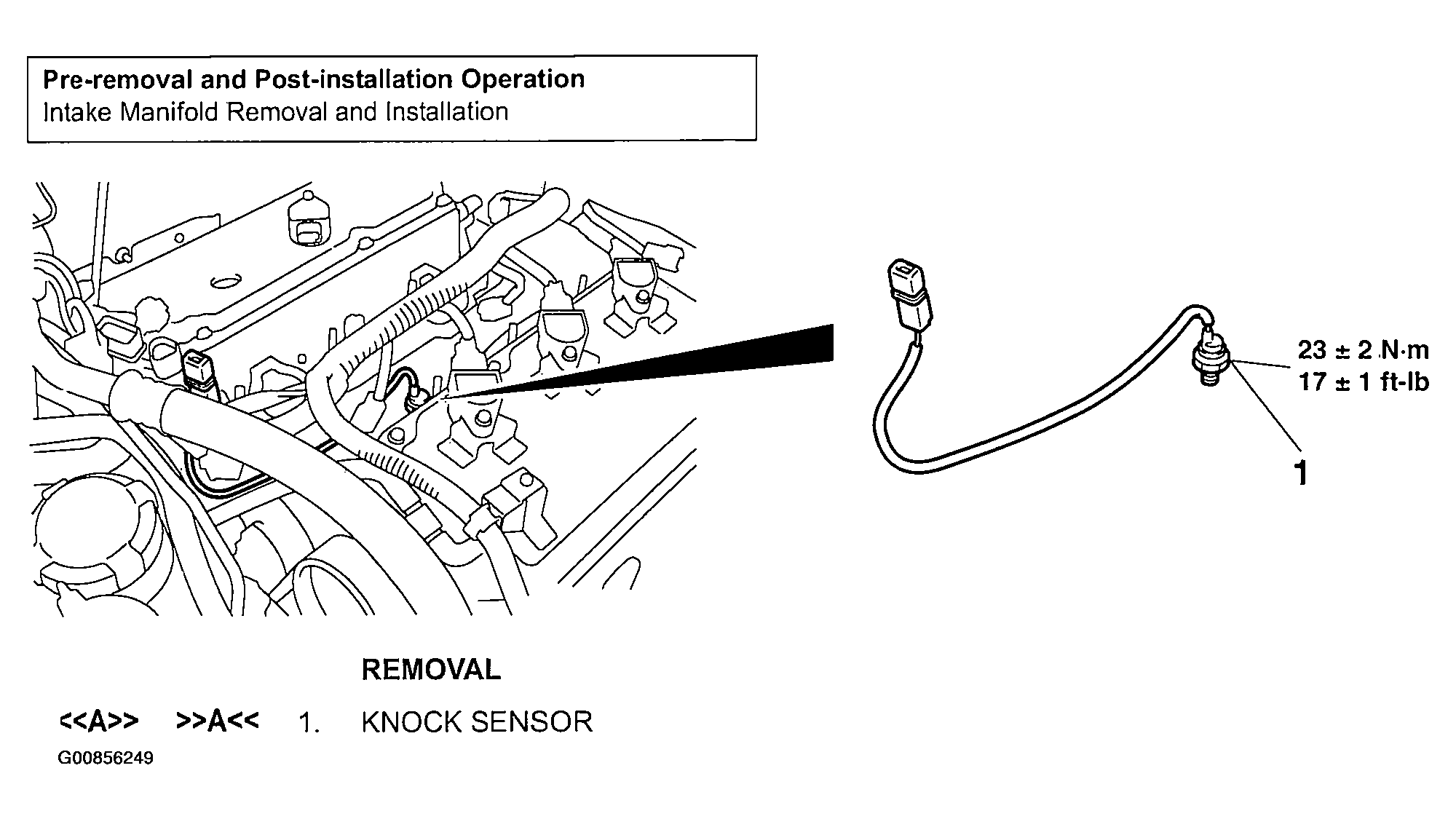

Fig 1: Removing And Installing Knock Sensor
G00856249Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
