Removal And Installation

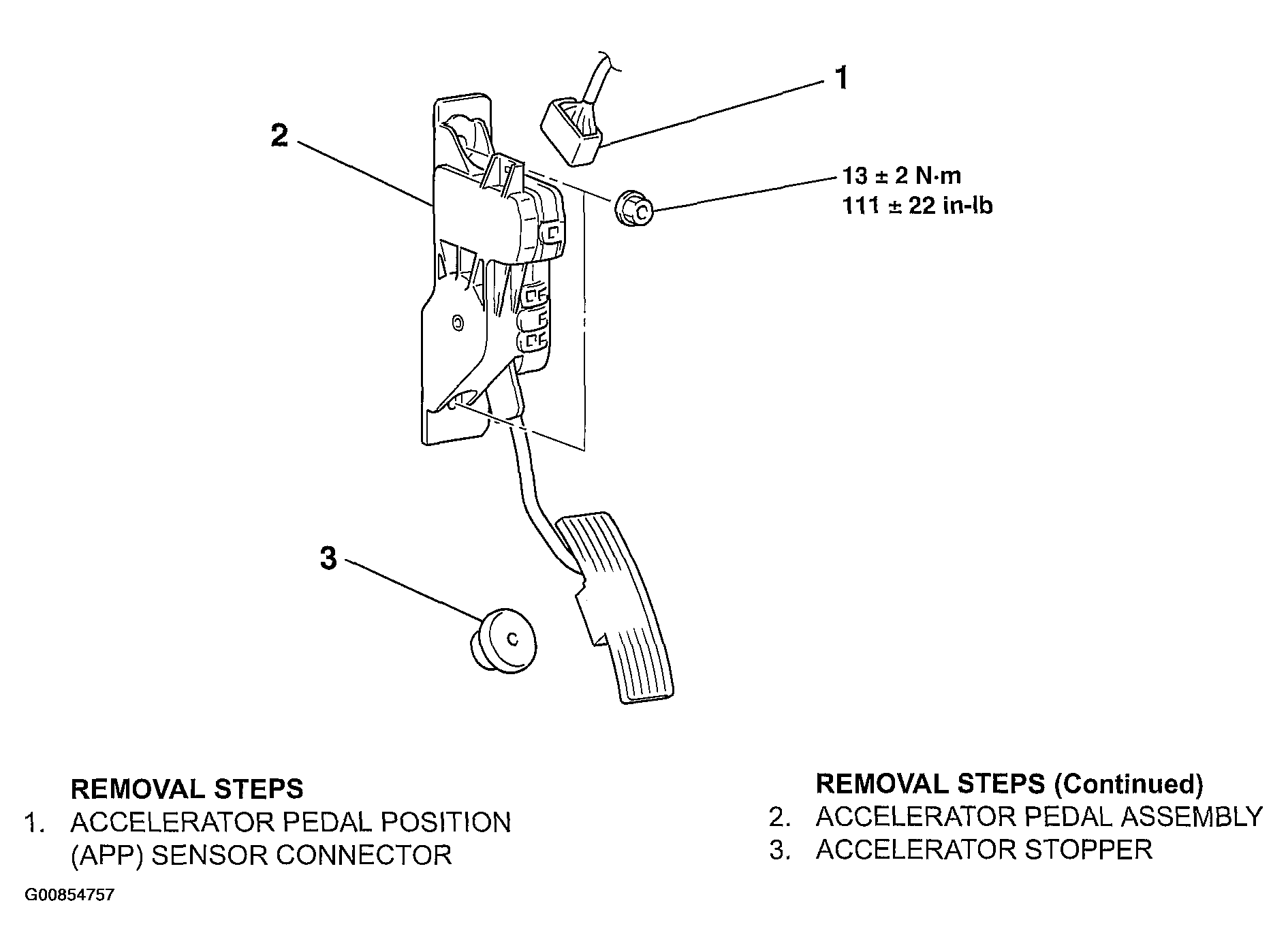

Fig 1: Removing And Installing Accelerator Cable And Pedal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
