Fuel Shut-off Valve Check

Check that the flapper of the fuel shut-off valve opens and closes as shown in the illustration.

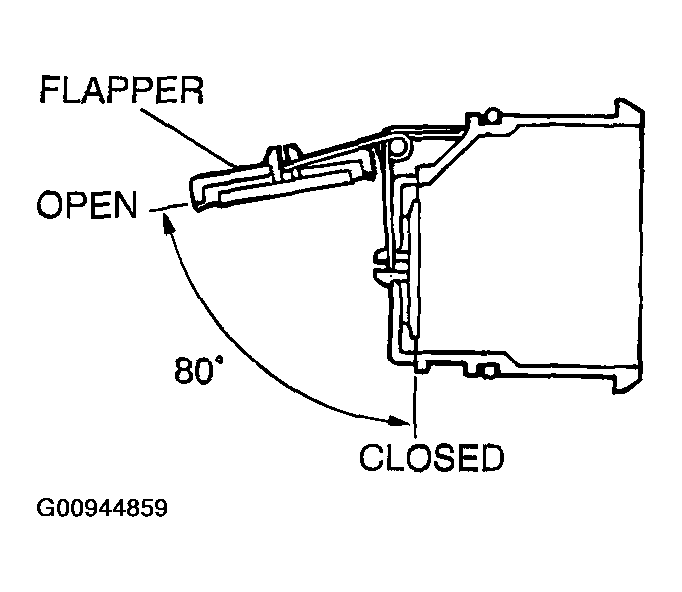

Fig 1: Checking Flapper Of Fuel Shut-Off Valve Opens And Closes
G00944859Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
