INSPECTION PROCEDURE 6: The Neutral Position Learning of the Steering Angular Velocity Sensor is not Detected.: Notes

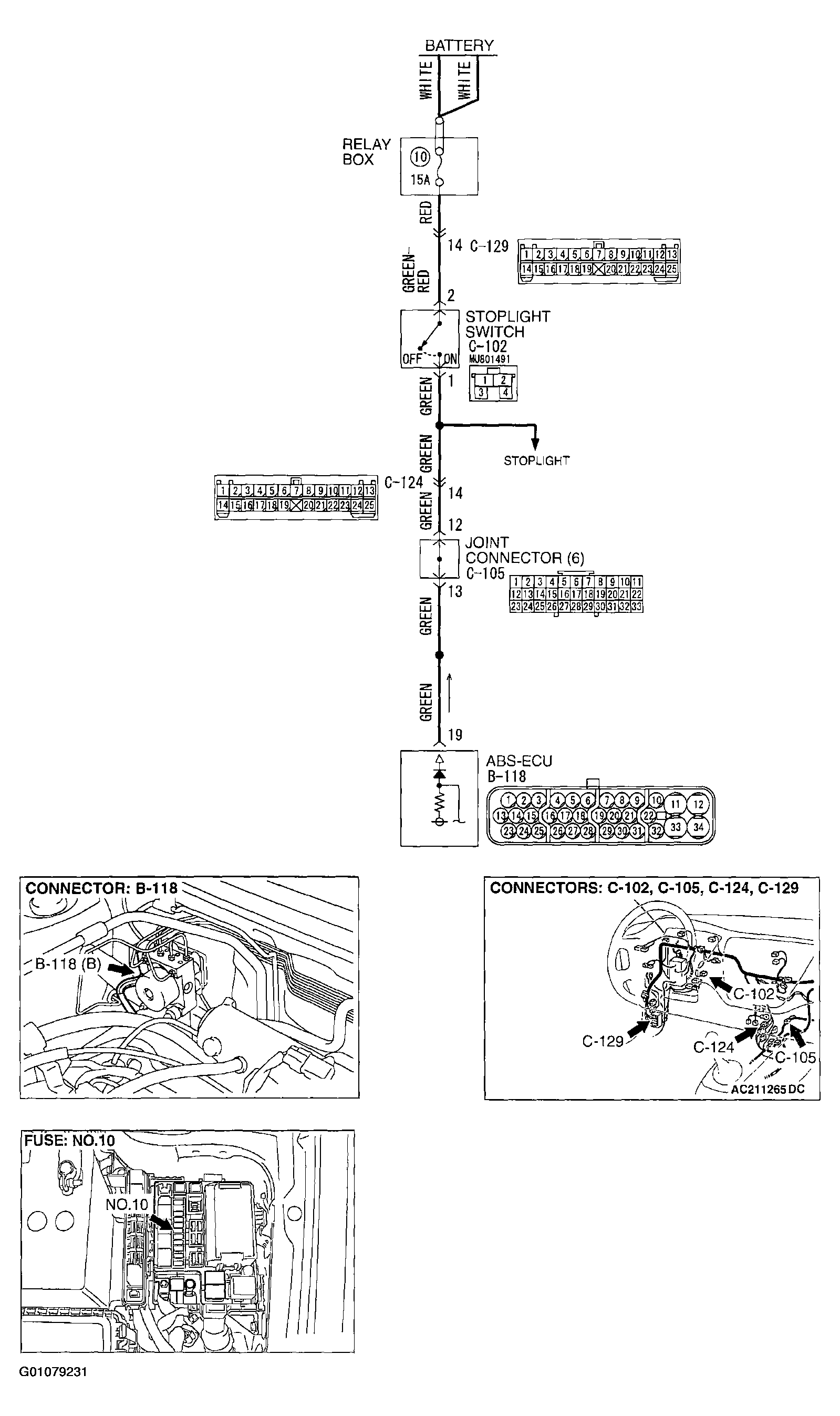

Fig 1: Stoplight Switch Circuit Diagram And Connectors
G01079231Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
