>> D << Synchronizer Spring Installation

Install the synchronizer spring to the illustrated position of the synchronizer ring and outer synchronizer ring.

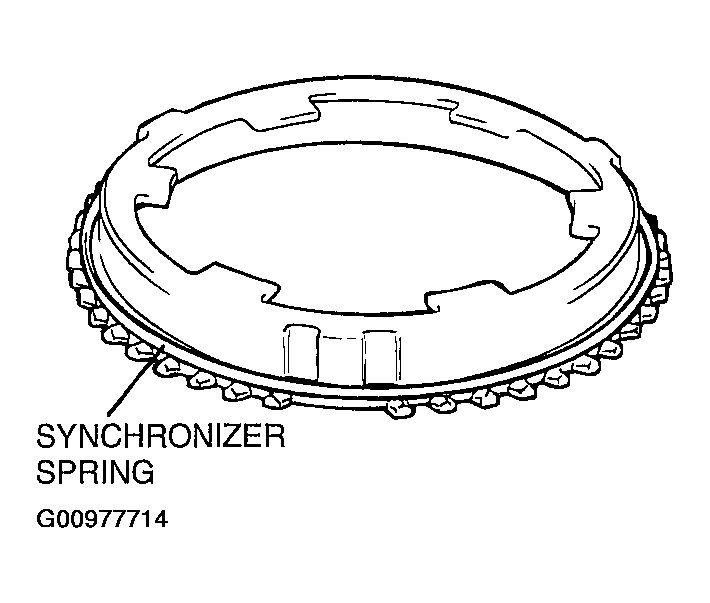

Fig 1: Installing Synchronizer Spring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Installing Synchronizer Outer Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
