Service Specifications

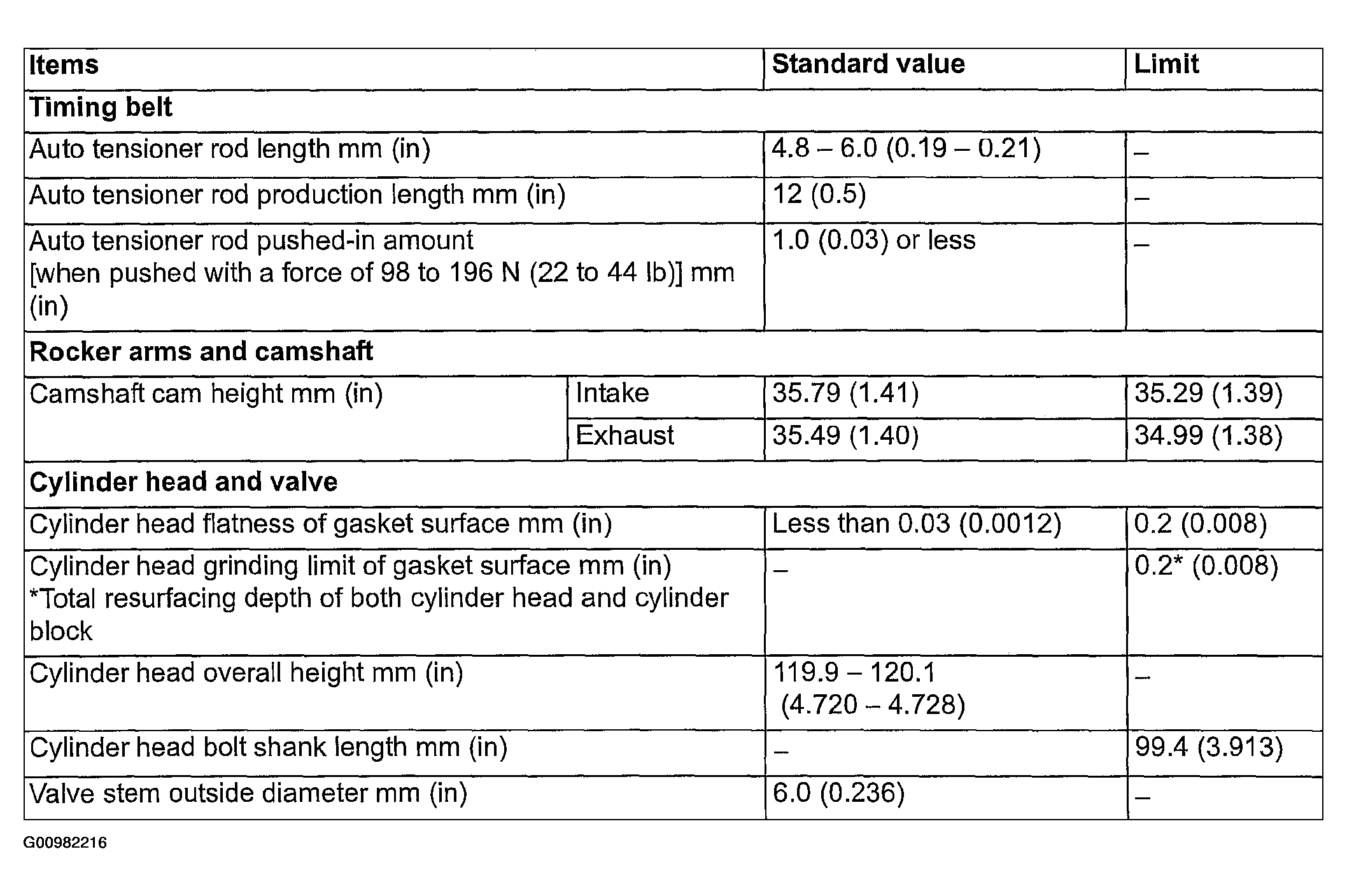

Fig 1: Identifying Service Specifications
G00982216Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

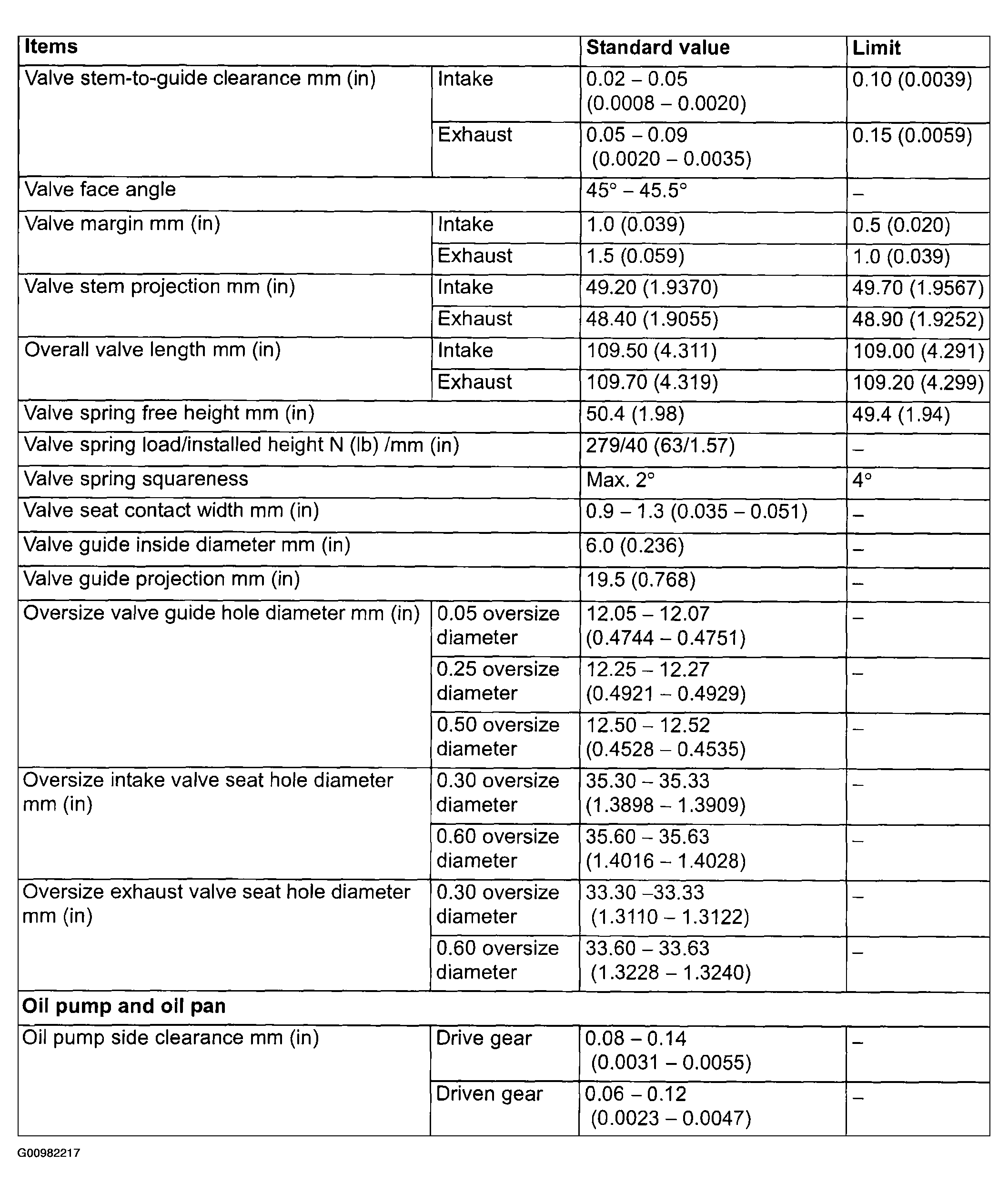

Fig 2: Identifying Service Specifications
G00982217Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

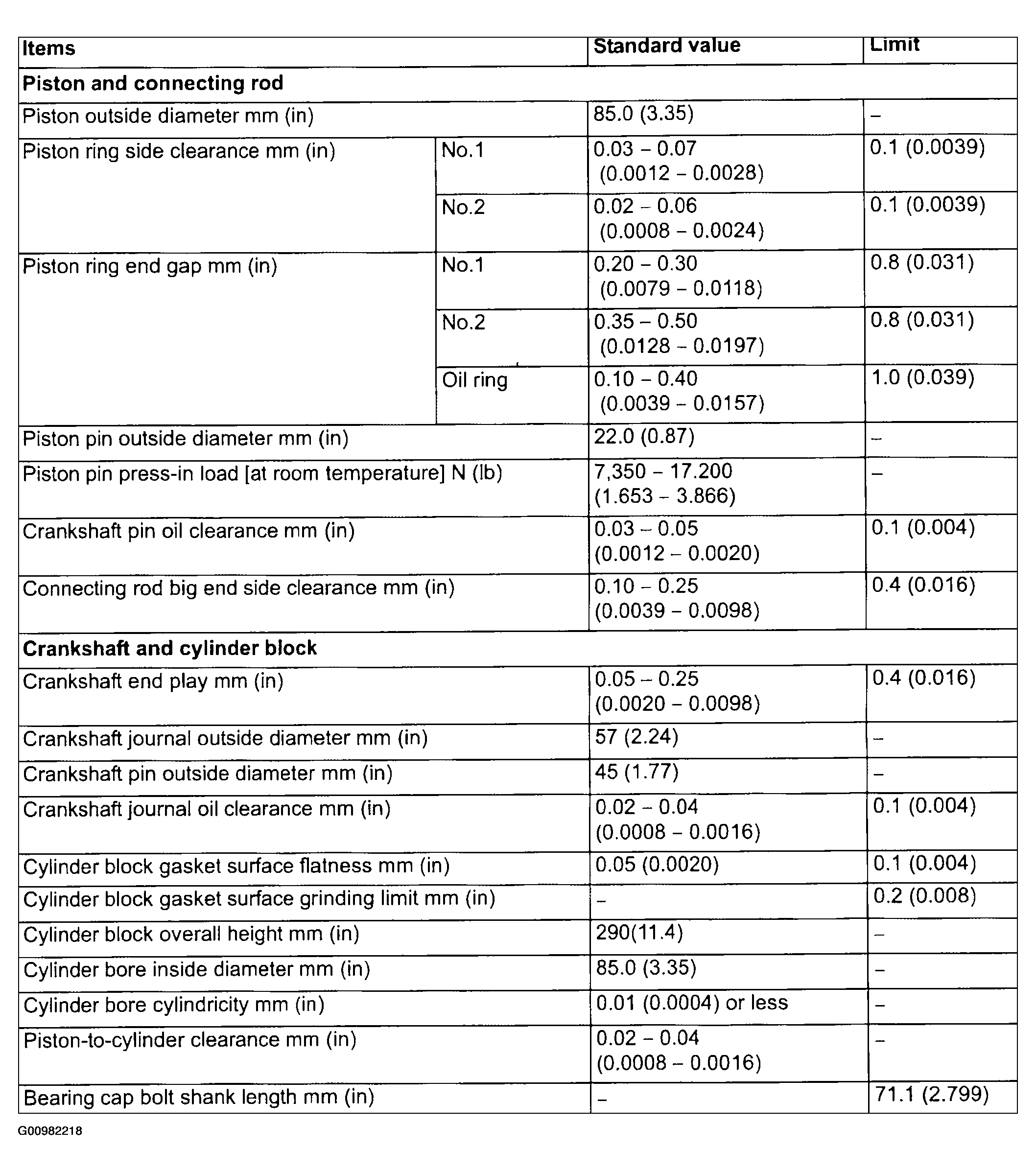

Fig 3: Identifying Service Specifications
G00982218Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
