Power Plant Mount - Evolution: General Description

Inertia principal axes system is incorporated into the engine mount system.

• The liquid-filled mount system have been adopted for engine mounting and transaxle mounting to improve ride feeling by optimizing the insulator.
• Installation of roll stopper in the upper area has reduced engine rolling. Furthermore, enlargement of insulator diameter has reduced idle vibration.

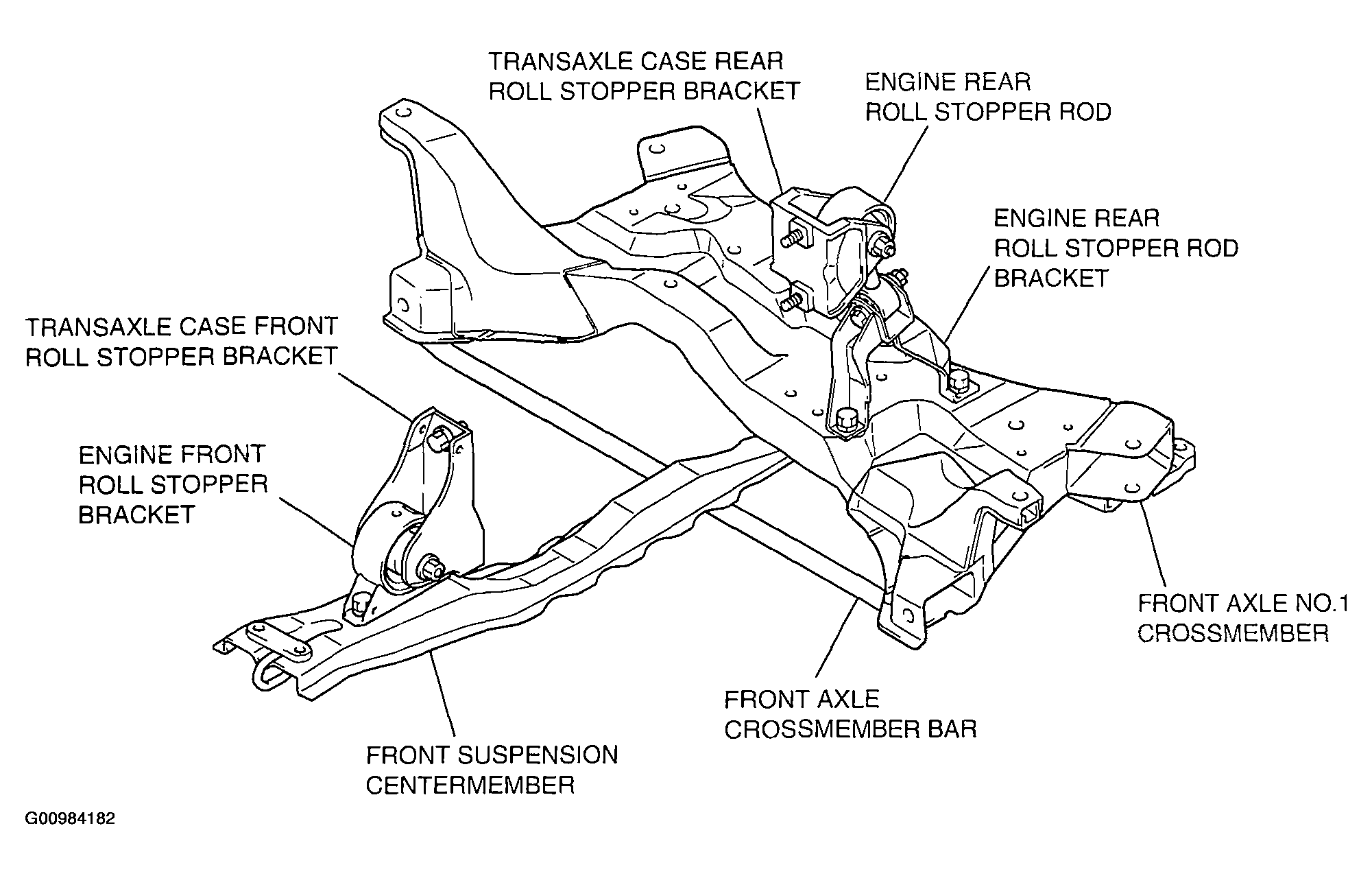

Fig 1: Identifying Construction Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

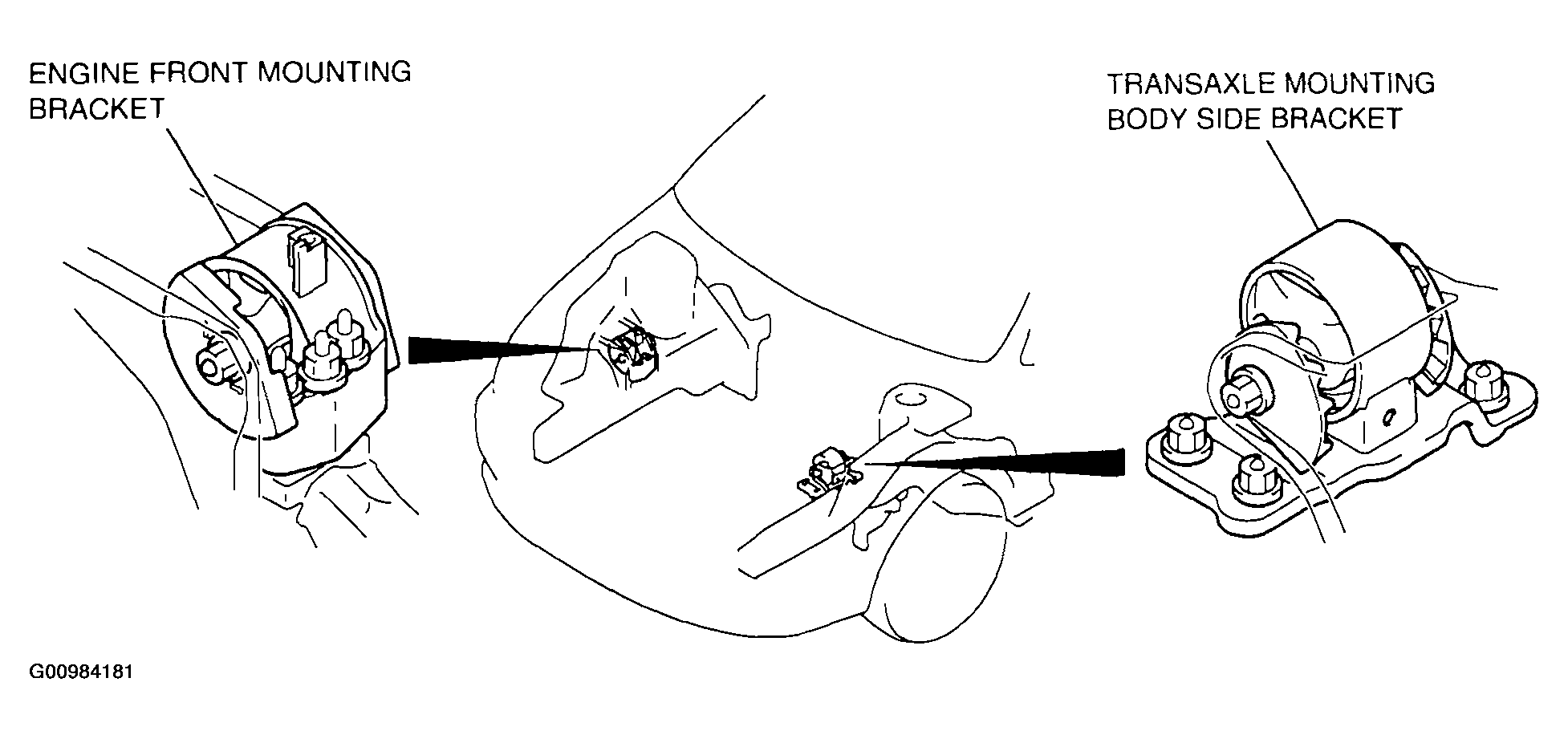

Fig 2: Identifying Construction Diagram (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
