Automatic Transaxle: General Description: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

The A/T come in two models, namely, F4A42 and F4A51.

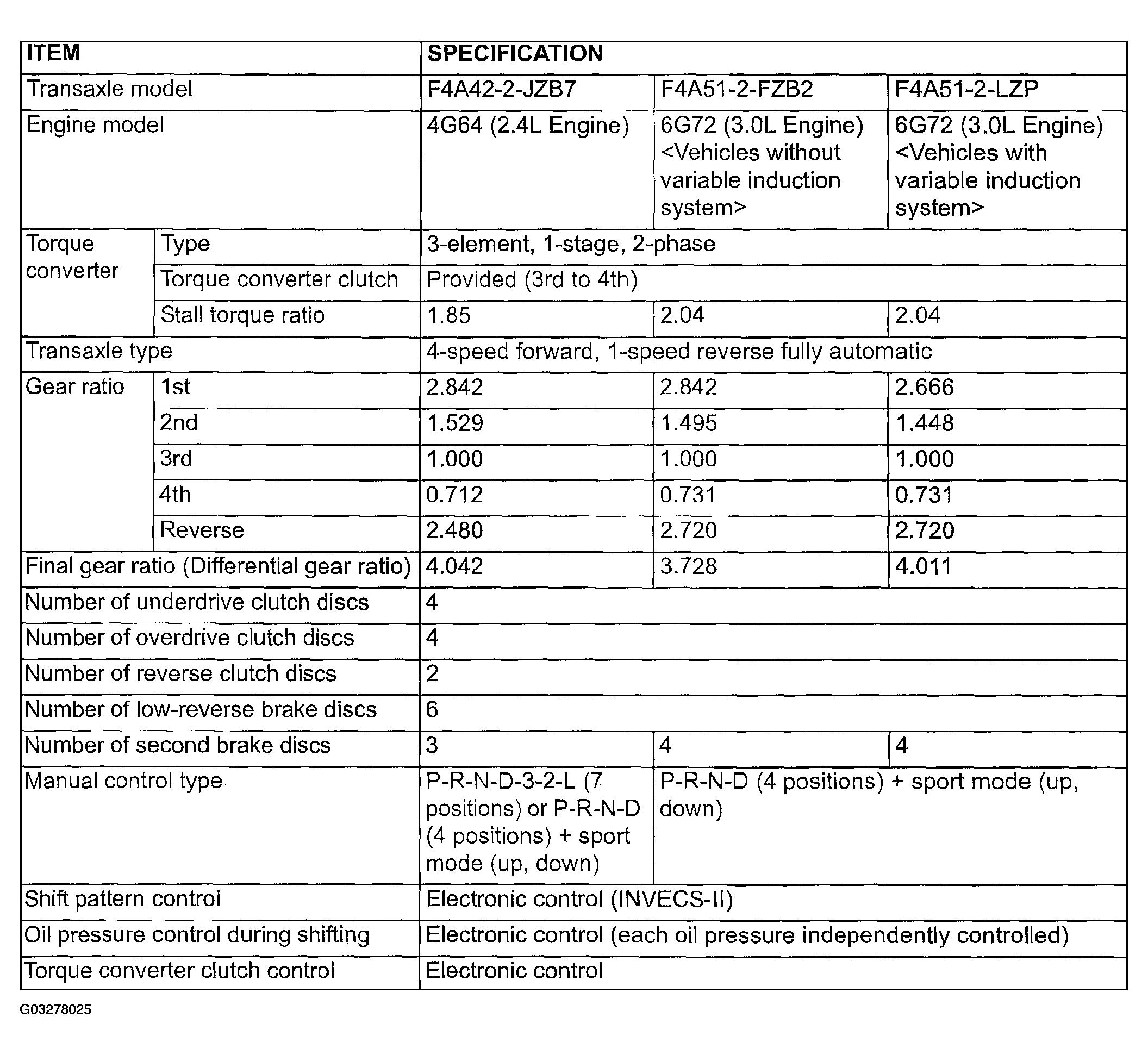

Fig 1: Automatic Transaxle Specifications
G03278025Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
