Transaxle Control: Inspection

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

Check the cable assembly for function and for damage.

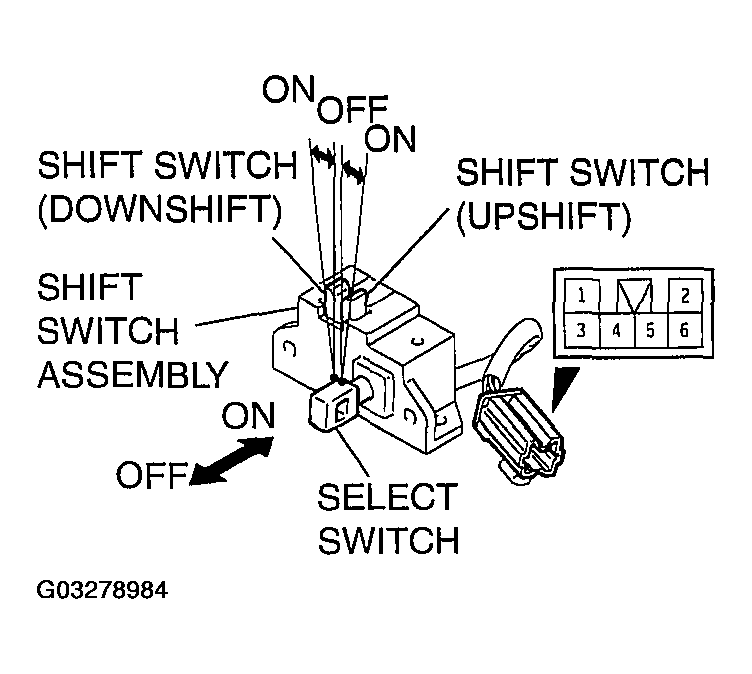

Fig 1: Identifying Shift Switch Positions And Terminals
G03278984Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

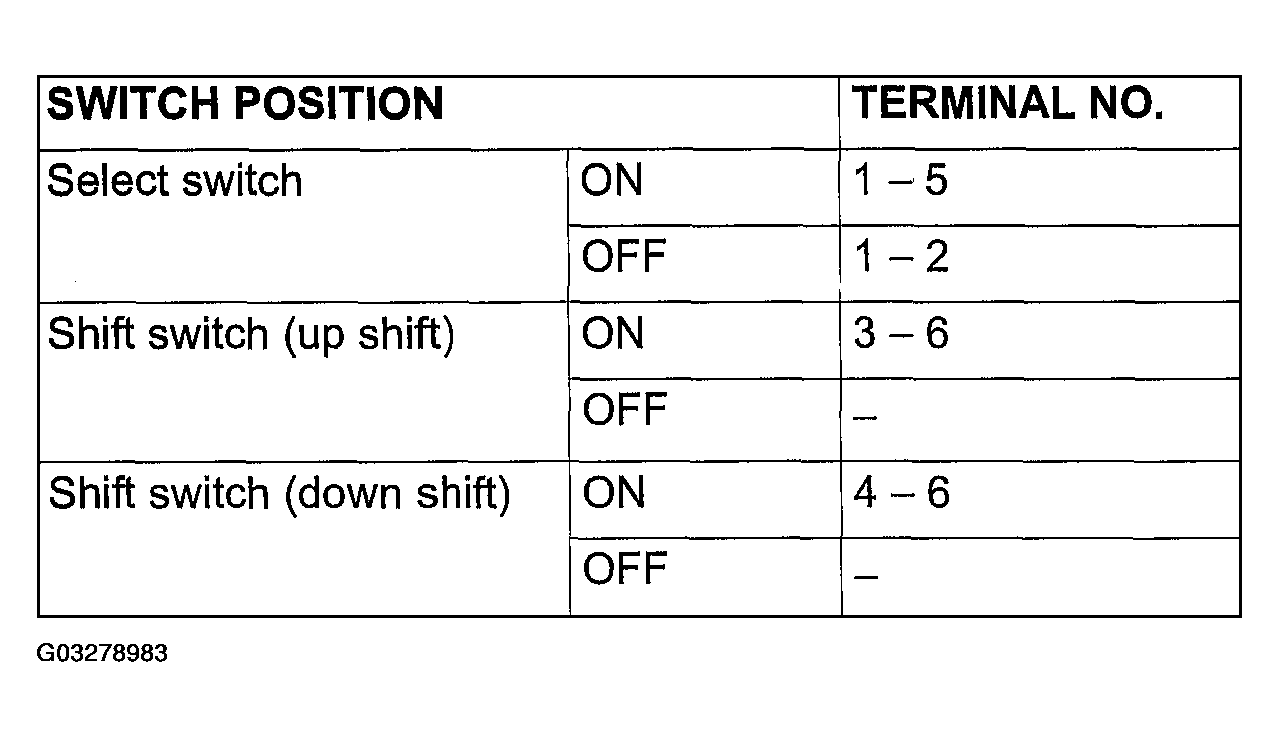

Fig 2: Shift Switch Assembly Continuity Chart
G03278983Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
