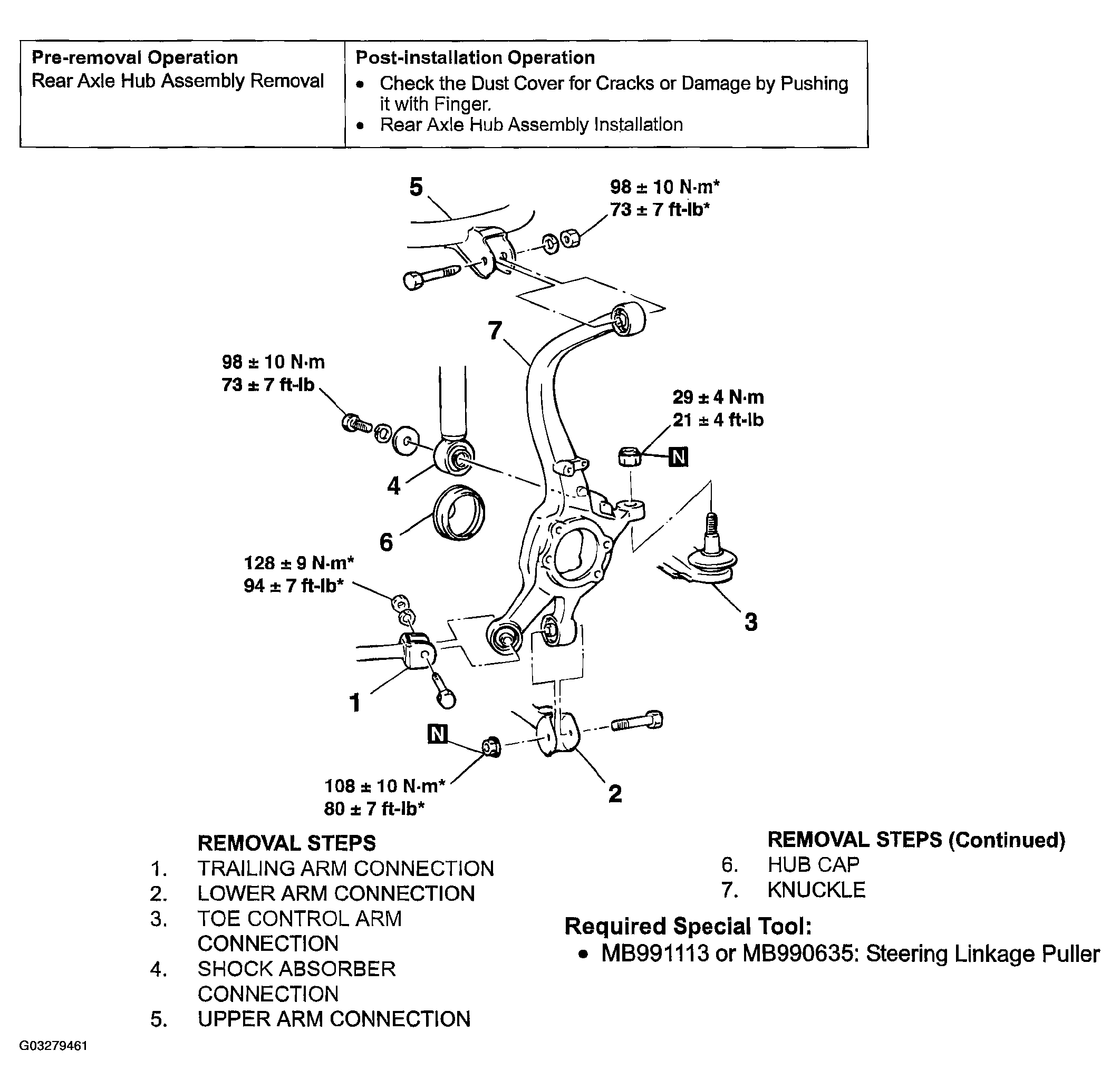

Removal And Installation: Notes
WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
- MB991113 or MB990635: Steering Linkage Puller
