Inspection Procedure Using An Oscilloscope: Notes

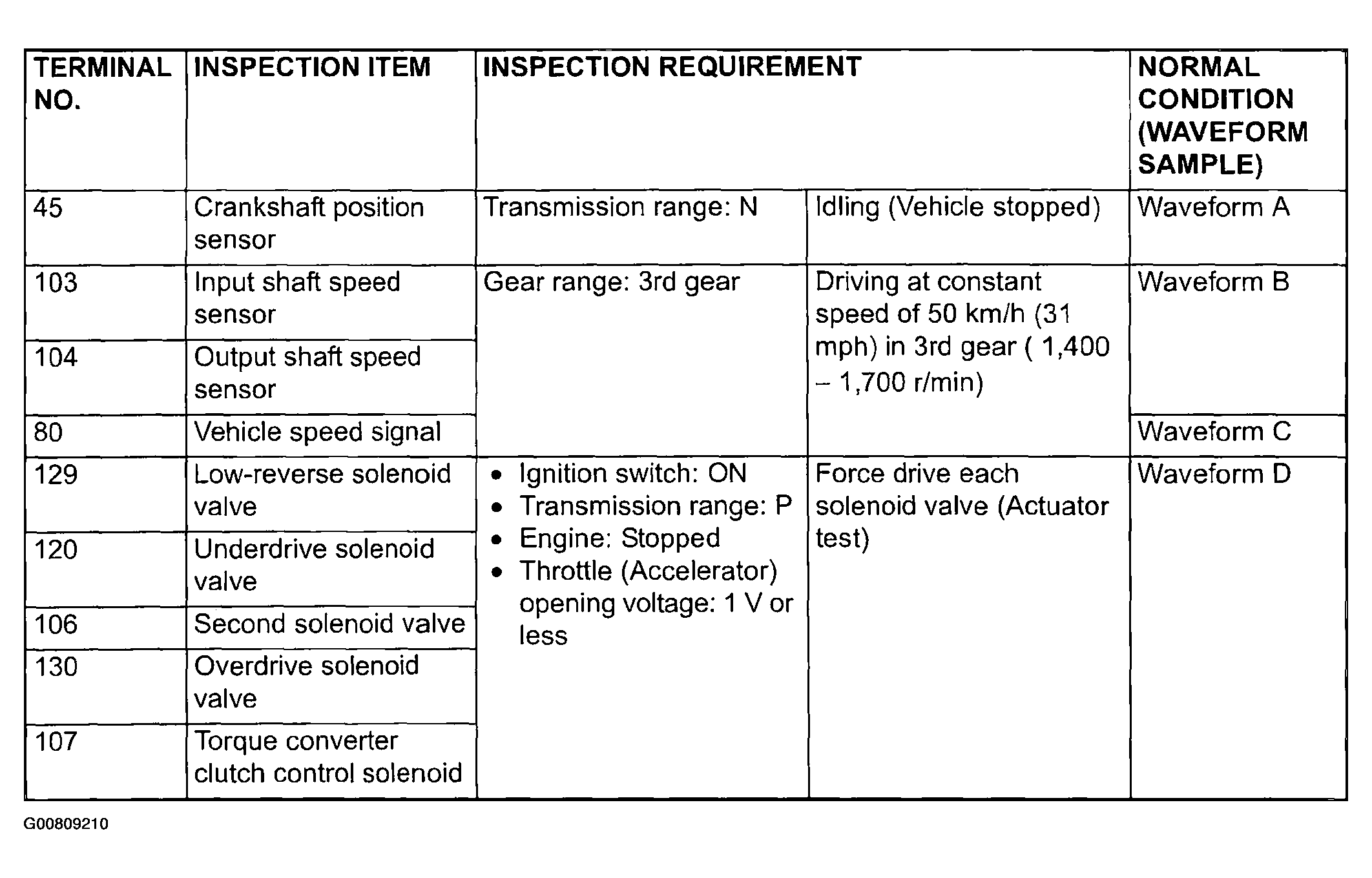

Fig 1: Inspection Procedure Using Oscilloscope
G00809210Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
