A/T Control Component Layout

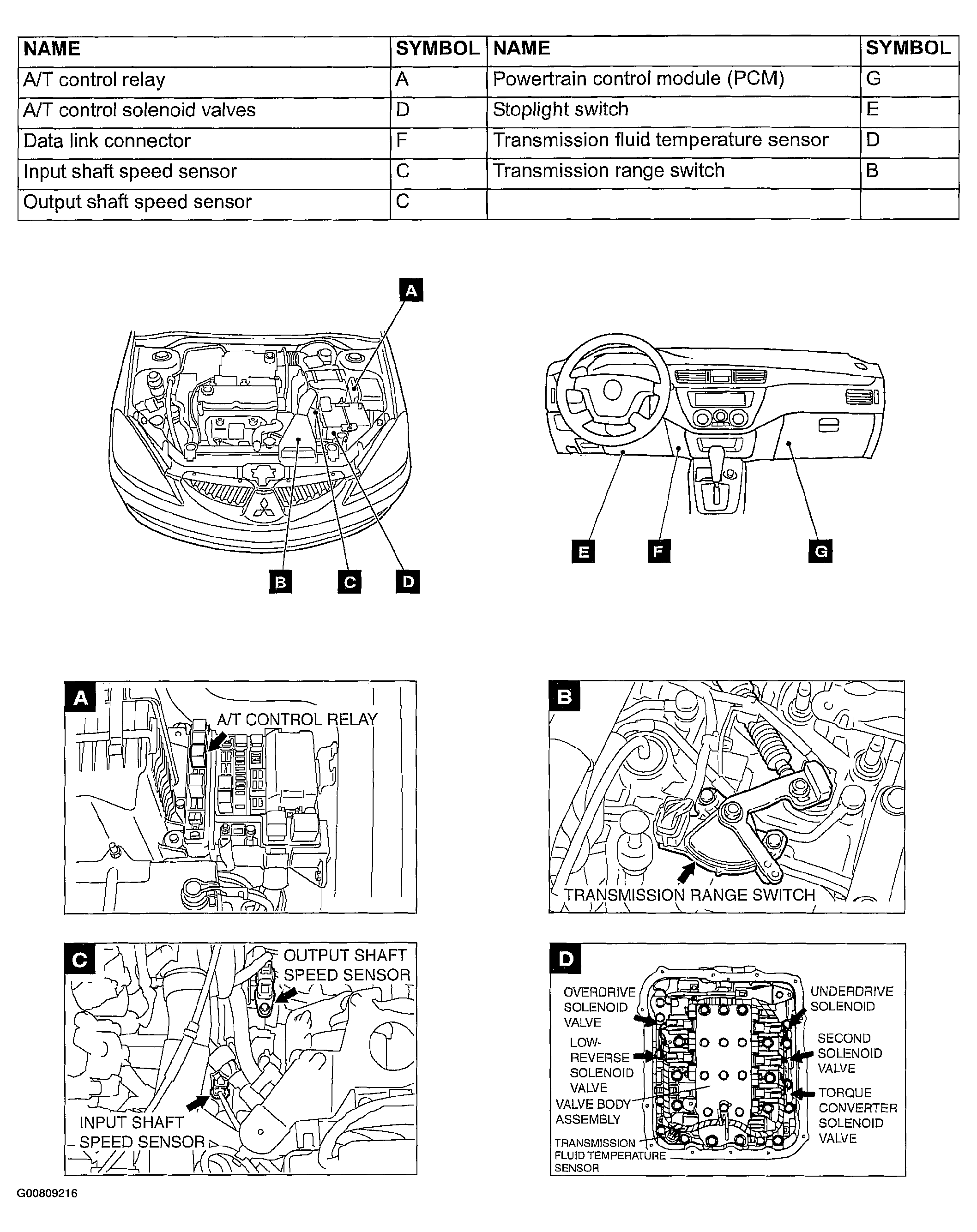

Fig 1: Identifying A/T Control Components Layout (1 Of 2)
G00809216Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

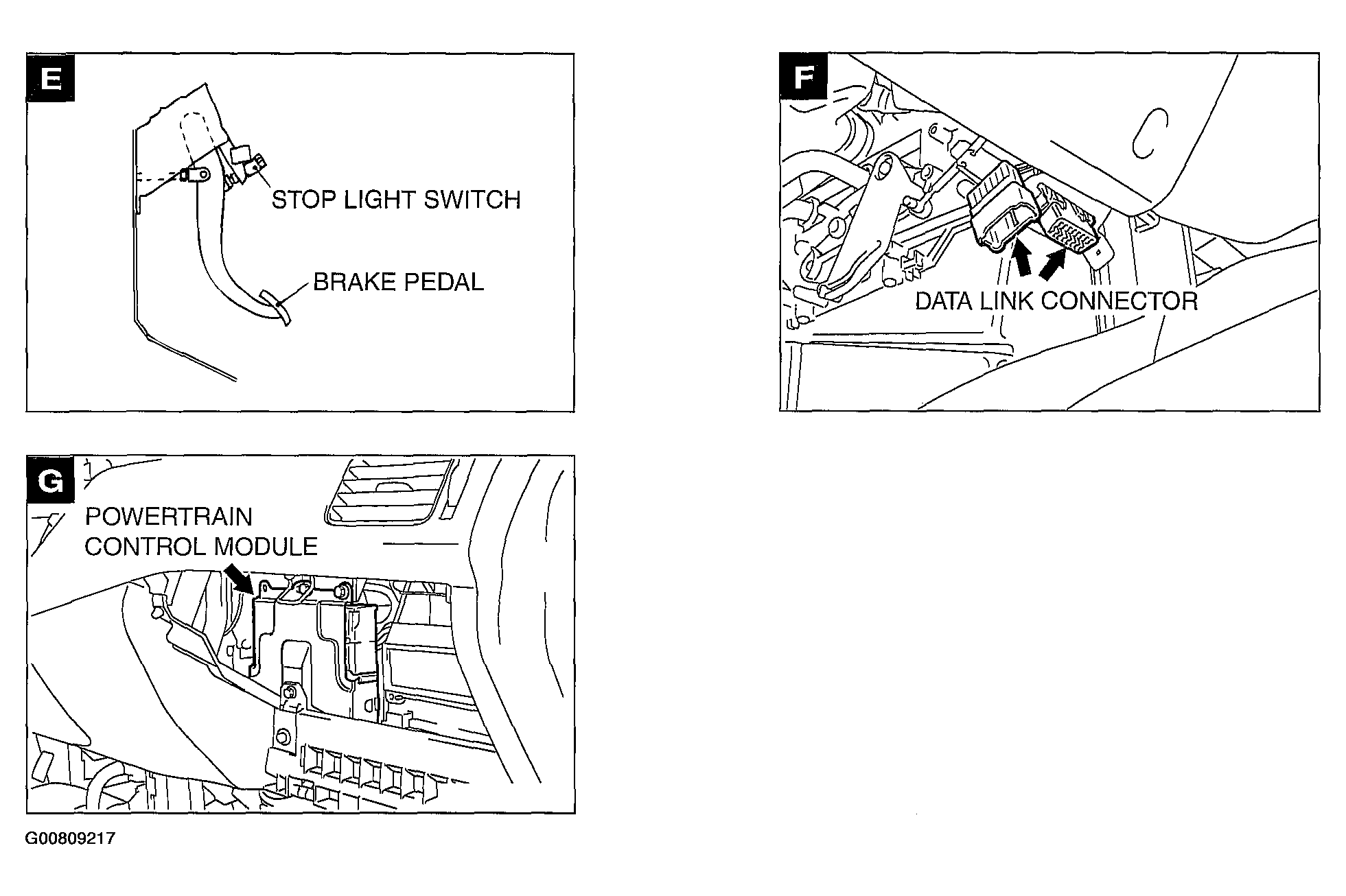

Fig 2: Identifying A/T Control Components Layout (2 Of 2)
G00809217Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
