Disassembly And Assembly

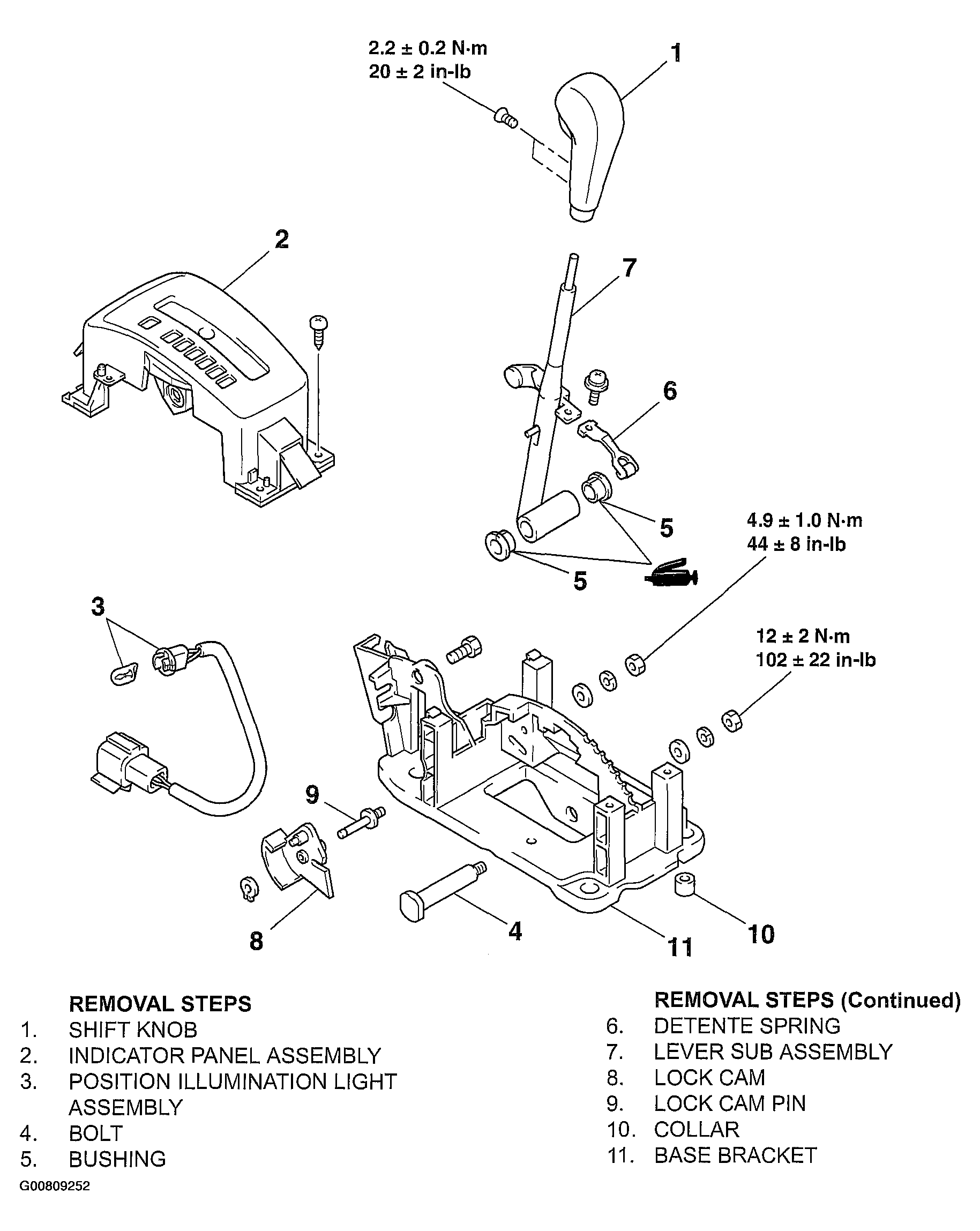

Fig 1: Exploded View Of Transaxle Manual Control Lever Components
G00809252Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
