Leveling Valve Check

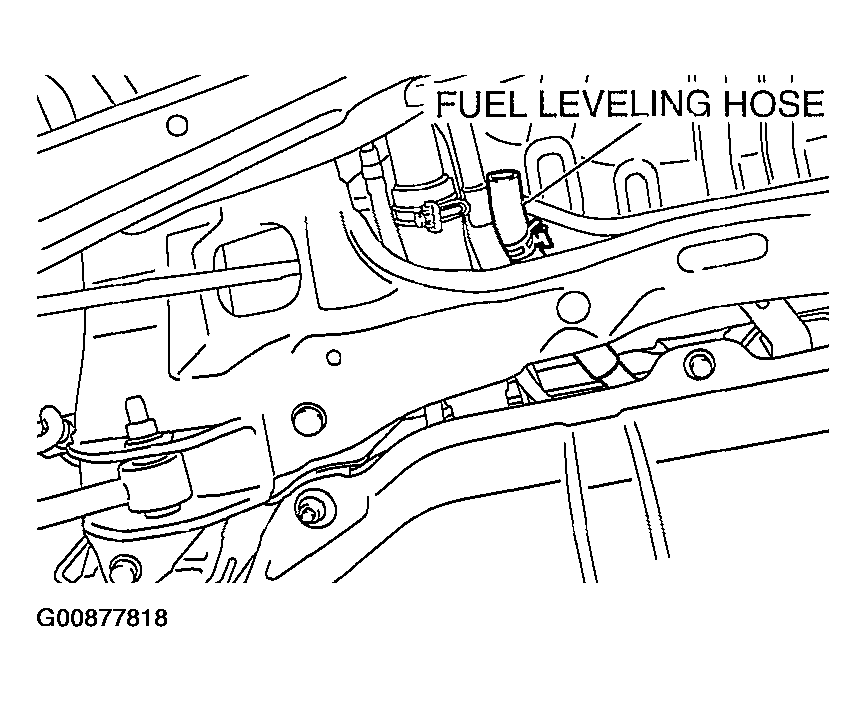

- Place a drain pan, and disconnect the fuel leveling hose at pipe side.NOTE: If fuel leaks from the fuel leveling hose at this stage, the leveling valve may be defective.
- Open the fuel tank filler cap, and fill the fuel tank up.
- If fuel does not leak from the fuel tank filler leveling hose with the fuel tank full, the leveling valve is normal. If not so, the leveling valve may be defective. Lower the fuel tank from the vehicle and replace the valve.
- Reconnect the fuel leveling hose at the pipe side.
