Keyless Entry

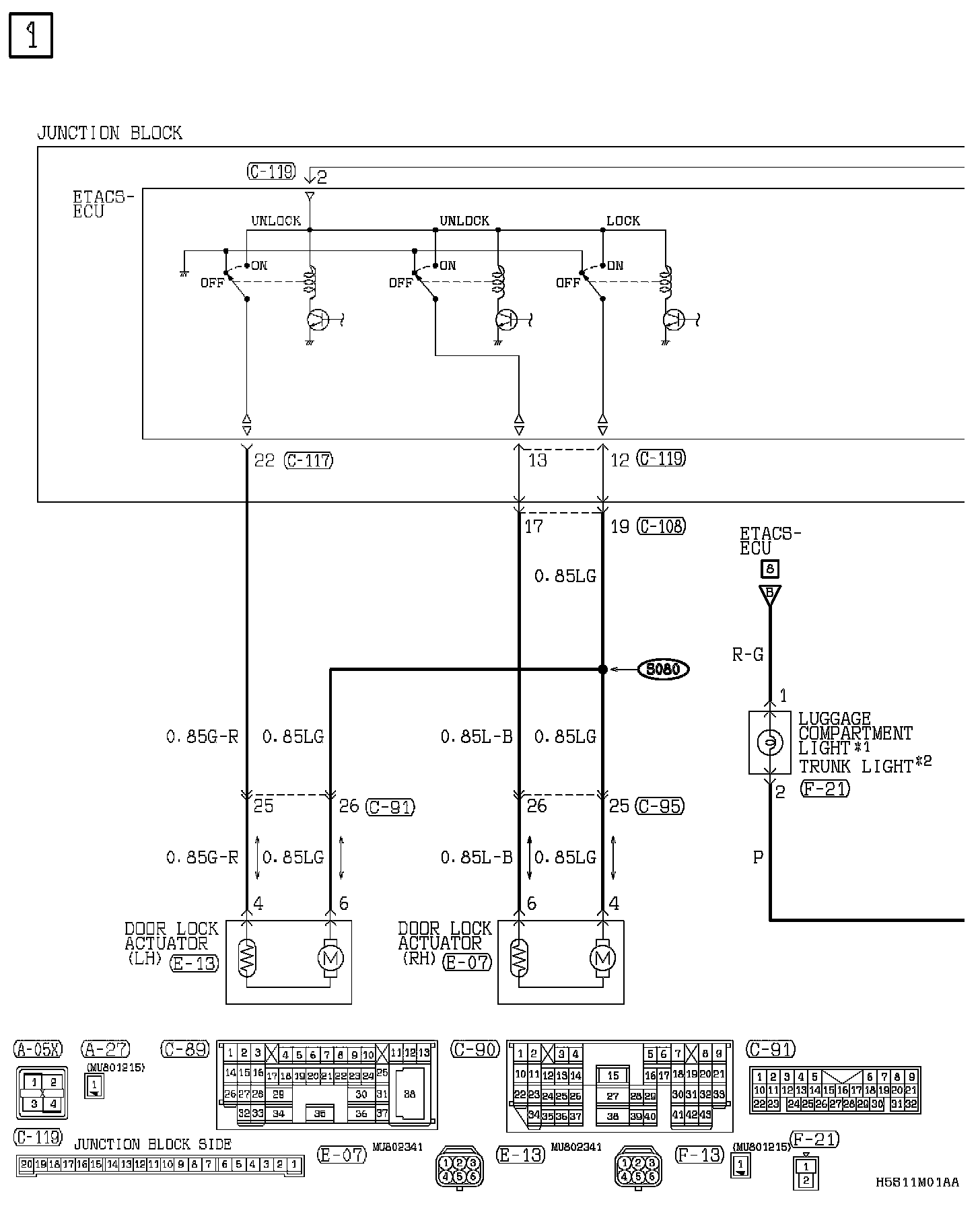

Central Door Locking System <Vehicles With Keyless Entry System (without Theft-alarm System)> Part 1:

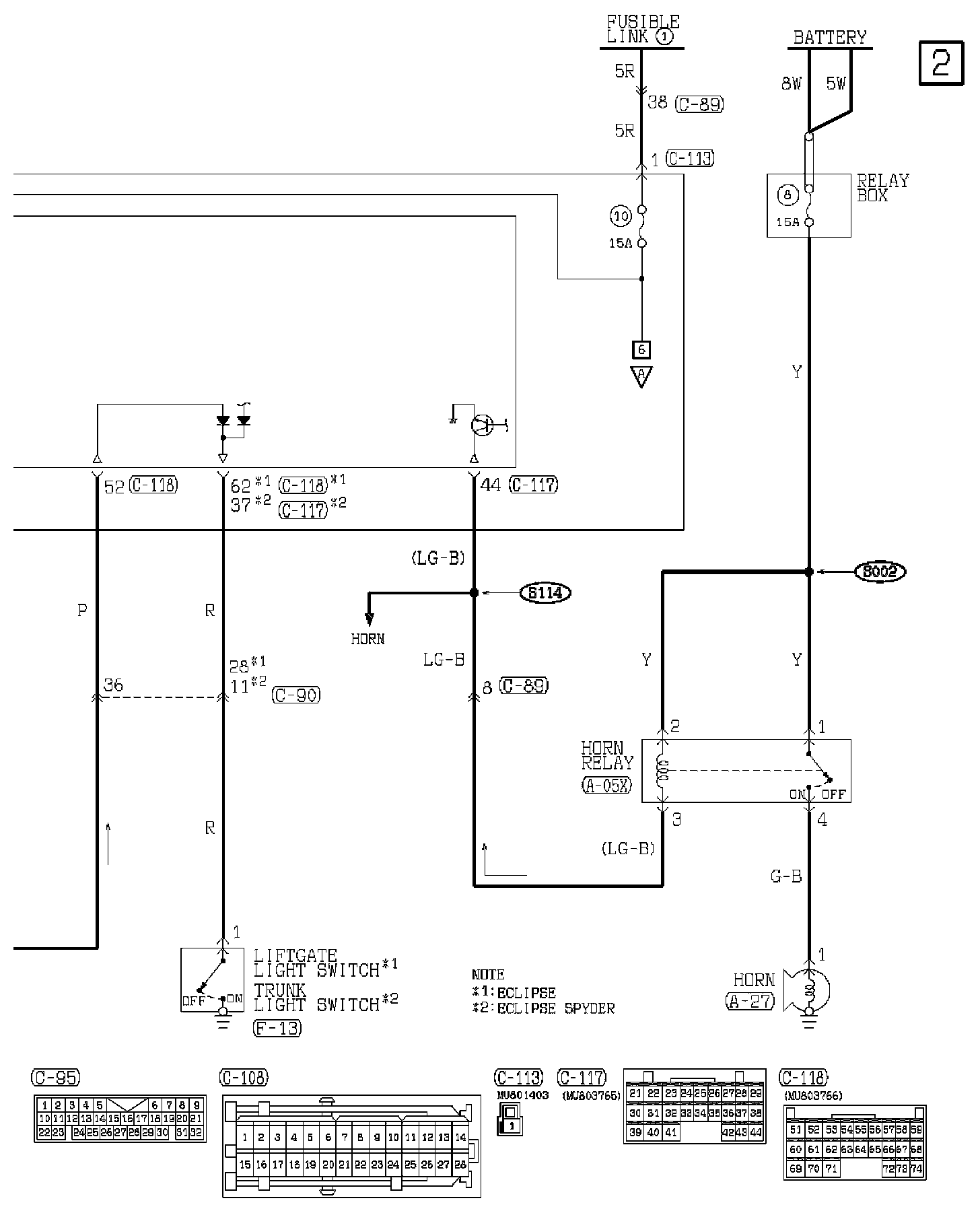

Central Door Locking System <Vehicles With Keyless Entry System (without Theft-alarm System)> Part 2:

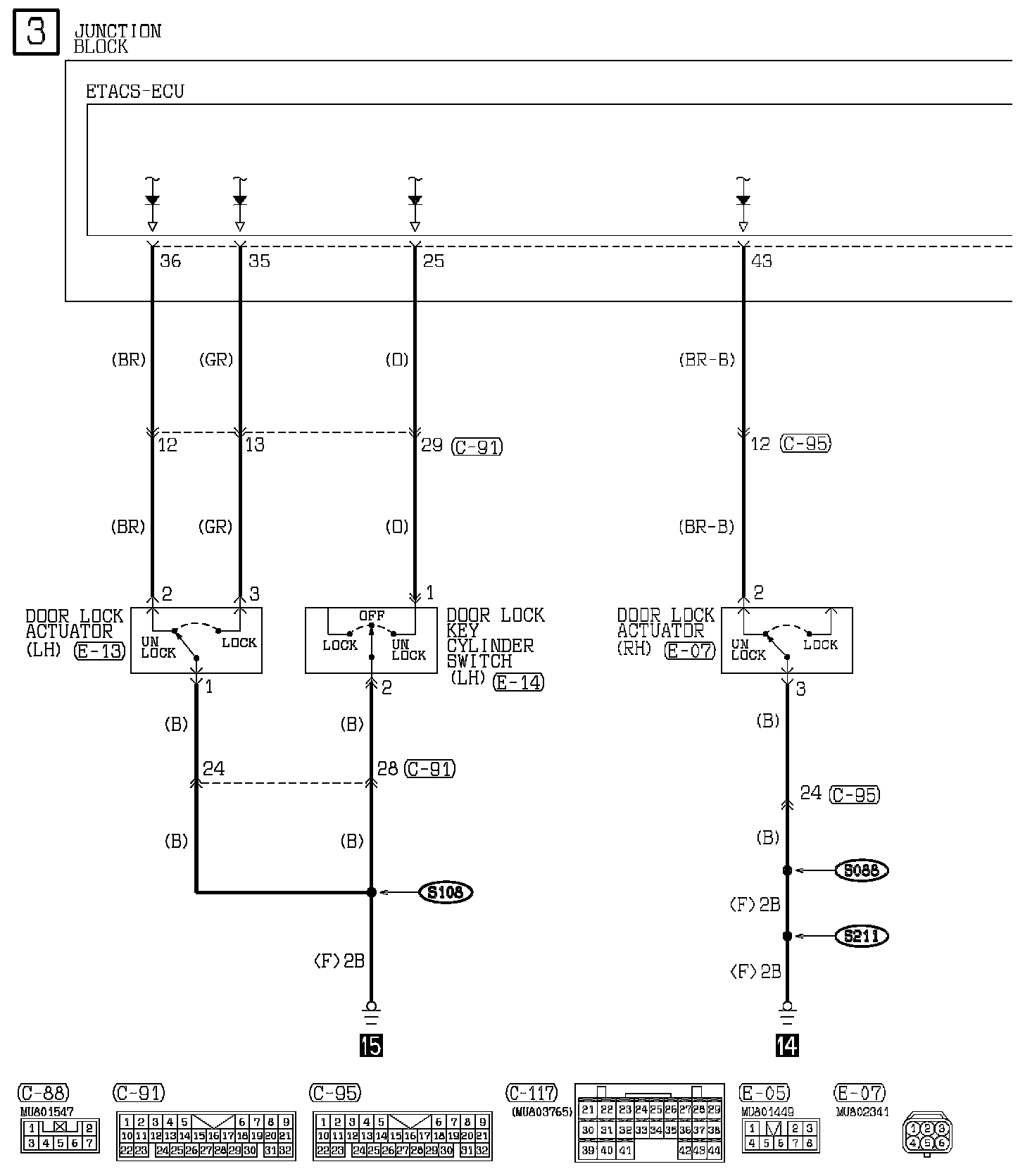

Central Door Locking System <Vehicles With Keyless Entry System (without Theft-alarm System)> Part 3:

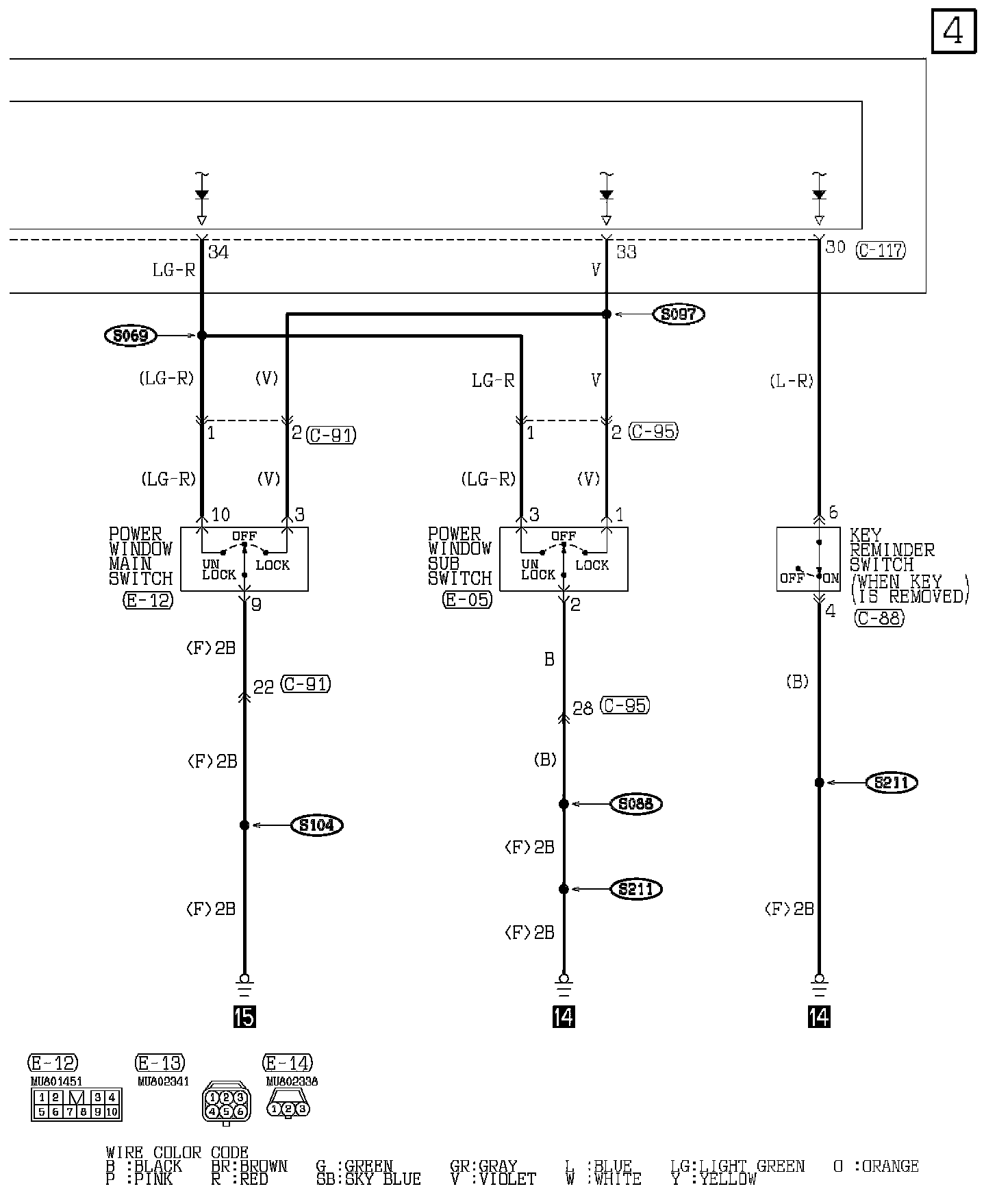

Central Door Locking System <Vehicles With Keyless Entry System (without Theft-alarm System)> Part 4:

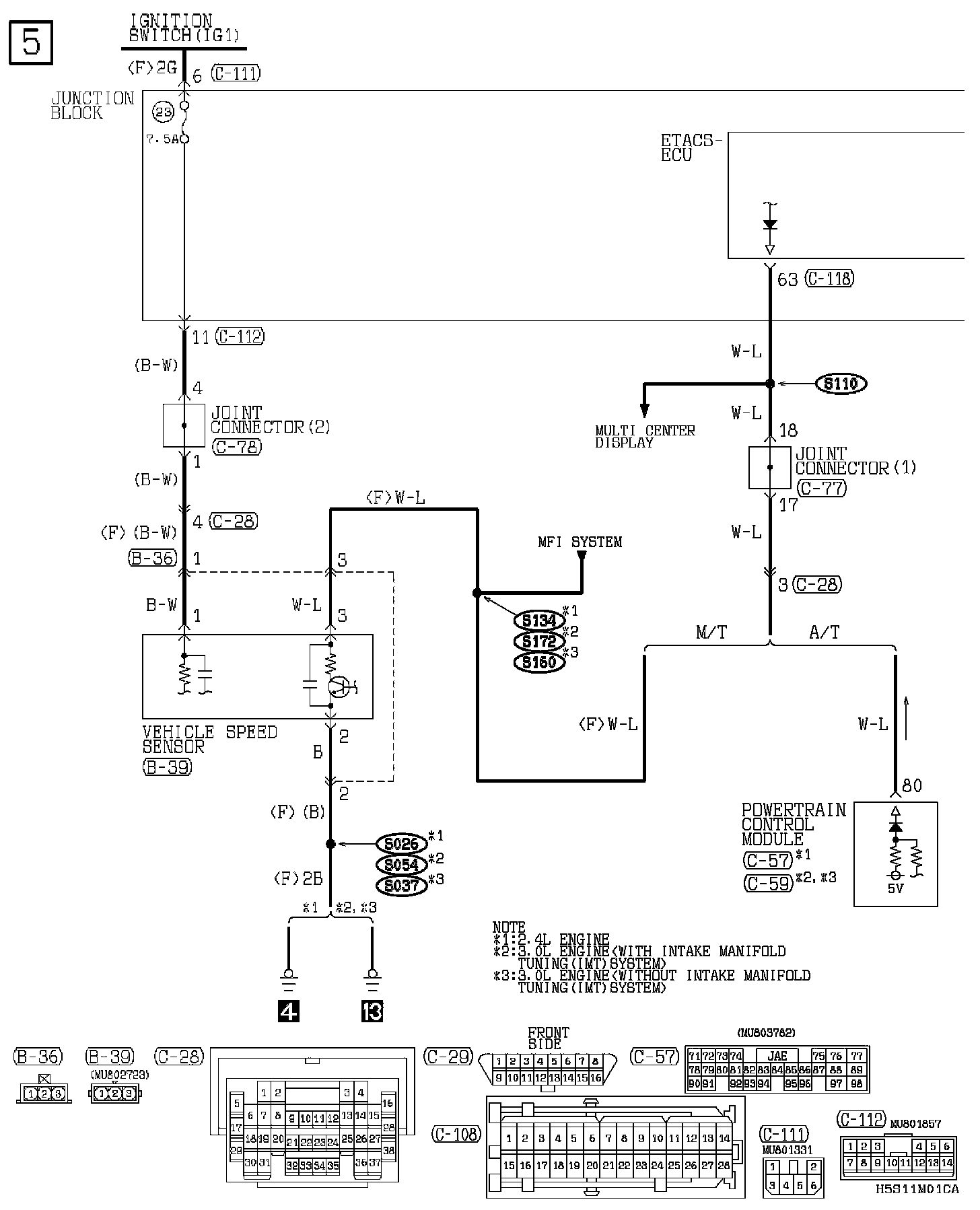

Central Door Locking System <Vehicles With Keyless Entry System (without Theft-alarm System)> Part 5:

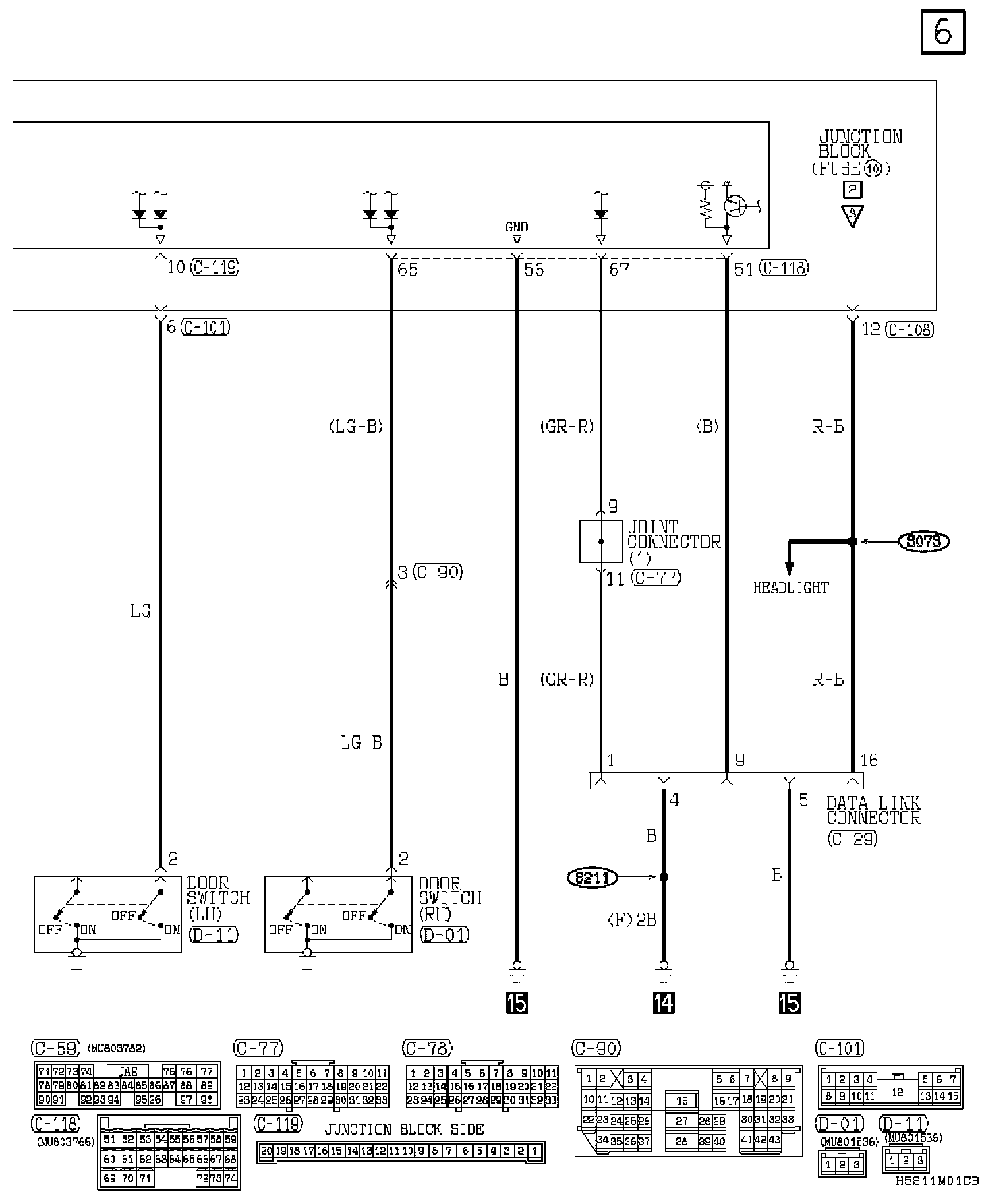

Central Door Locking System <Vehicles With Keyless Entry System (without Theft-alarm System)> Part 6:

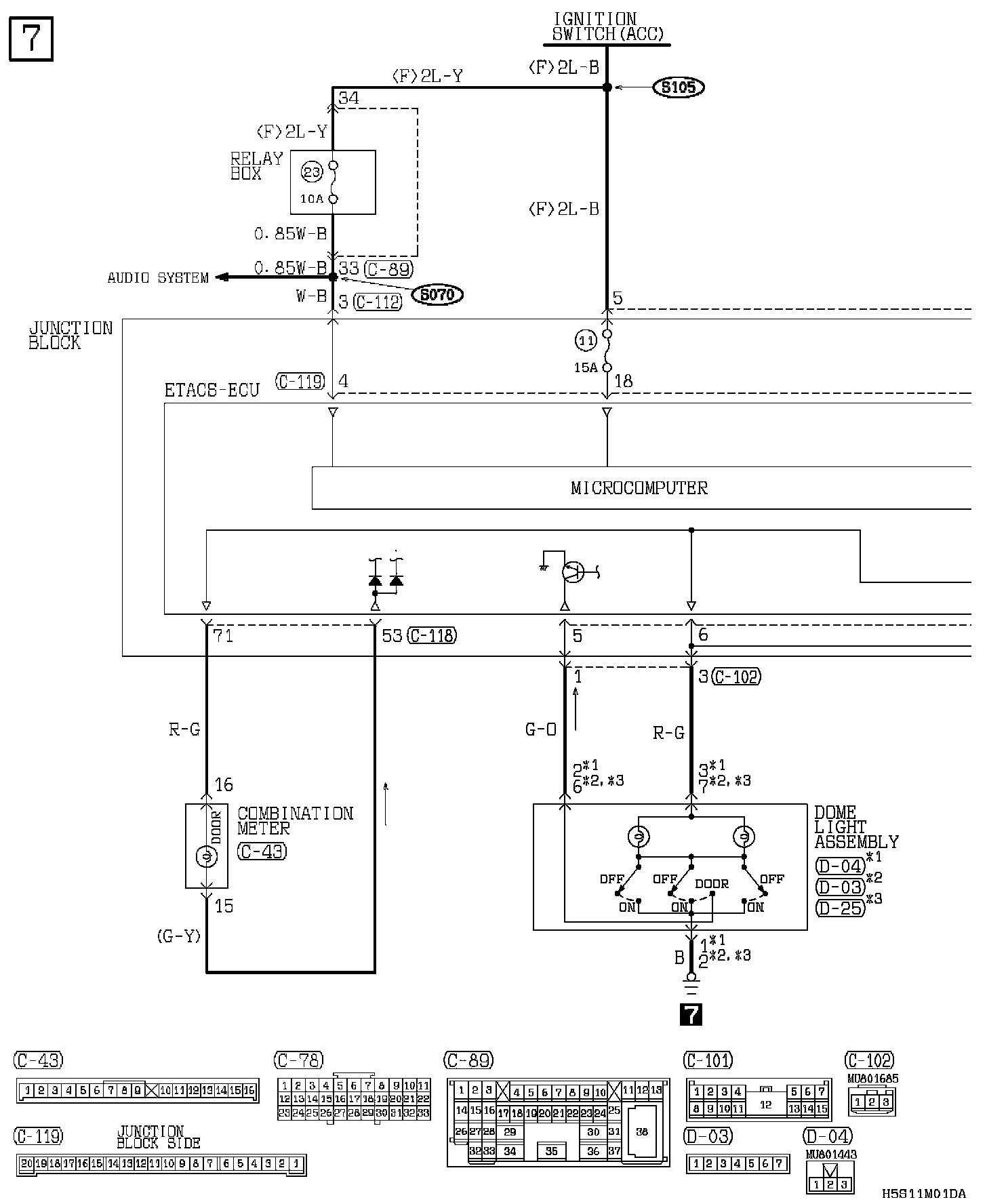

Central Door Locking System <Vehicles With Keyless Entry System (without Theft-alarm System)> Part 7:

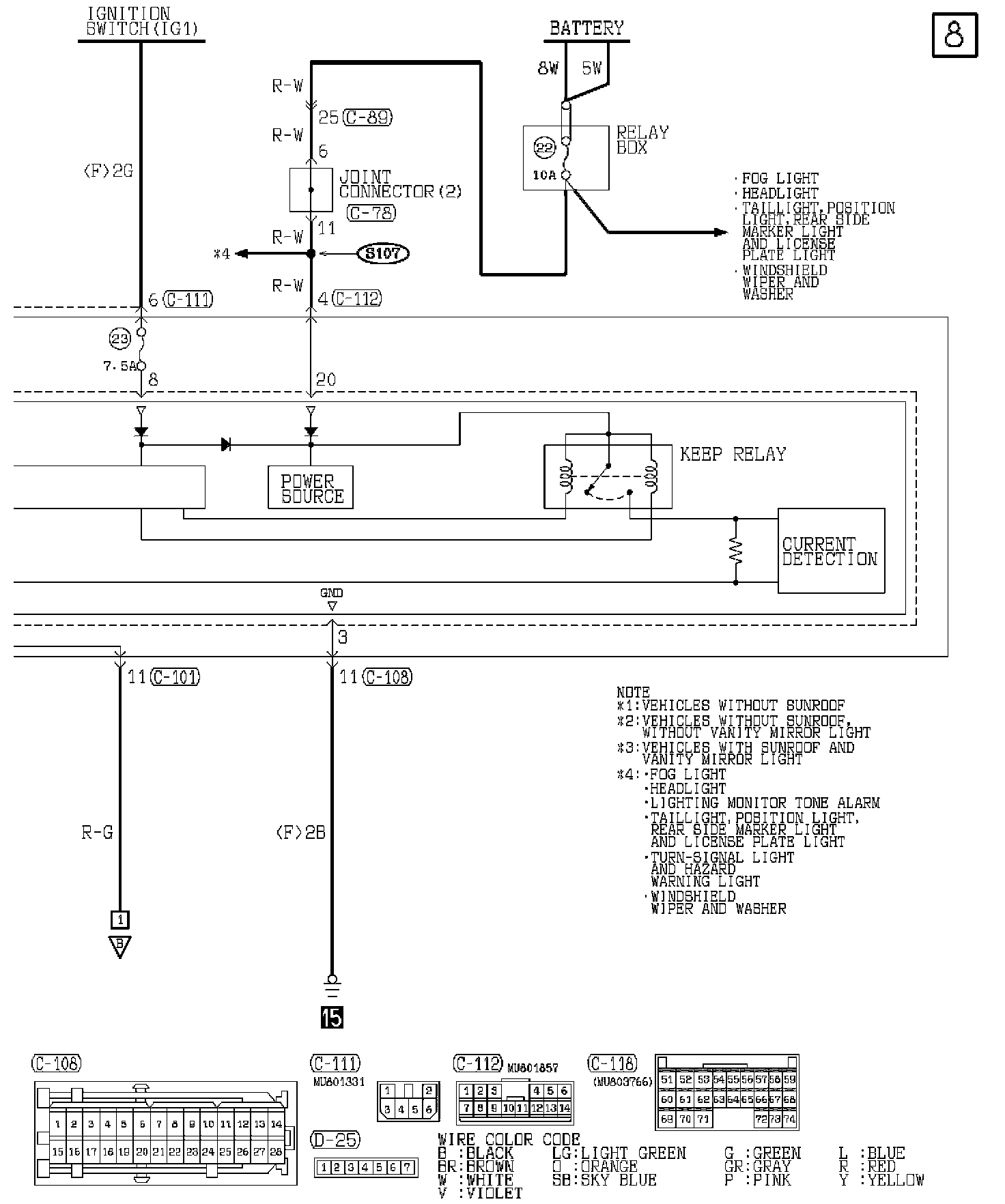

Central Door Locking System <Vehicles With Keyless Entry System (without Theft-alarm System)> Part 8:

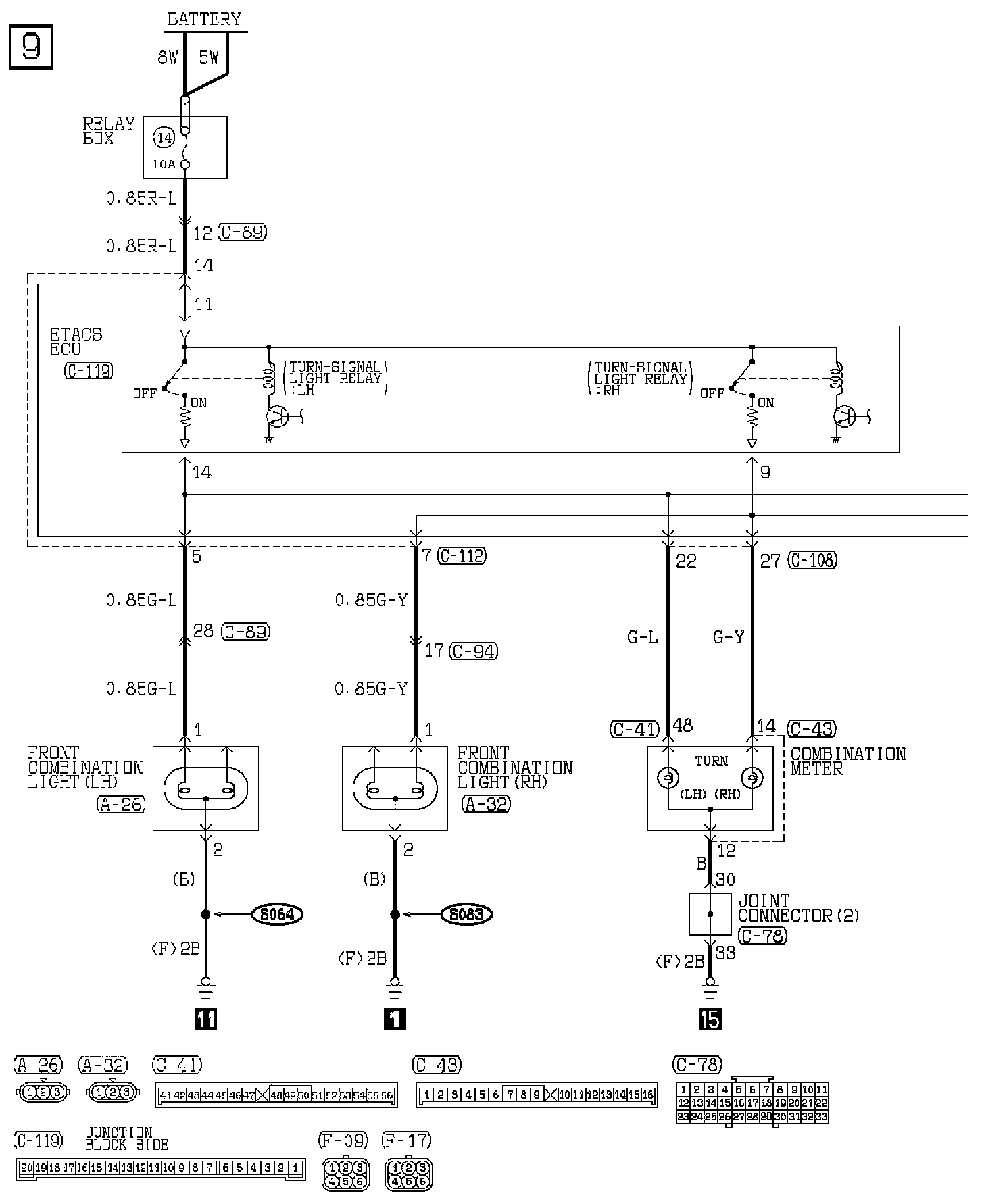

Central Door Locking System <Vehicles With Keyless Entry System (without Theft-alarm System)> Part 9:

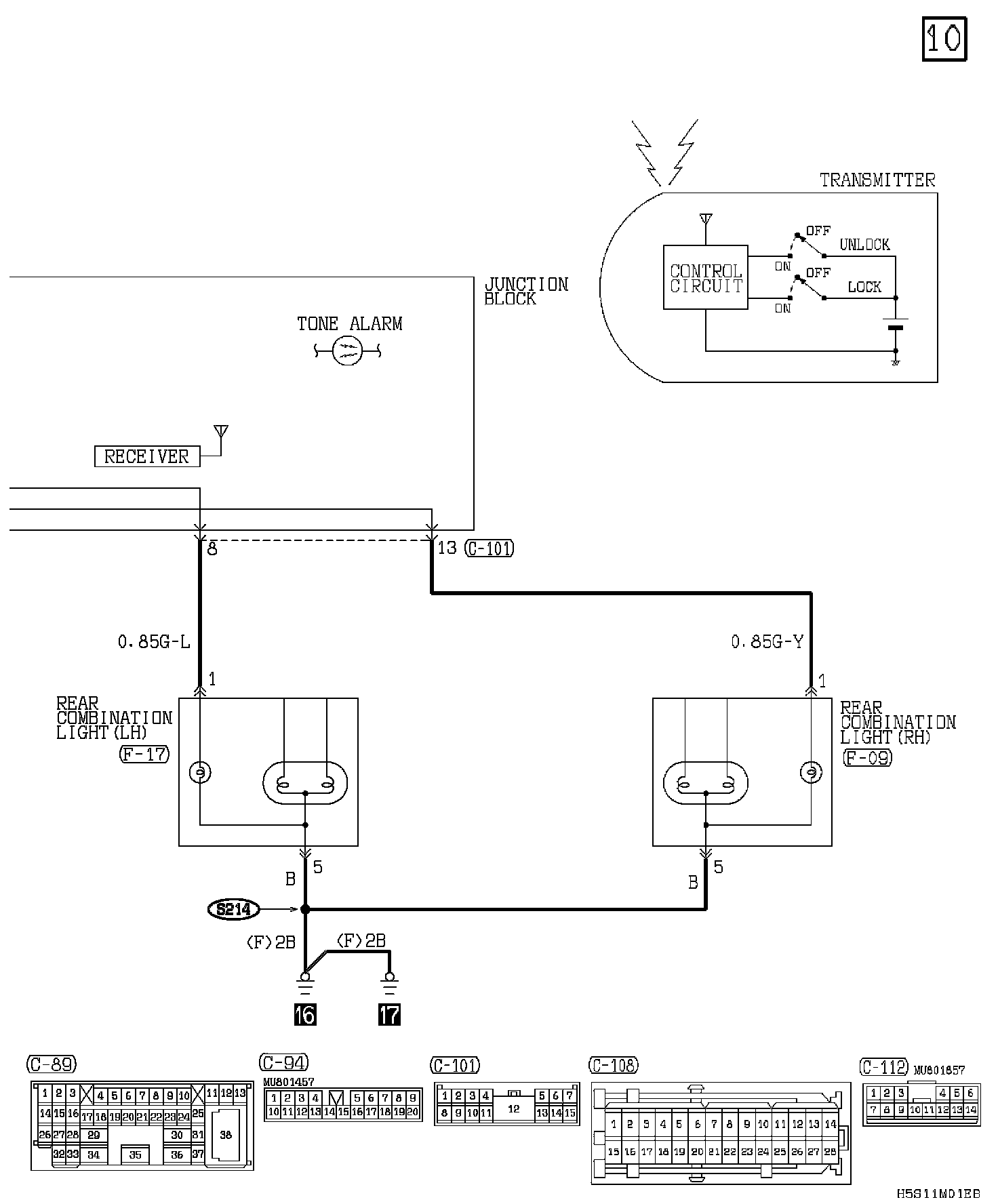

Central Door Locking System <Vehicles With Keyless Entry System (without Theft-alarm System)> Part 10:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
