Auto-Cruise Control Switch Check

  1. Remove the auto-cruise control switch. (Refer to REMOVAL AND INSTALLATION ).
  2. Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.

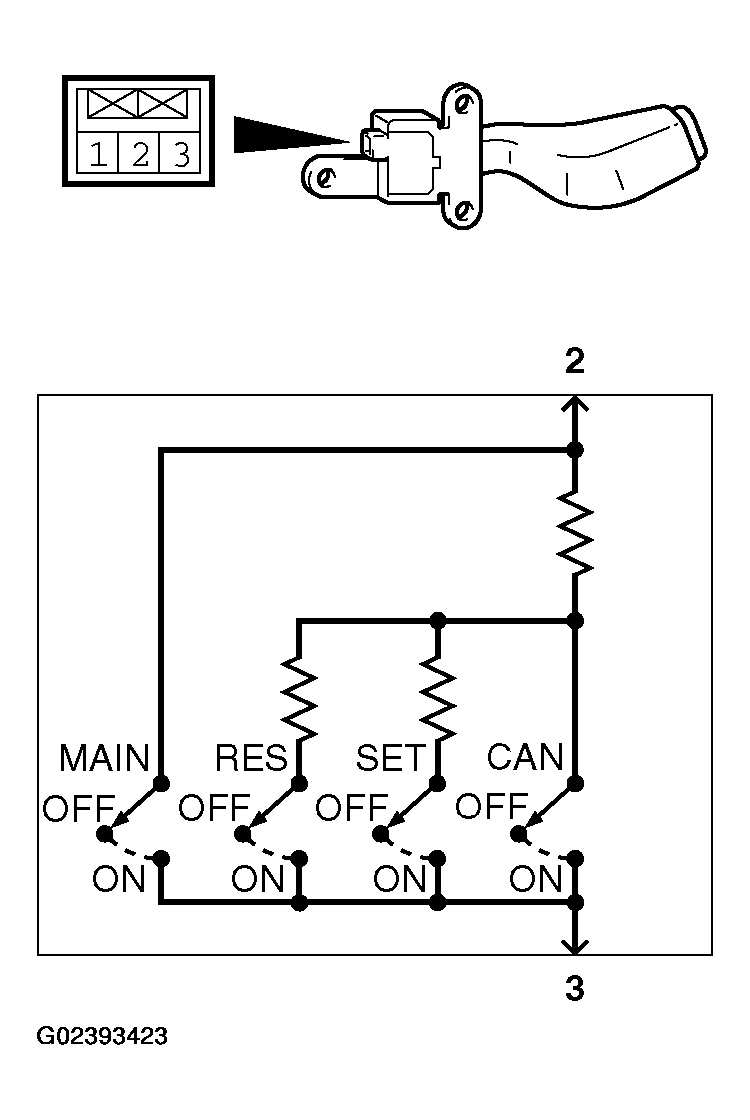

    Fig 1: Checking Auto-Curise Control Switch Resistance
    G02393423Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    RESISTANCE SPECIFIED CONDITION

    SWITCH POSITION  SPECIFIED CONDITION
    "CRUISE" (MAIN) switch "OFF" Open circuit
    "CRUISE" (MAIN) switch "ON" Less than 2 ohms
    "CANCEL" switch ON Approximately 100 Ω
    "ACC/RES" switch ON Approximately 887 Ω
    "COAST/SET" switch ON Approximately 300 Ω
