INSPECTION PROCEDURE 4: Auto-cruise Control cannot be Set.: Diagnosis
Required Special Tools:
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: MUT-III USB Cable
- MB991910: MUT-III Main Harness A
- STEP 1. Using scan tool MB991958, read the diagnostic trouble code. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

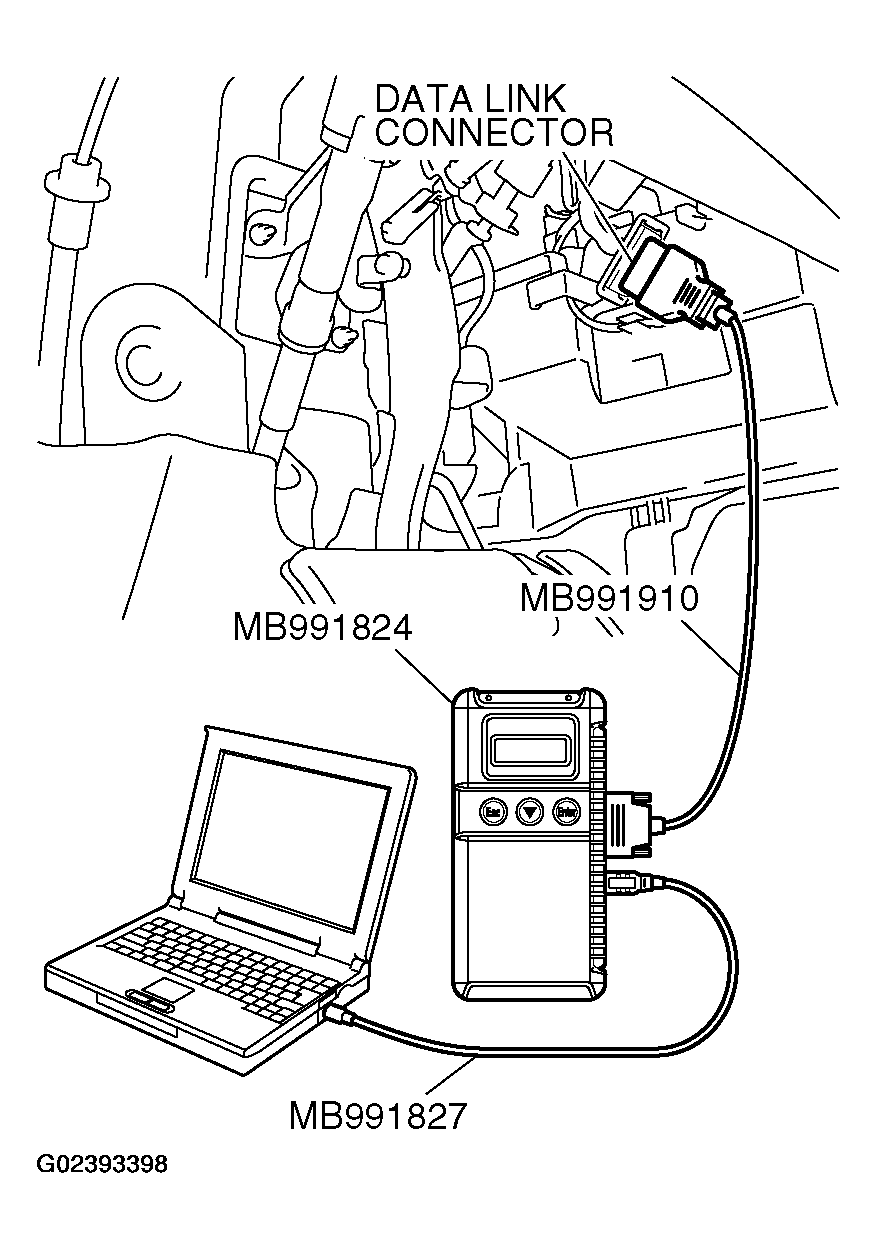

- Connect scan tool MB991958 to the data link connector. (Refer to DIAGNOSTIC FUNCTION ).
- Turn the ignition switch to the "ON" position.
- Check for auto-cruise control system diagnostic trouble code. (Refer to DIAGNOSTIC FUNCTION ).
- Turn the ignition switch to the "LOCK" (OFF) position.
- Disconnect scan tool MB991958.
Q: Is DTC set?
- YES : Diagnose the auto-cruise control system. (Refer to DIAGNOSTIC TROUBLE CODE CHART ). Then go to Step 7.
- NO : Go to Step 2.
- STEP 2. Using scan tool MB991958, check data list item 04: Cancel Switch. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
- Connect scan tool MB991958 to the data link connector. (Refer to DIAGNOSTIC FUNCTION ).
- Turn the ignition switch to the "ON" position.
- Set scan tool MB991958 to data reading mode for auto-cruise control system. (Refer to DIAGNOSTIC FUNCTION
).
- Item 04, Cancel Switch.
- When "CANCEL" switch is at the ON position, the display on scan tool MB991958 should be "ON".
- When "CANCEL" switch is at the OFF position, the display on scan tool MB991958 should be "OFF".
- Item 04, Cancel Switch.
- Turn the ignition switch to the "LOCK" (OFF) position.
- Disconnect scan tool MB991958.
Q: Is the switch operating properly?
- YES : Go to Step 3.
- NO : Refer to SYMPTOM PROCEDURES - INSPECTION PROCEDURE 3 . Then go to Step 7.
- STEP 3. Using scan tool MB991958, check data list item 05: Stoplight Switch. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
- Connect scan tool MB991958 to the data link connector. (Refer to DIAGNOSTIC FUNCTION ).
- Turn the ignition switch to the "ON" position.
- Set scan tool MB991958 to data reading mode for auto-cruise control system. (Refer to DIAGNOSTIC FUNCTION
).
- Item 05: Stoplight Switch.
- When brake pedal is depressed, the display on scan tool MB991958 should be "ON".
- When brake pedal is released, the display on scan tool MB991958 should be "OFF".
- Item 05: Stoplight Switch.
- Turn the ignition switch to the "LOCK" (OFF) position.
- Disconnect scan tool MB991958.
Q: Is the switch operating properly?
- YES : Go to Step 4.
- NO : Refer to SYMPTOM PROCEDURES - INSPECTION PROCEDURE 1 . Then go to Step 7.
- STEP 4. Using scan tool MB991958, check data list item 06: Brake switch. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
- Connect scan tool MB991958 to the data link connector. (Refer to DIAGNOSTIC FUNCTION ).
- Turn the ignition switch to the "ON" position.
- Set scan tool MB991958 to data reading mode for auto-cruise control system. (Refer to DIAGNOSTIC FUNCTION
).
- Item 06, Brake Switch.
- When brake pedal is depressed, the display on scan tool MB991958 should be "ON".
- When brake pedal is released, the display on scan tool MB991958 should be "OFF".
- Item 06, Brake Switch.
- Turn the ignition switch to the "LOCK" (OFF) position.
- Disconnect scan tool MB991958.
Q: Is the switch operating properly?
- YES : Go to Step 5.
- NO : Refer to SYMPTOM PROCEDURES - INSPECTION PROCEDURE 1 . Then go to Step 7.
- STEP 5. Using scan tool MB991958, check data list item 07: Transmission Range Switch. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
- Connect scan tool MB991958 to the data link connector. (Refer to DIAGNOSTIC FUNCTION ).
- Turn the ignition switch to the "ON" position.
- Set scan tool MB991958 to data reading mode for auto-cruise control system. (Refer to DIAGNOSTIC FUNCTION
).
- Item 07, Transmission Range Switch.
- When selector lever is at the "P" or "N" position, the display on scan tool MB991958 should be "ON".
- When selector lever is at the "R" or "D" position, the display on scan tool MB991958 should be "OFF".
- Item 07, Transmission Range Switch.
- Turn the ignition switch to the "LOCK" (OFF) position.
- Disconnect scan tool MB991958.
Q: Is the switch operating properly?
- YES : Go to Step 6.
- NO : Refer to SYMPTOM PROCEDURES - INSPECTION PROCEDURE 2 . Then go to Step 7.
- STEP 6. Check the symptoms.
Q: Can auto-cruise control be set?
- YES : It can be assumed that this malfunction is intermittent (Refer to HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS - HOW TO COPE WITH INTERMITTENT MALFUNCTION ).
- NO : Replace the PCM [Refer to POWER CONTROL MODULE (PCM) ]. Then go to Step 7.
- STEP 7. Check the symptoms.
Q: Can auto-cruise control be set?
- YES : The procedure is complete.
- NO : Return to Step 1.
