Disassembly And Assembly: Notes

NUMBER OF CLUTCH DISCS AND PLATES

  PRESSURE PLATE  CLUTCH DISC  CLUTCH PLATE  CLUTCH REACTION PLATE
Over drive clutch 1 4 3 1
Reverse clutch - 2 2 1

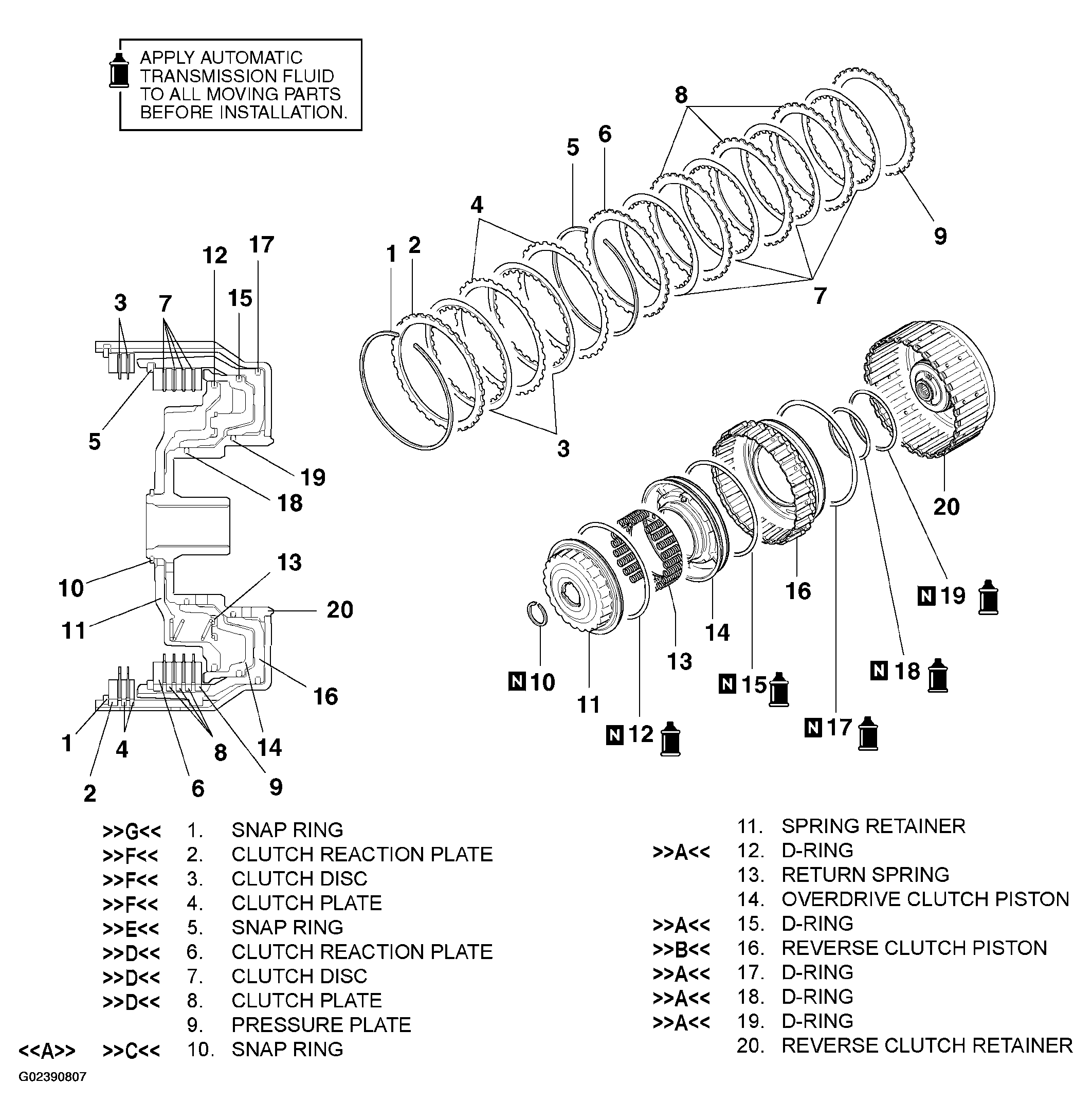

Fig 1: Disassembling & Assembly Of Reverse & Overdrive Clutch
G02390807Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
