Positive Crankcase Ventilation: Specifications

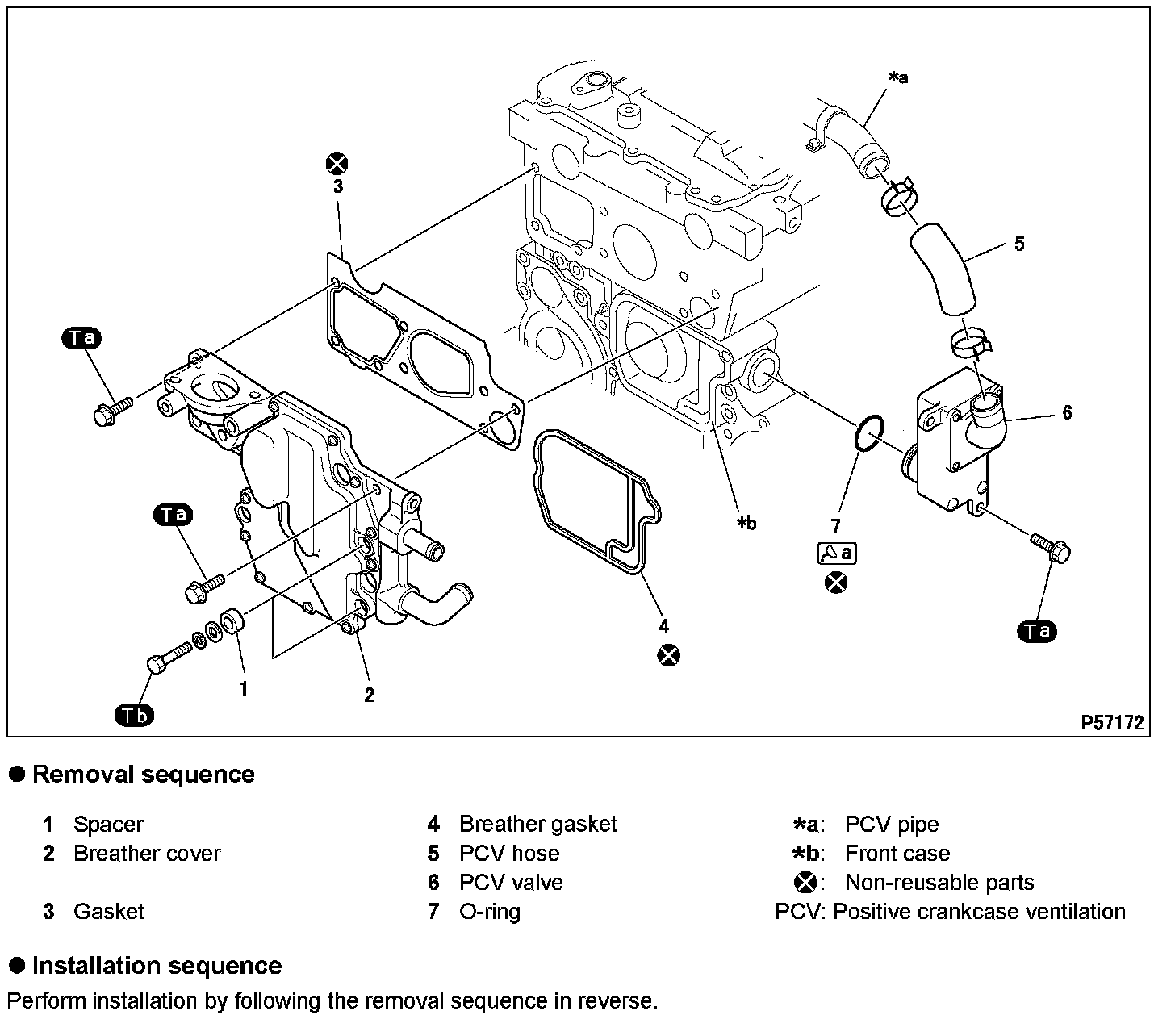

CRANKCASE EMISSION CONTROL SYSTEM

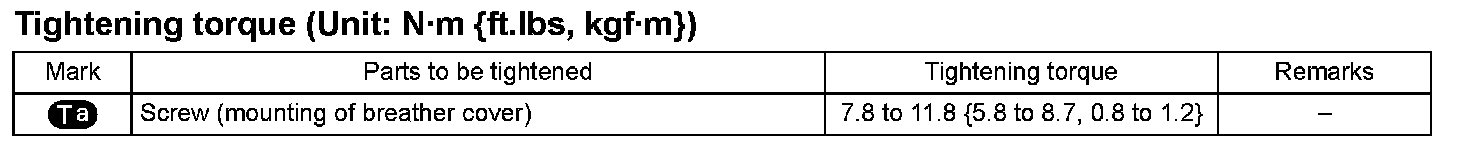

Tightening torque (Unit: N.m {ft.lbs, kgf.m})

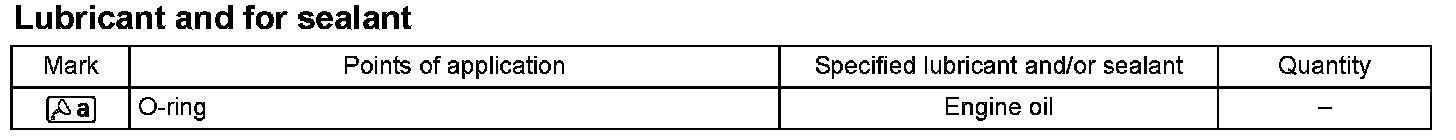

Lubricant and for sealant

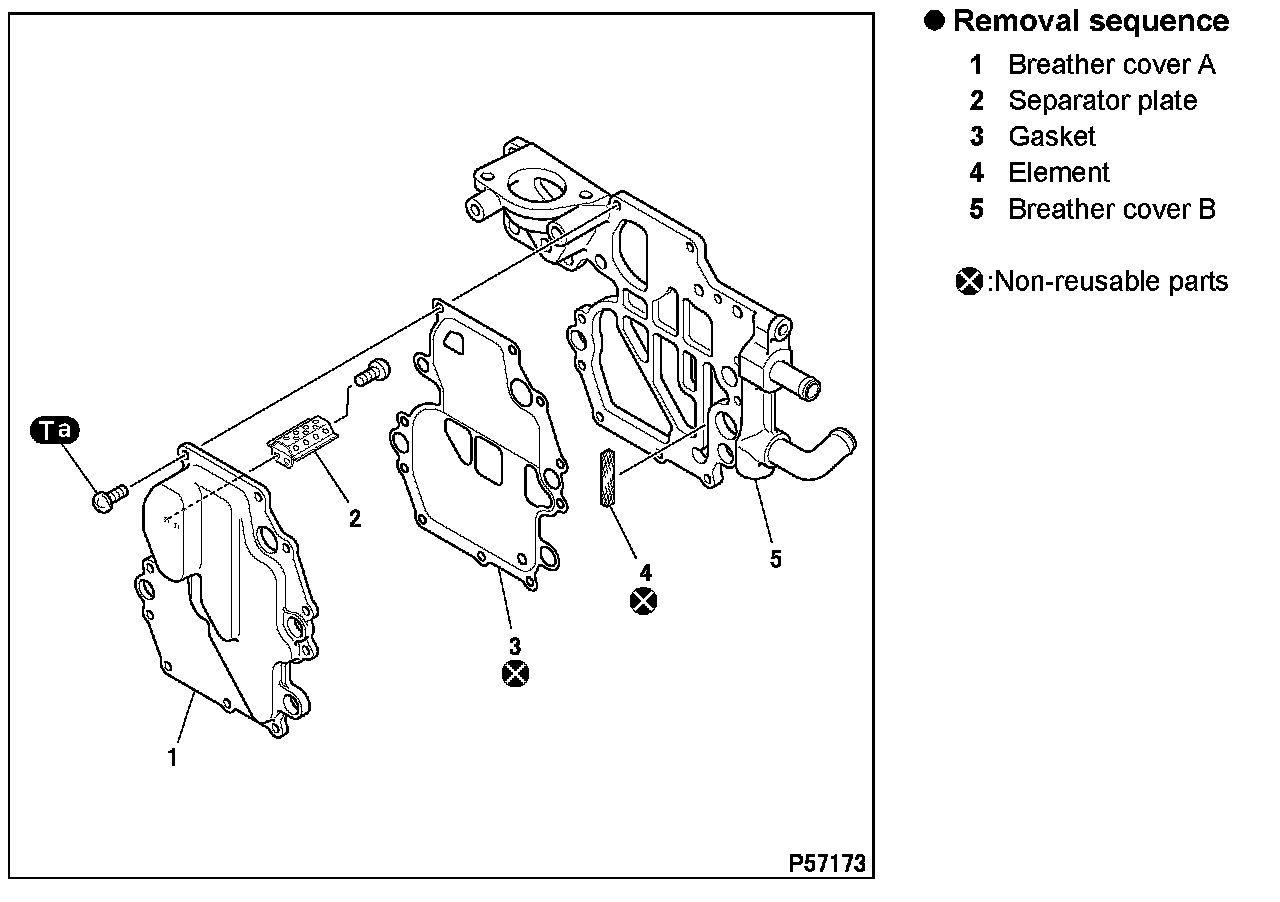

Breather cover

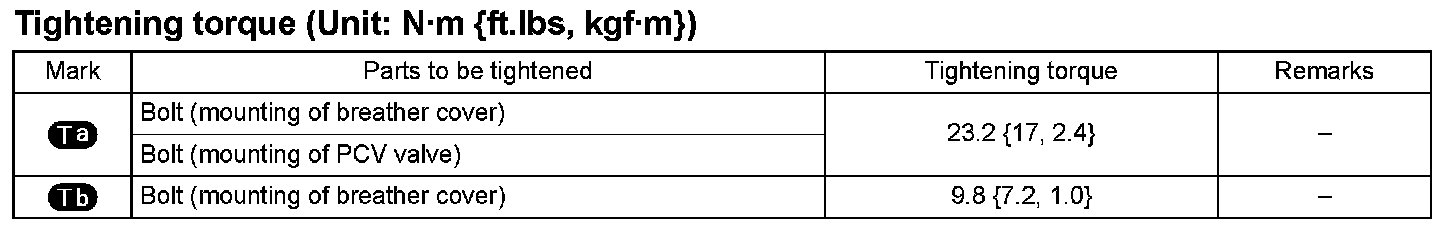

Tightening torque (Unit: N.m {ft.lbs, kgf.m})
