INSPECTION PROCEDURE 1: When Power Switch is Turned "ON," no Power is Available.: Notes

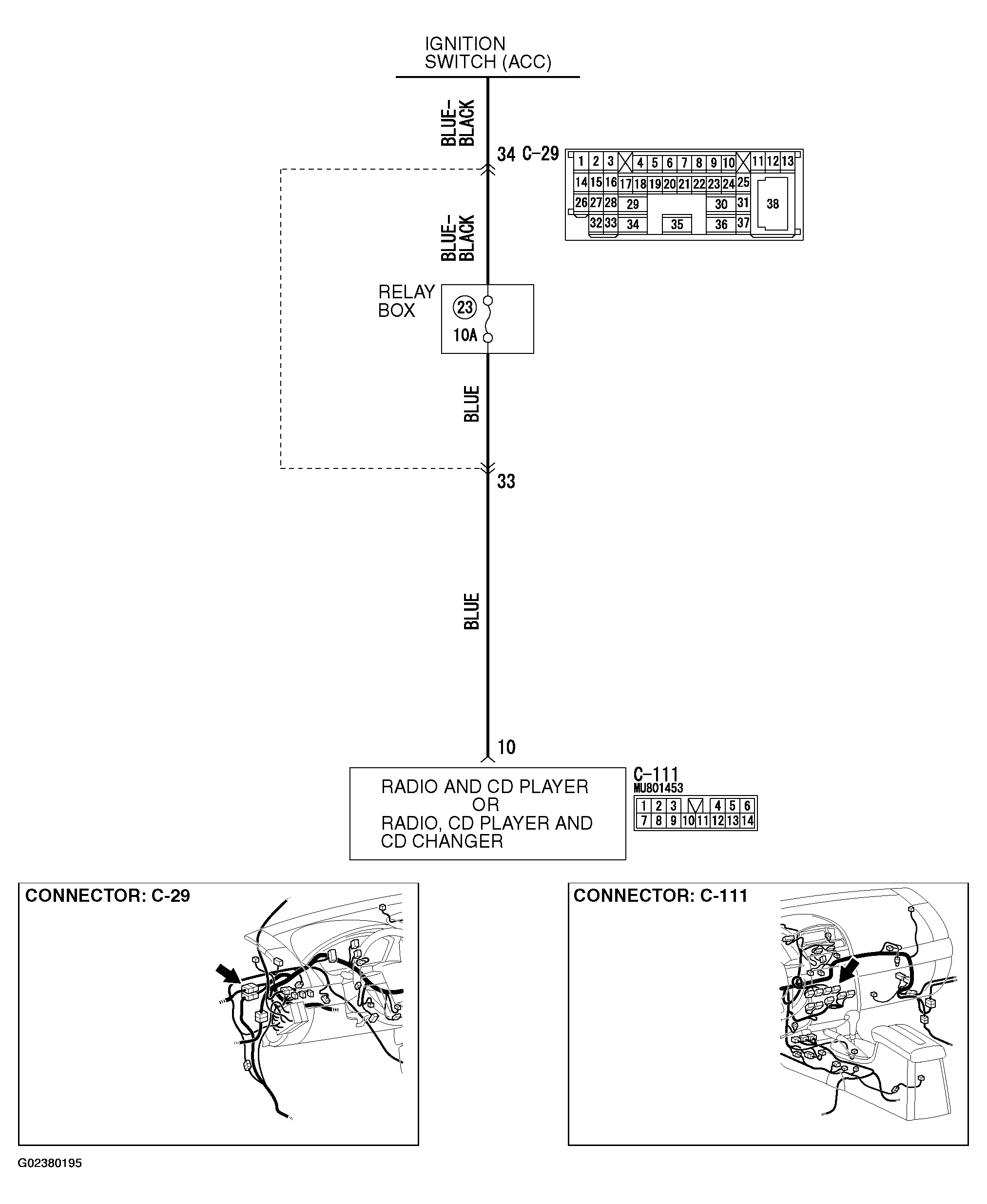

Fig 1: Identifying CD Player And CD Changer Power Supply Circuit Diagram
G02380195Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
