Removal And Installation < 2.4L Engine >: Notes

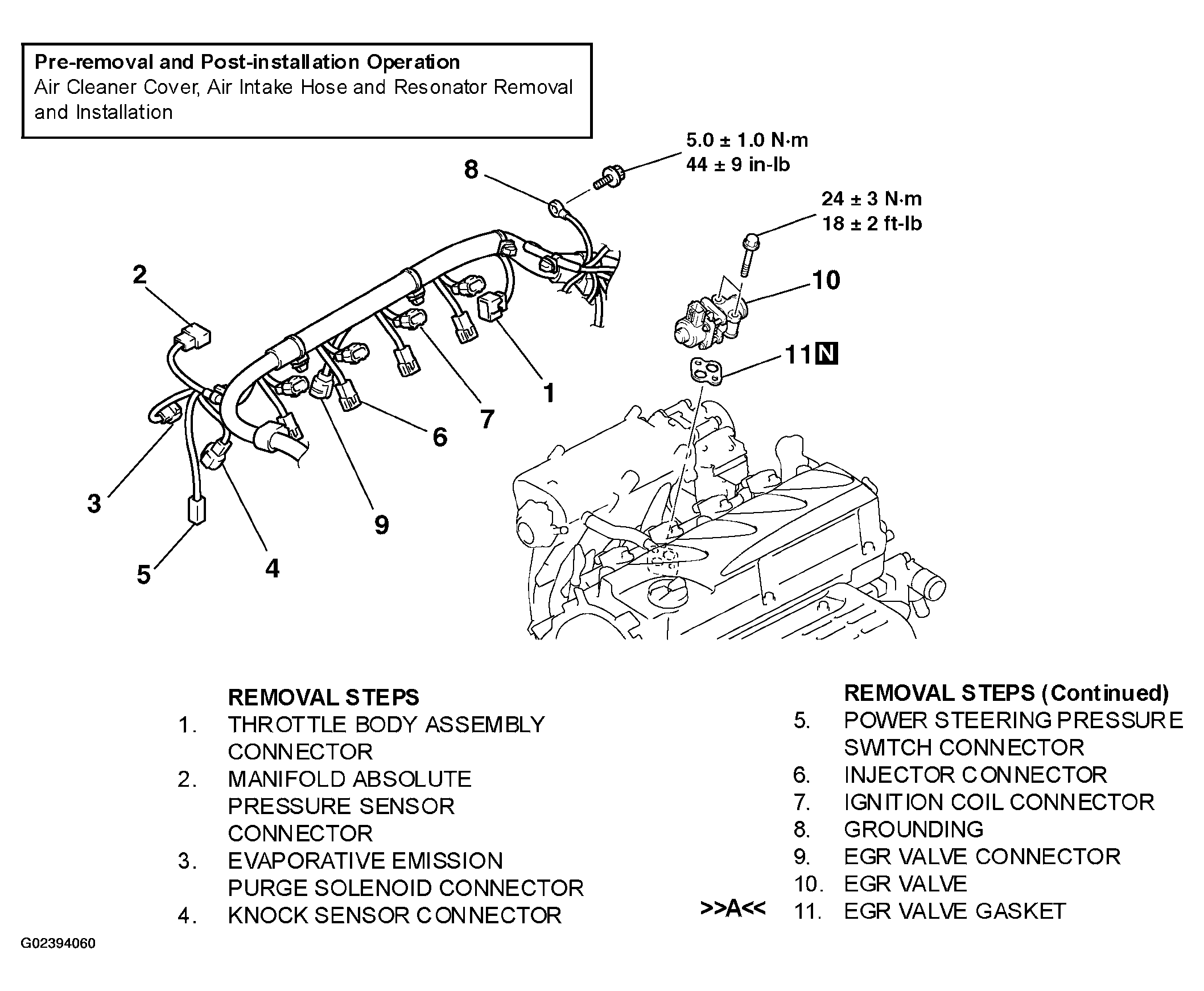

Fig 1: Removing/Installing Multiport Fuel Injection (MFI)
G02394060Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
