SRS Warning Light Check

  1. Check that the SRS warning light illuminates when the ignition switch is in the "ON" position.
  2. Check that it illuminates for approximately seven seconds and then goes out.
  3. If not, check for DTC.

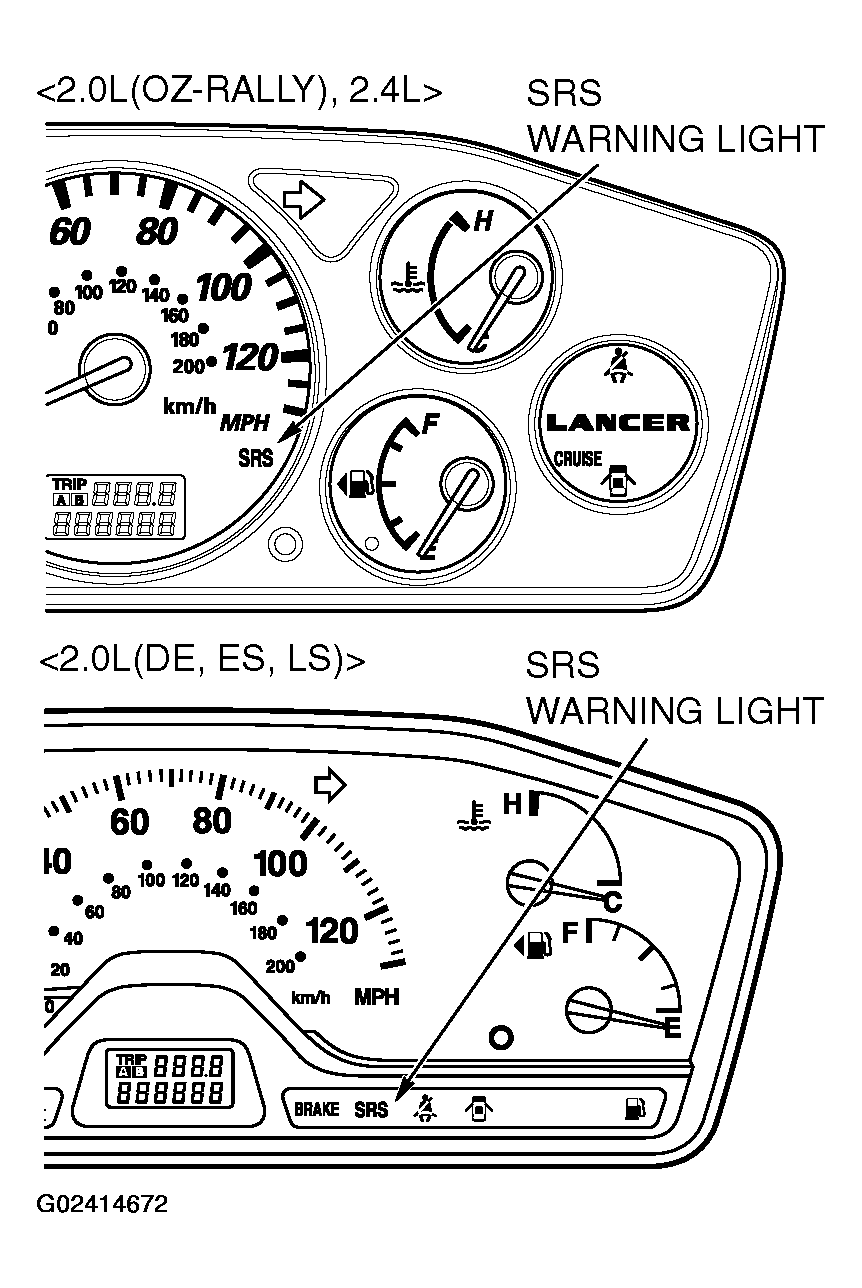

    Fig 1: Identifying SRS Warning Light
    G02414672Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
