Ignition Switch Continuity Check
WARNING: This page is about a different variant/trim than selected.

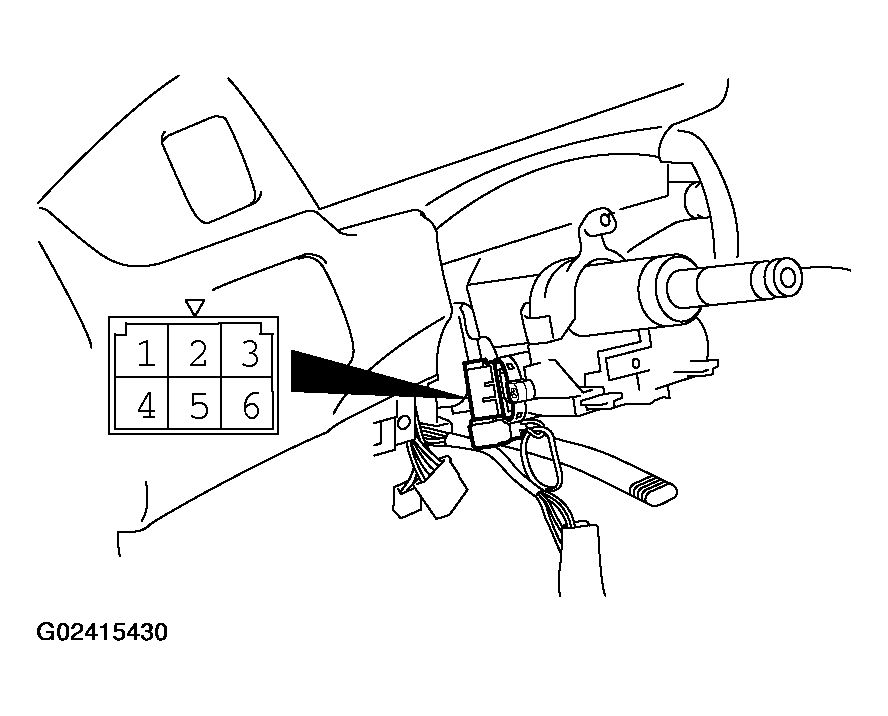

Disconnect ignition switch connector C-87 without removing the ignition switch and steering lock cylinder. Then check the continuity.
IGNITION SWITCH CONTINUITY CHECK
| SWITCH POSITION | TESTER CONNECTION | SPECIFIED CONNECTION |
|---|---|---|
| "LOCK" (OFF) | 1-2, 1-4, 1-5, 1-6 | Open circuit |
| "ACC" | 1-6 | Less than 2 ohms |
| "ON" | 1-2, 1-4, 1-6, 2-4, 2-6, 4-6 | Less than 2 ohms |
| "START" | 1-2, 1-5, 2-5 | Less than 2 ohms |
