<< A >> Engine And Transaxle Assembly Supporting/Transaxle Mount Assembly Removal

While supporting the engine and transaxle assembly with a garage jack, remove the transaxle mount assembly.

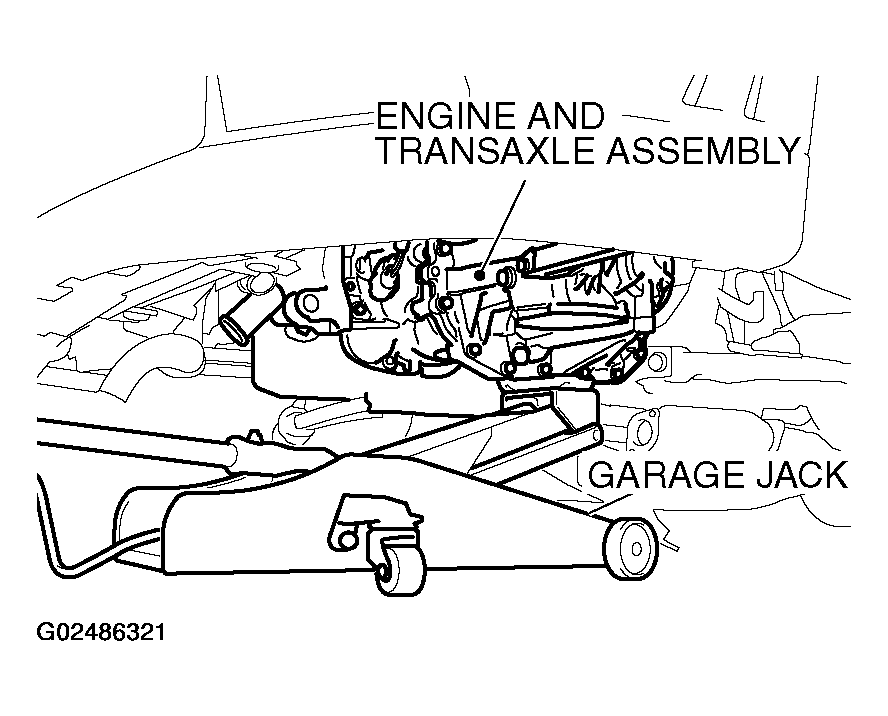

Fig 1: Removing Engine And Transaxle Assembly Supporting/Transaxle Mount Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
