Engine Compartment

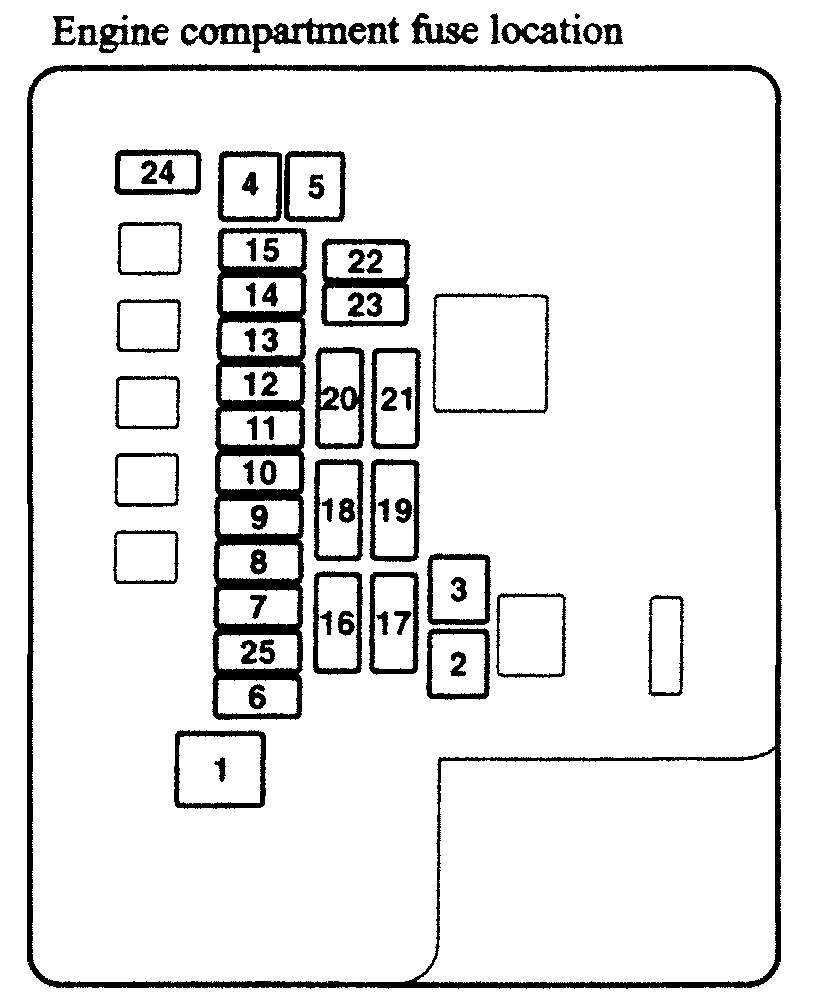

For fuse location and values, refer to illustration below.
IDENTIFYING FUSES (ENGINE COMPARTMENT)
| No. | POWER SUPPLY CIRCUIT | NAME | RATED CAPACITY (A) | HOUSING COLOR | LOAD CIRCUIT |
| 1 | Battery/Generator (Fusible link No.26) | Fusible link | 60 | Yellow | Fuse Nos.15,16,17,18,19 and 20 (in junction block) circuit |
| 2 | Battery/Generator (Fusible link No.26) | Fusible link | 50 | Red | Fan control module |
| 3 | Battery/Generator (Fusible link No.26) | Fusible link | 60 | Yellow | ABS-ECU |
| 4 | Battery/Generator (Fusible link No.26) | Fusible link | 40 | Green | Ignition switch circuit |
| 5 | Battery/Generator (Fusible link No.26) | Fusible link | 30 | Pink | Fuse No.21 (in junction block) circuit, power window main switch and power window sub switch |
| 6 | Battery/Generator (Fusible link No.26) | Fuse | 15 | Blue | Combination meter, fog light (LH, RH) and fog light relay |
| 7 | Battery/Generator (Fusible link No.26) | Fuse | 10 | Red | Horn and horn relay |
| 8 | Battery/Generator (Fusible link No.26) | Fuse | 20 | Yellow | Camshaft position sensor, crankshaft position sensor, EGR vacuum regulator solenoid valve, engine control module, evaporative emission ventilation solenoid, evaporative emission purge solenoid, fan control relay, fuel pressure solenoid, heated oxygen sensor, idle air control motor, immobilizer-ECU, injector resistor, MFI relay, turbo charger wastegate solenoid and volume airflow sensor |
| 9 | Battery/Generator (Fusible link No.26) | Fuse | 10 | Red | A/C compressor |
| 10 | Battery/Generator (Fusible link No.26) | Fuse | 15 | Blue | ABS-ECU, high-mounted stoplight, immobilizer-ECU and rear combination light assembly (STOP) |
| 11 | Battery/Generator (Fusible link No.26) | Fuse | 30 | Green | Condenser fan motor |
| 12 | Battery/Generator (Fusible link No.26) | Fuse | 7.5 | Brown | Generator |
| 13 | Battery/Generator (Fusible link No.26) | Fuse | 10 | Red | ETACS-ECU |
| 14 | Battery/Generator (Fusible link No.26) | Fuse | - | - | - |
| 15 | Battery/Generator (Fusible link No.26) | Fuse | 20 | Yellow | Fuel pump and level sensor (main), fuel pump relay (3) and fuel pump resistor |
| 16 | Front-ECU (Headlight relay: High) | Fuse | 10 | Red | Headlight (RH) |
| 17 | Front-ECU (Headlight relay: High) | Fuse | 10 | Red | Combination meter and headlight (LH) |
| 18 | Front-ECU (Headlight relay: Low) | Fuse | 20 Discharge headlight | Yellow | Front combination light assembly (HEAD LOW: RH) |
| 10 Halogen headlight | Red | ||||
| 19 | Front-ECU (Headlight relay: Low) | Fuse | 20 Discharge headlight | Yellow | Front combination light assembly (HEAD LOW: LH), front combination light assembly (LEVELING) and headlight leveling switch |
| 10 Halogen headlight | Red | ||||
| 20 | Front-ECU (Taillight relay) | Fuse | 7.5 | Brown | ACD mode changeover switch, ashtray illumination light, CD player, cigarette lighter illumination light, clock, fog light switch, front combination light assembly (POSITION: RH), hazard warning light switch, headlight leveling switch, heater control, radio, rear combination light (TAIL: RH) and rheostat |
| 21 | Front-ECU (Taillight relay) | Fuse | 7.5 | Brown | Combination meter, front combination light assembly (POSITION: LH), license plate light, rear combination light assembly (TAIL: LH) and rear side marker light |
| 22 | Battery/Generator (Fusible link No.26) | Fuse | 10 | Red | 4WD-ECU, clock, column switch, combination meter, ETACS-ECU, front-ECU, radio and CD player |
| 23 | Ignition switch (ACC) | Fuse | 10 | Red | Clock, ETACS-ECU, radio and CD player |
| 24 | Battery/Generator (Fusible link No.26) | Fuse | 20 | Yellow | Audio amplifier |
| 25 | Battery/Generator (Fusible link No.26) | Fuse | 30 | Green | Condenser fan motor |
| 26 | Generator | Fusible link | 100 | - | Fuse Nos.6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 22, 24 and 25, Fusible link Nos.1, 2, 3, 4, 5 and 27 |
| 27 | Battery/Generator (Fusible link No.26) | Fusible link | 60 | Yellow | Electric pump |
Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.
