<< B >> Lower Oil Seal/Pinion And Valve Assembly Removal

WARNING: This page is about a different variant/trim than selected.

Using a plastic hammer, gently tap the pinion to remove it.

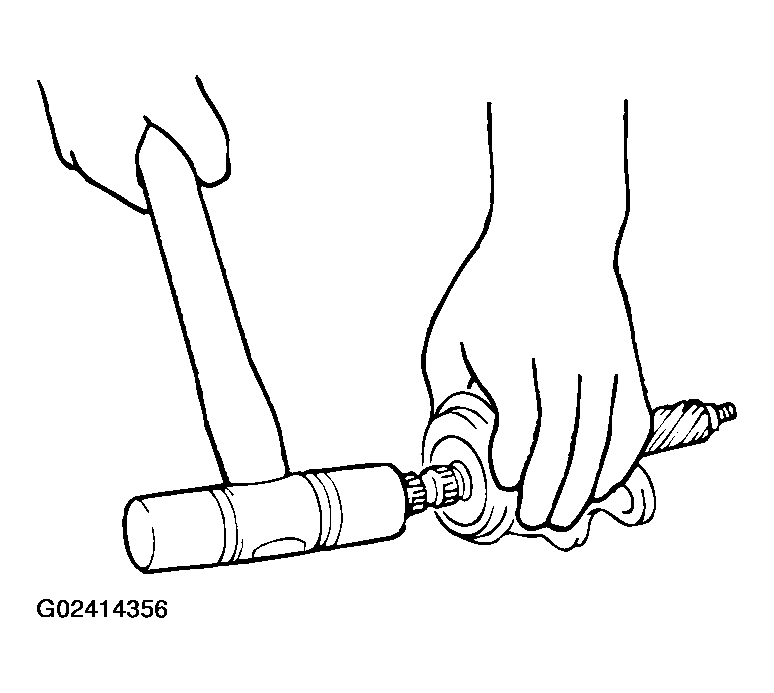

Fig 1: Removing Pinion By Using Plastic Hammer
G02414356Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
