Window Glass Installation

WARNING: This page is about a different variant/trim than selected.

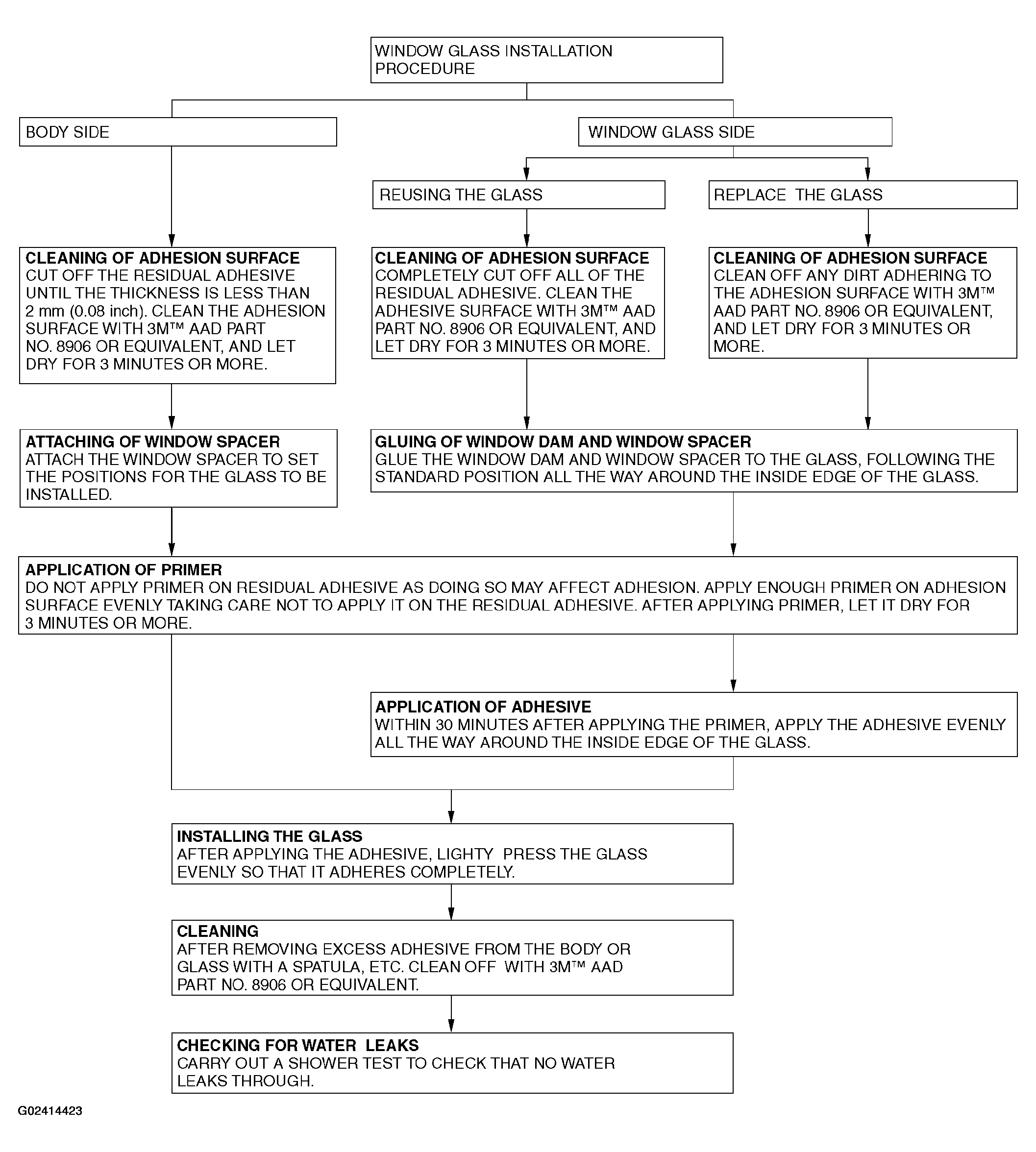

Fig 1: Window Glass Installation Flow Chart
G02414423Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
