Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

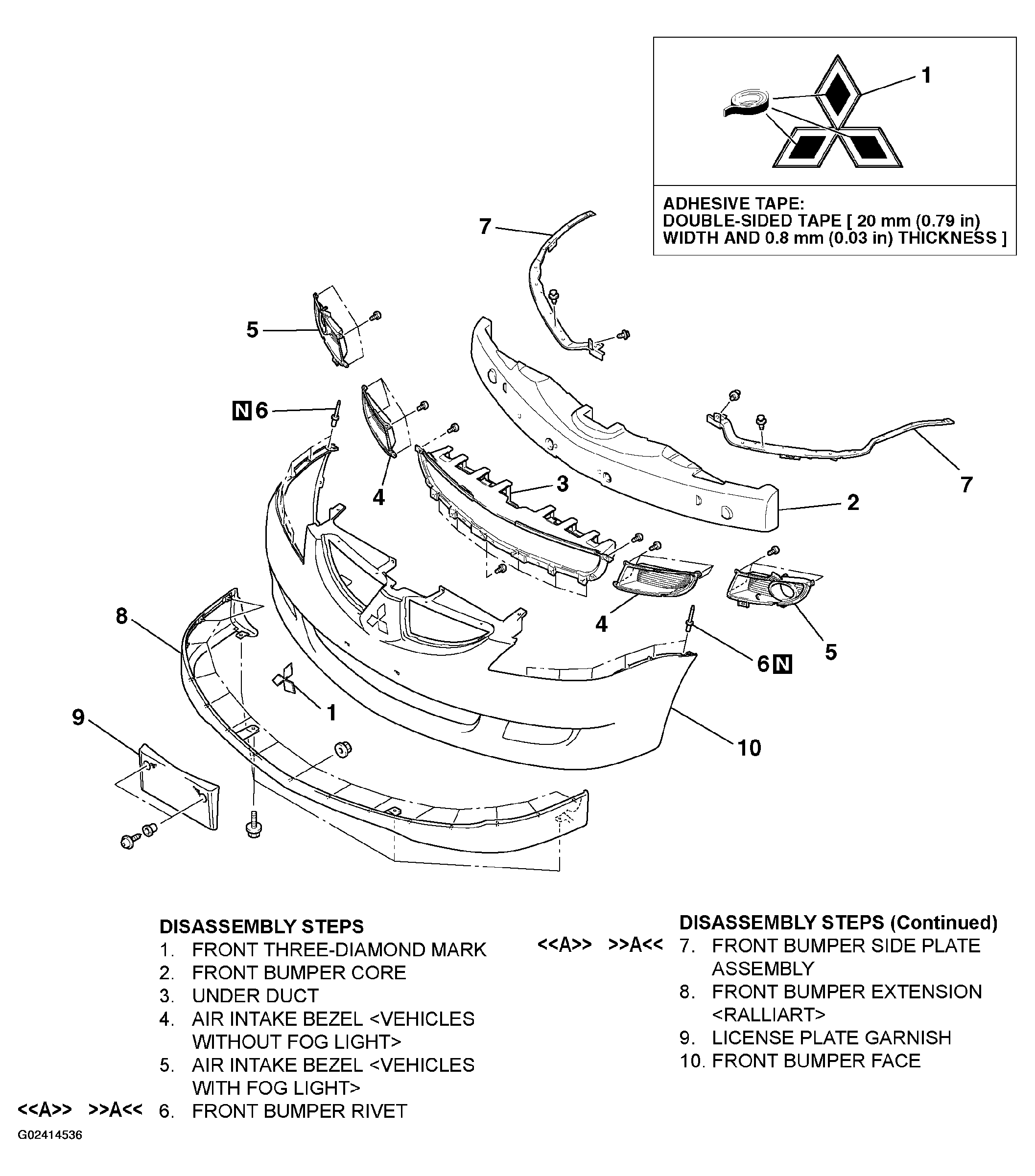

Fig 1: Exploded View Of Front Bumper Assembly
G02414536Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
