Removal And Installation: Notes

WARNING: Before removing the steering wheel and air bag module assembly, refer to SERVICE PRECAUTIONS ( ) and AIR BAG MODULE AND CLOCK SPRING ( ).

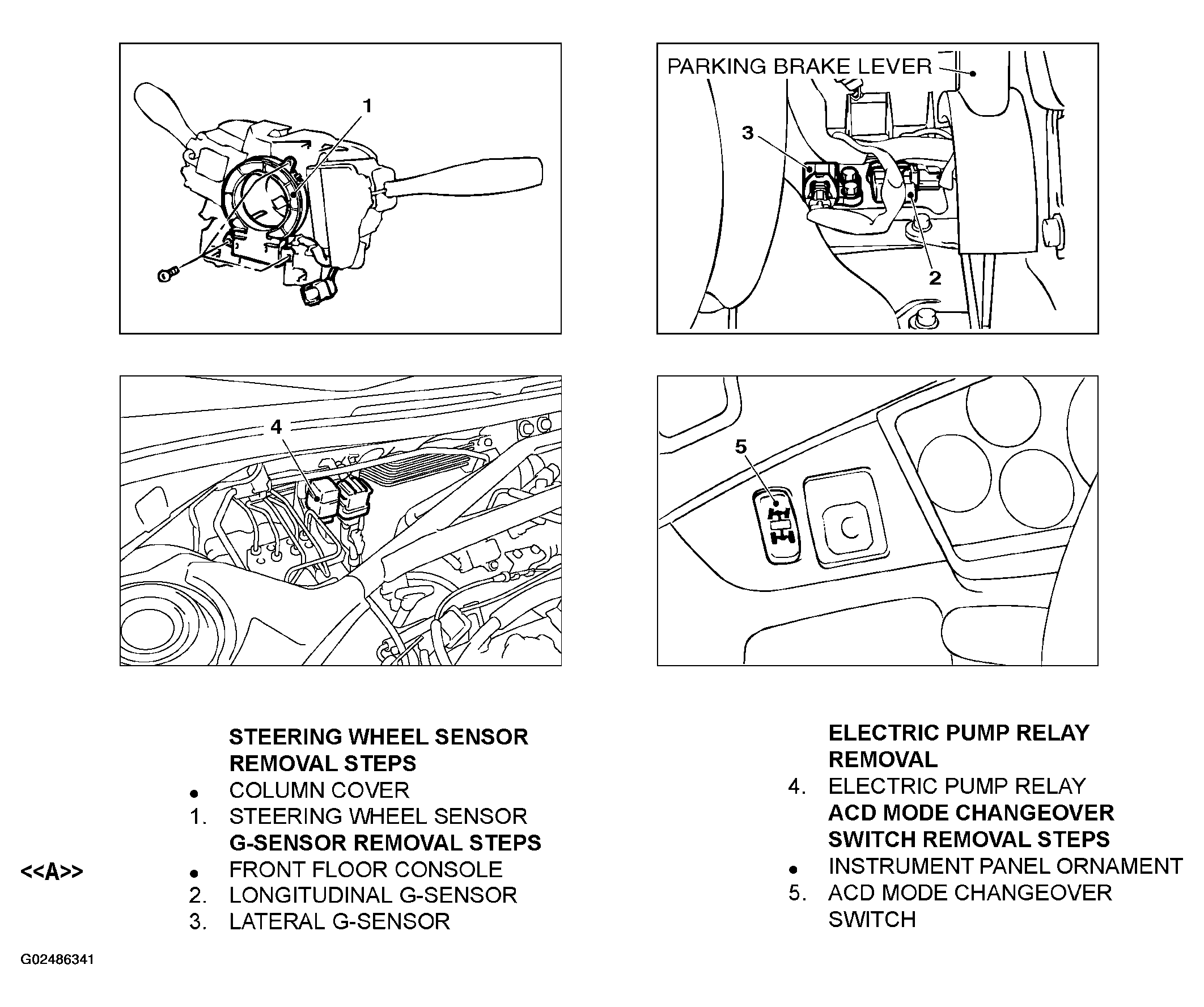

Fig 1: Removing/Installing Sensor, Switch And Relay
G02486341Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: For details on the ABS sensor, refer to ON-VEHICLE SERVICE .
