Disassembly And Assembly

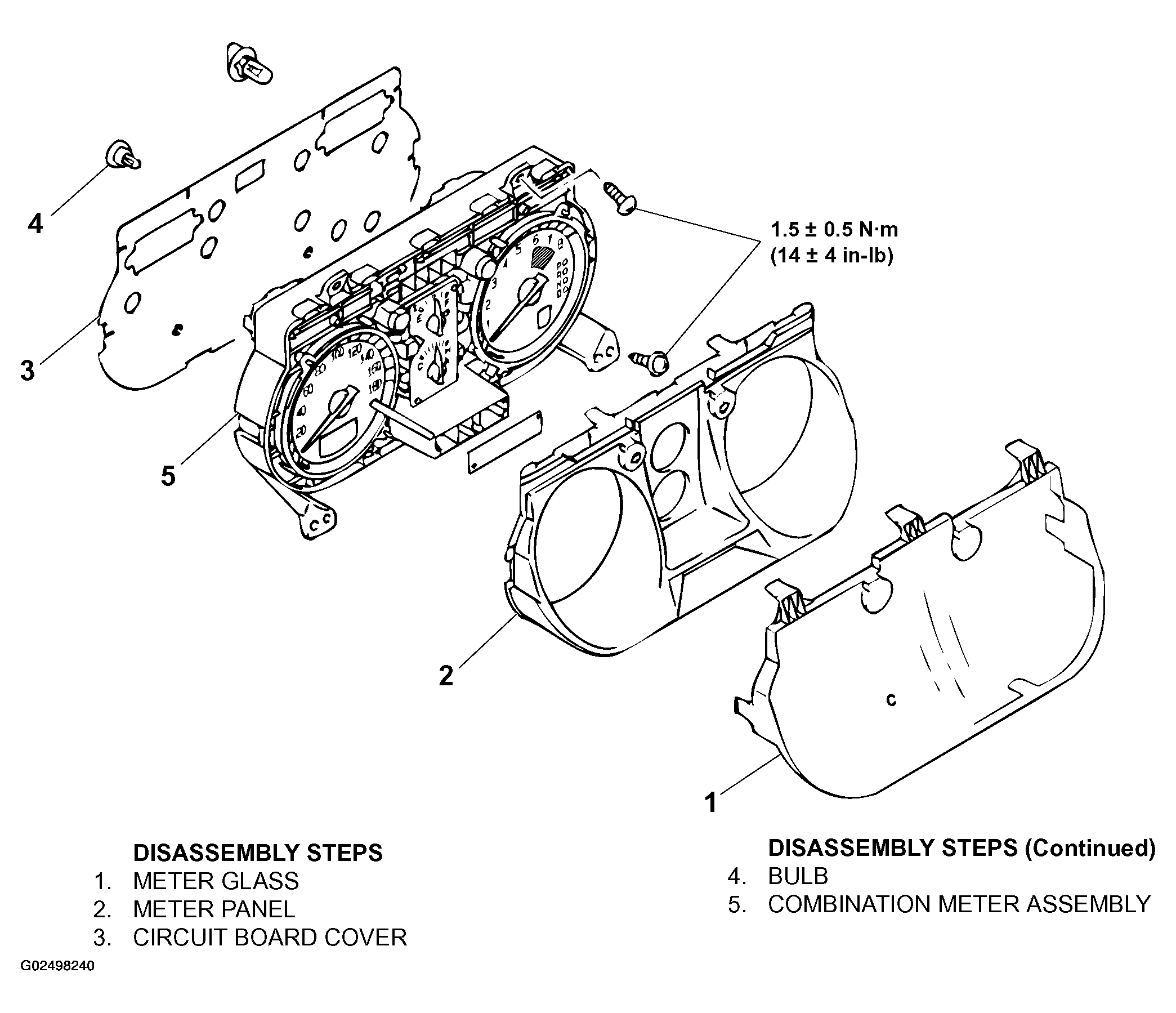

Fig 1: Disassembling/Assembling Combination Meter Assembly And Vehicle Speed Sensor
G02498240Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
