INSPECTION PROCEDURE 1: There is no Display.: Notes

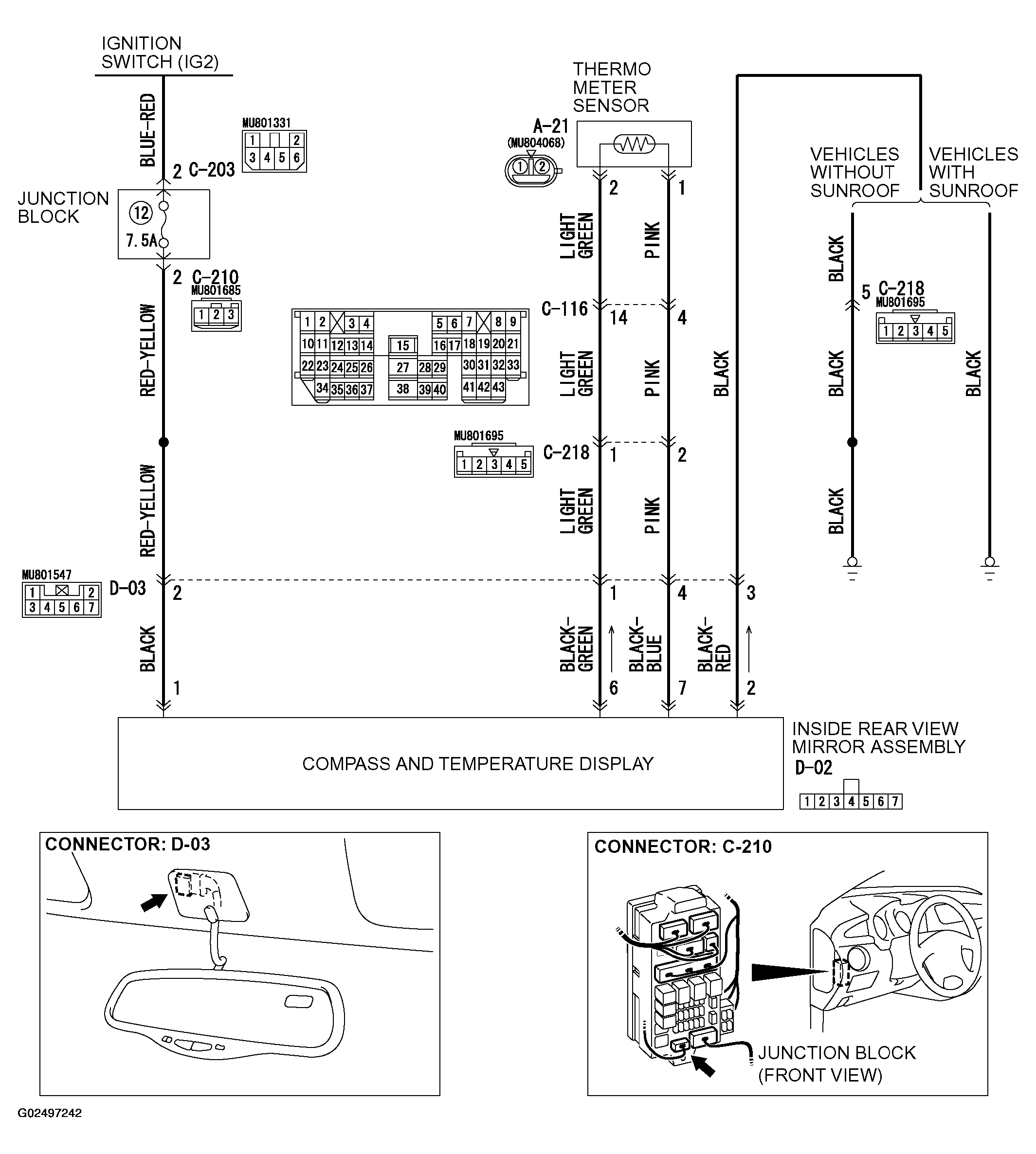

Fig 1: Ambient Air Temperature Meter And Electronic Compass Circuit
G02497242Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

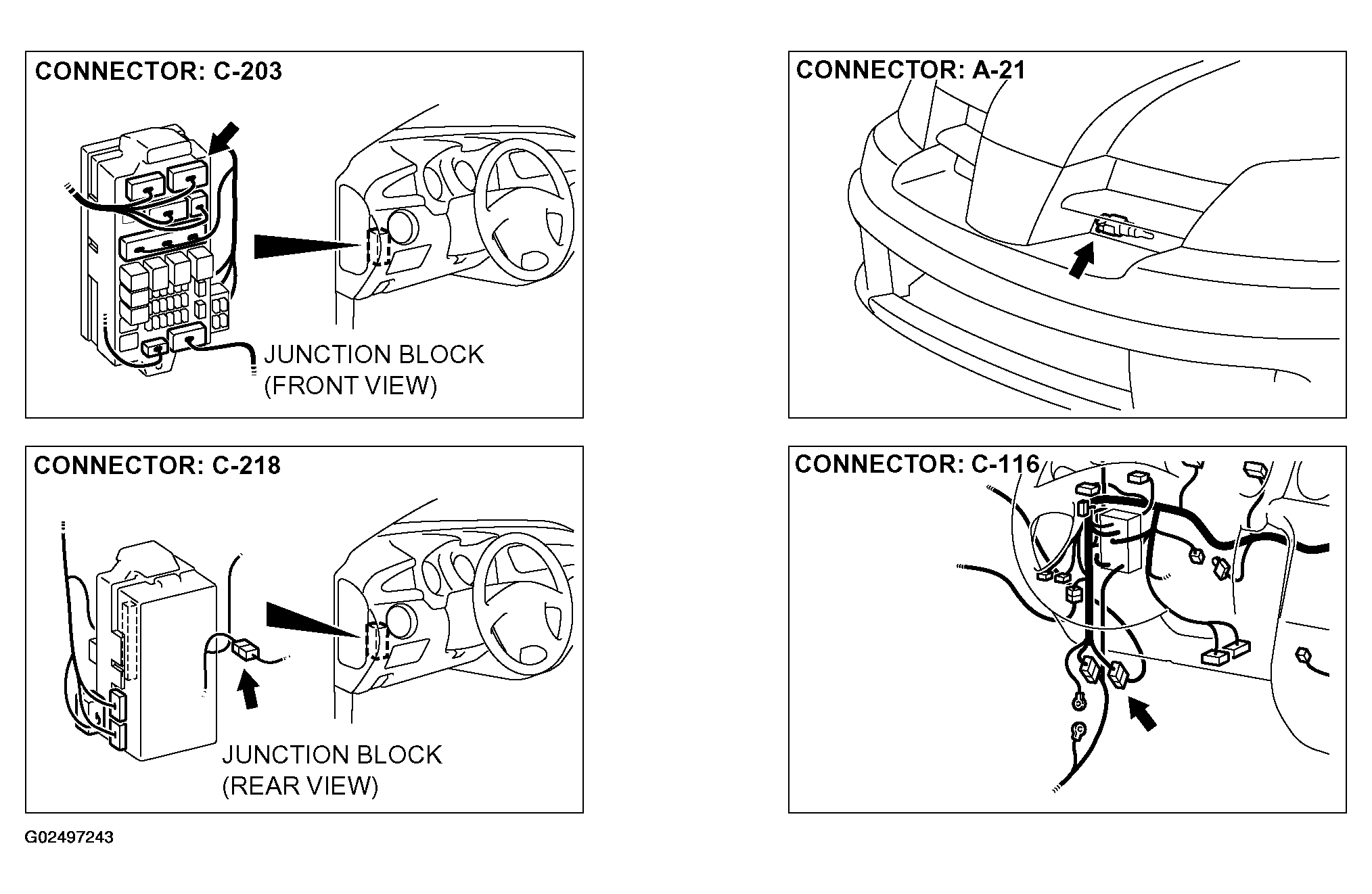

Fig 2: Identifying Connector Terminal
G02497243Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
