DTC C1205: Front Left Wheel Speed Sensor (Open Circuit or Short Circuit): Notes

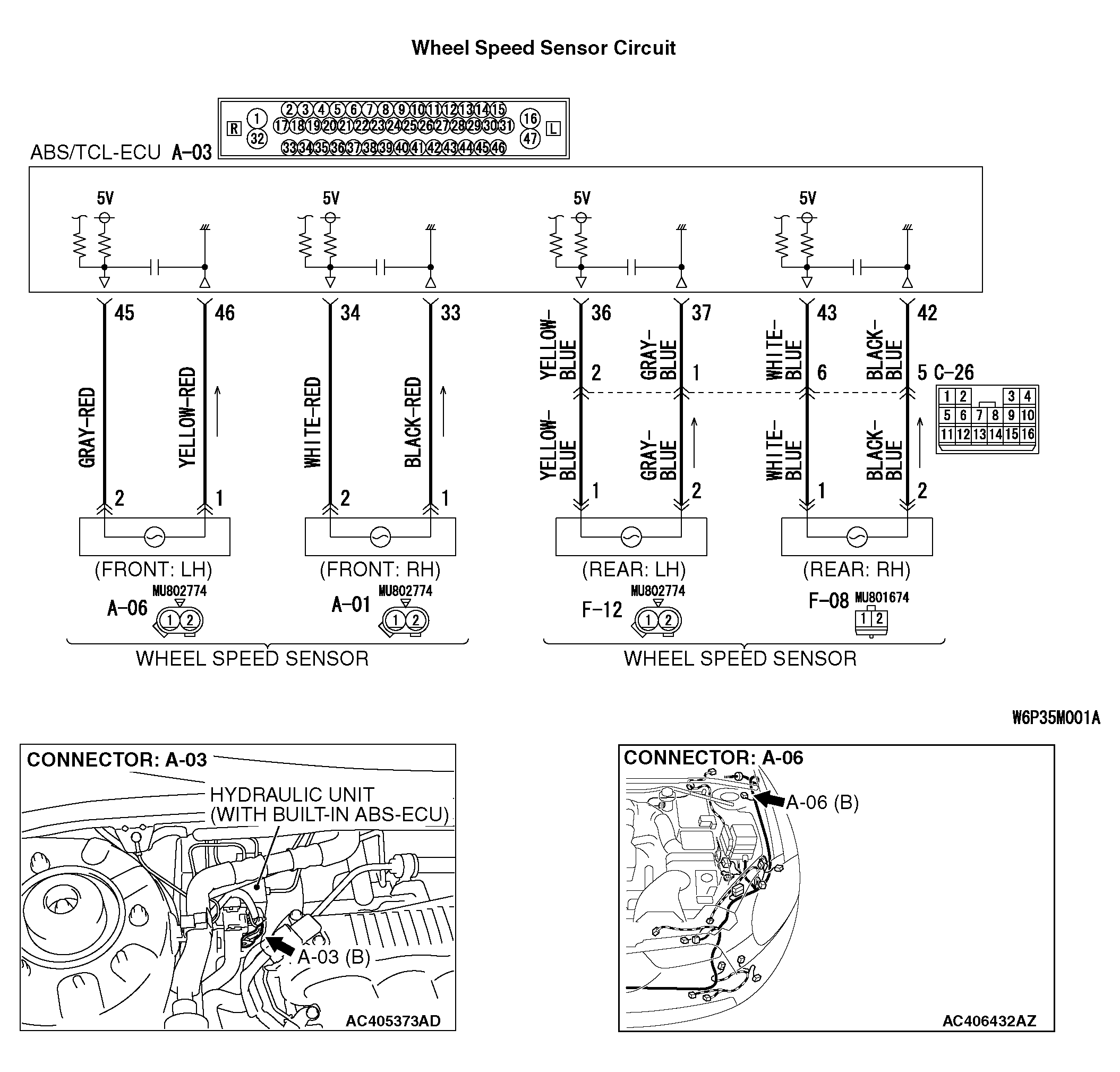

Fig 1: Wheel Speed Sensor Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines. (Refer to, HOW TO DIAGNOSE THE CAN BUS LINE ).
