INSPECTION PROCEDURE 1: Communication between the Scan Tool and the ABS/TCL-ECU is not Possible.: Notes

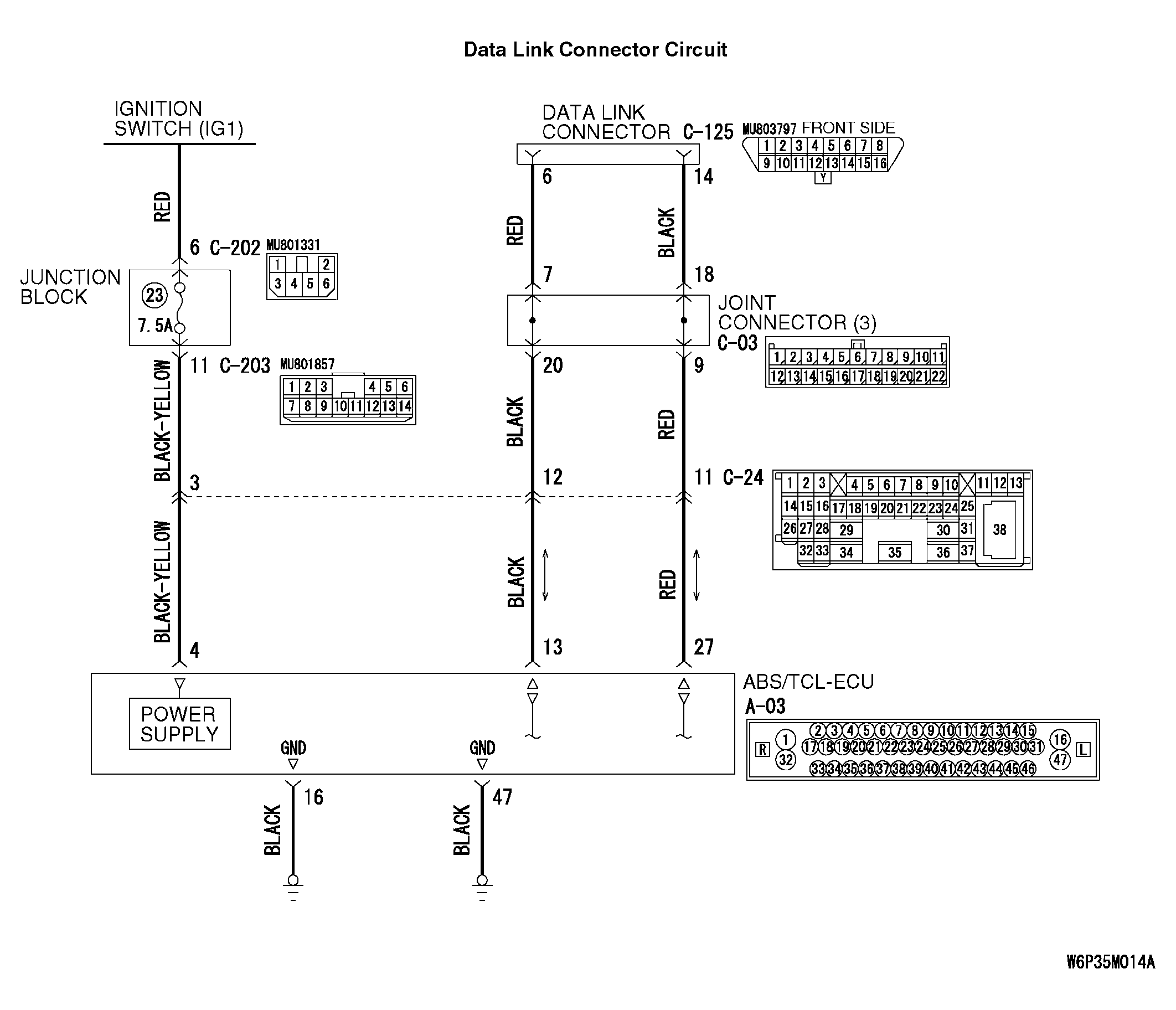

Fig 1: Data Link Connector Circuit Diagram
G04232315Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
