INSPECTION PROCEDURE 2: ABS/TCL-ECU Power Supply Circuit System: Notes

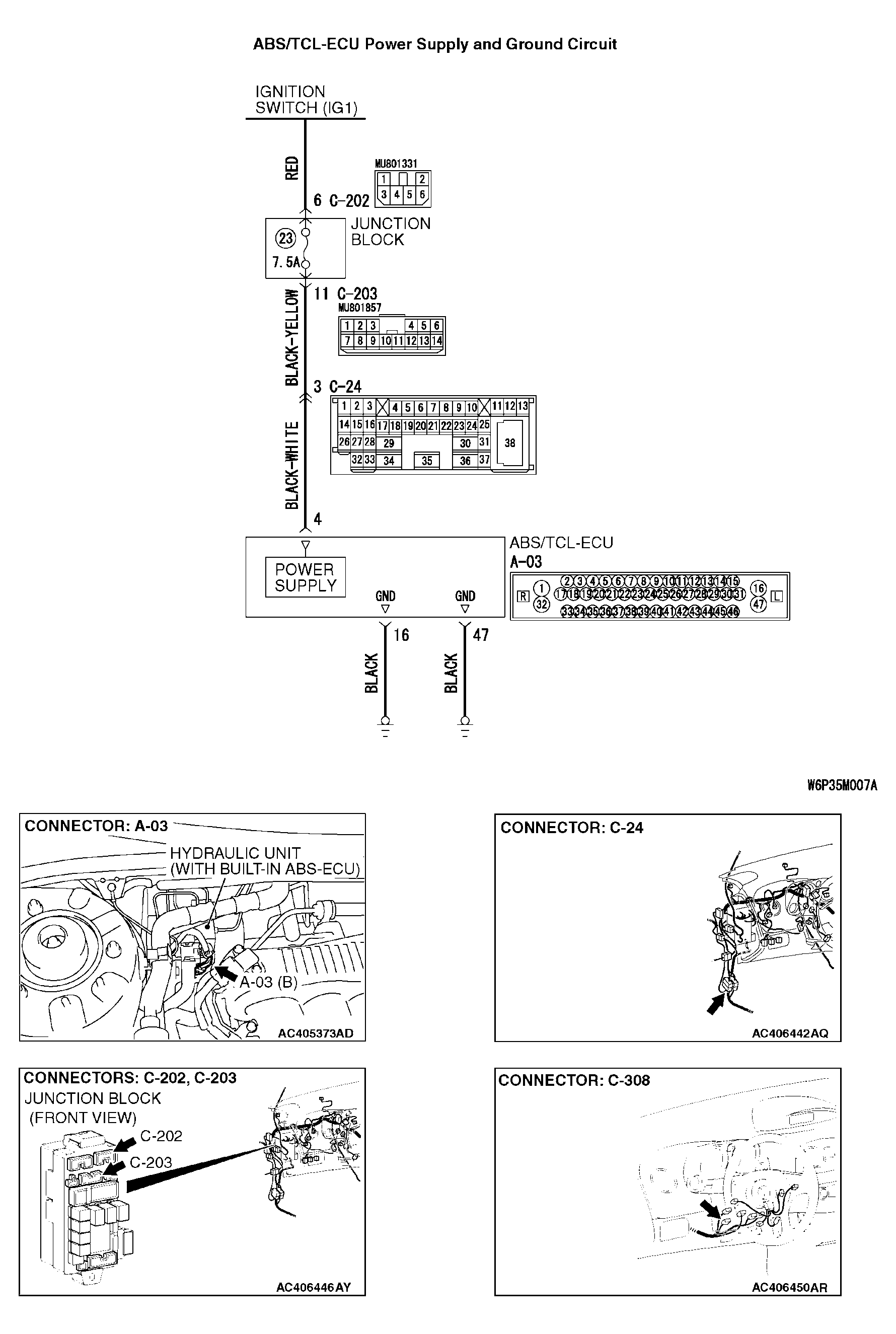

Fig 1: ABS/TCL-ECU Power Supply And Ground Circuit Diagram
G04232317Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
