INSPECTION PROCEDURE 7: When the TCL Switch is Pushed On, TCL System is not Cancelled.: Notes

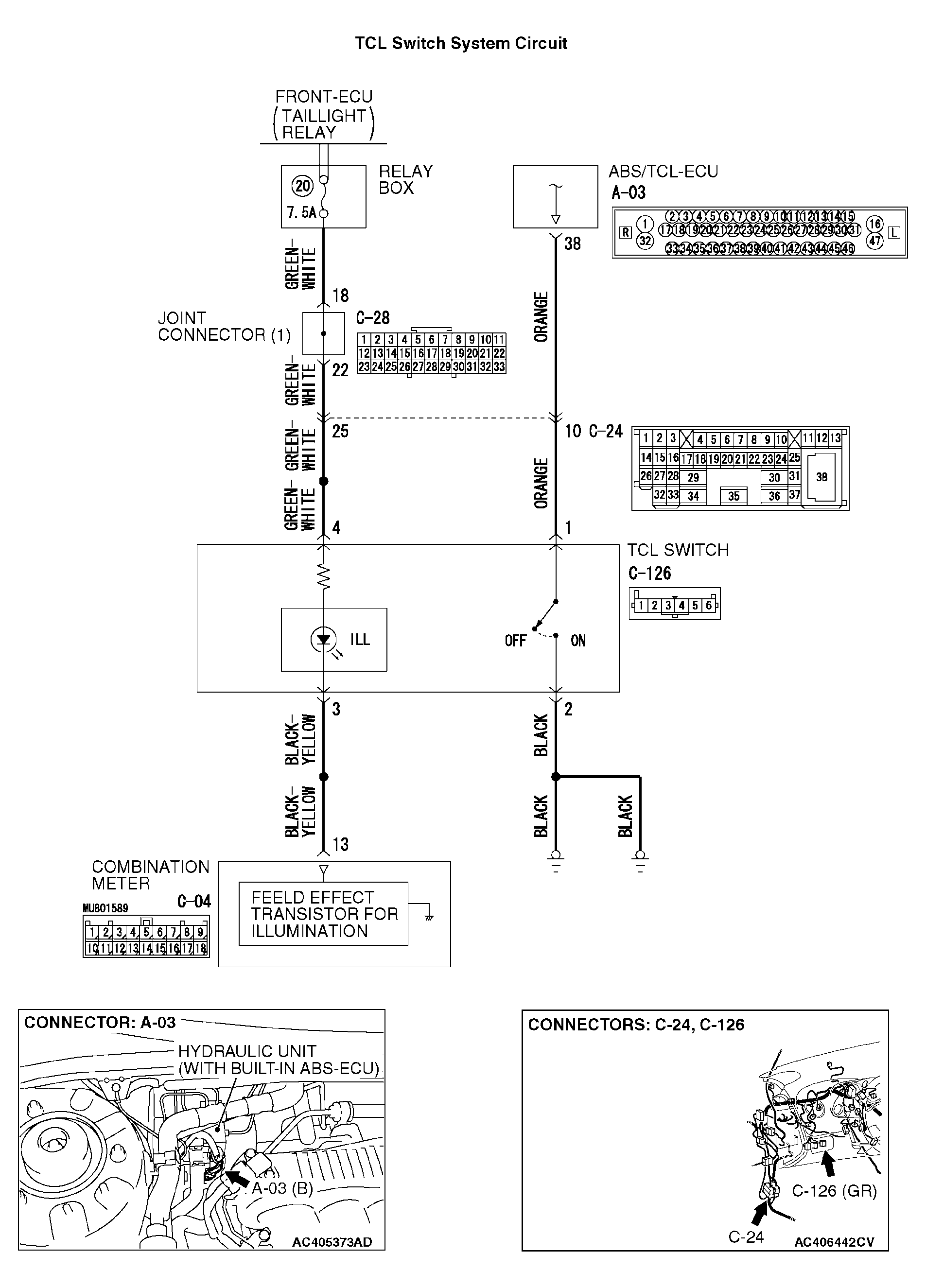

Fig 1: TCL Switch System Circuit Diagram
G04232329Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
