Initialization Procedure

Required Special Tools:

MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: MUT-III USB Cable
- MB991910: MUT-III Main Harness A

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958 to the data link connector.
Turn the ignition switch to the "ON" position.
Select "MFI system".
Select "Special Function" form the menu screen.
Select "Learned value reset".

Select the Item on the screen of the initialization for learning, and perform the initialization.

SERVICE AND ITEN CHART

Service

Item

Engine assembly replacement ⁽¹⁾, ⁽²⁾

All learned values

- ⁽³⁾

Misfire learned value

Injector and replacement cleaning ⁽²⁾

Fuel trim learned value

Throttle body cleaning and replacement ⁽¹⁾, ⁽²⁾

ISC learned value

Knock sensor replacement

Knock control learned value

⁽¹⁾	Initialize A/T-related learning value.

⁽²⁾	After initializing the learning value, the idling learning in MFI engine is required (Refer to LEARNING PROCEDURE FOR IDLING IN MFI ENGINE ).

⁽³⁾	The datum items on MUT-III display are shown, but do not use them.

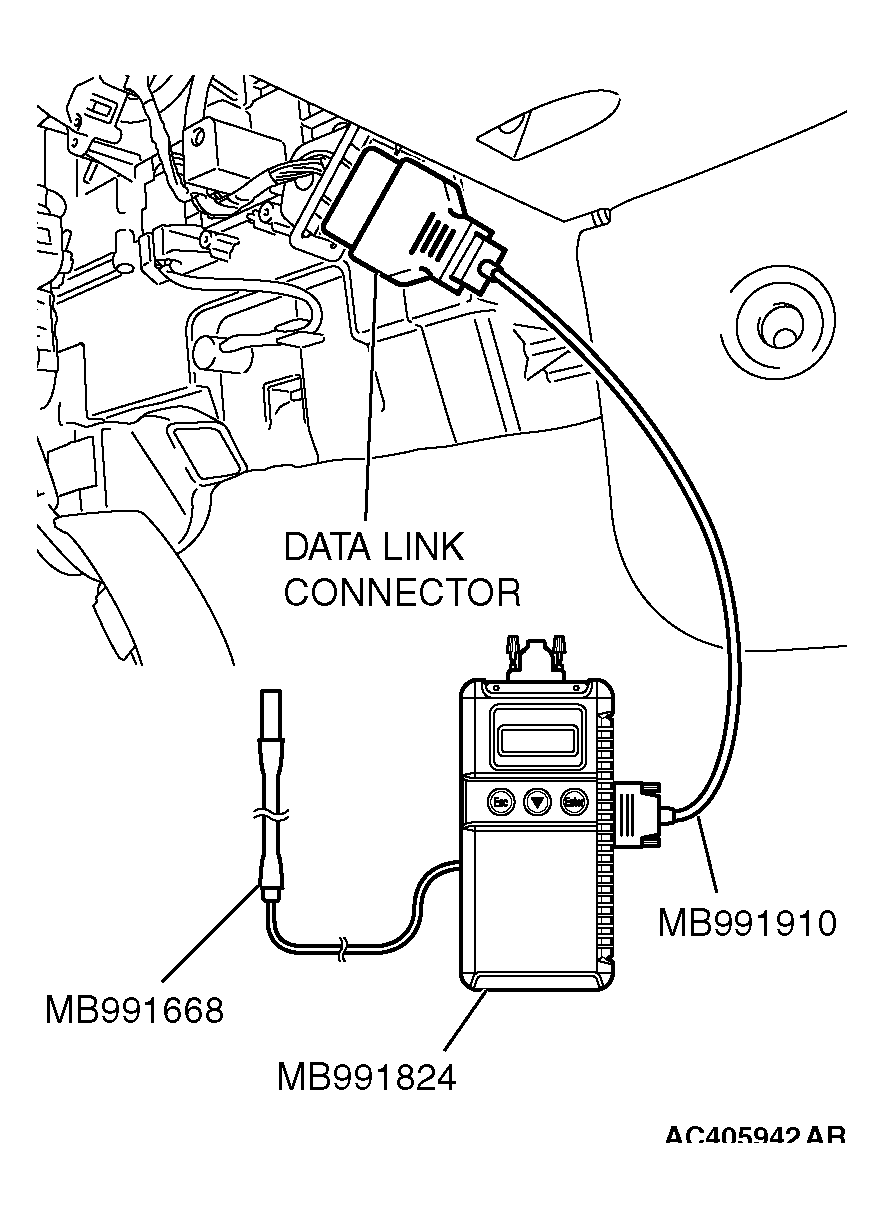

Fig 1: Connecting Scan Tool MB991958 To Data Link Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
