Clock Spring Check

If any malfunction is found in the following inspections, replace the clock spring with a new one.

1. Check the connectors and protective tube for damage, and the terminals for deformation.
2. Visually check the case for damage.
3. Check to see that there is a charge (continuity) between the C-306 clock spring connector terminal 1 and C-304 horn switch.

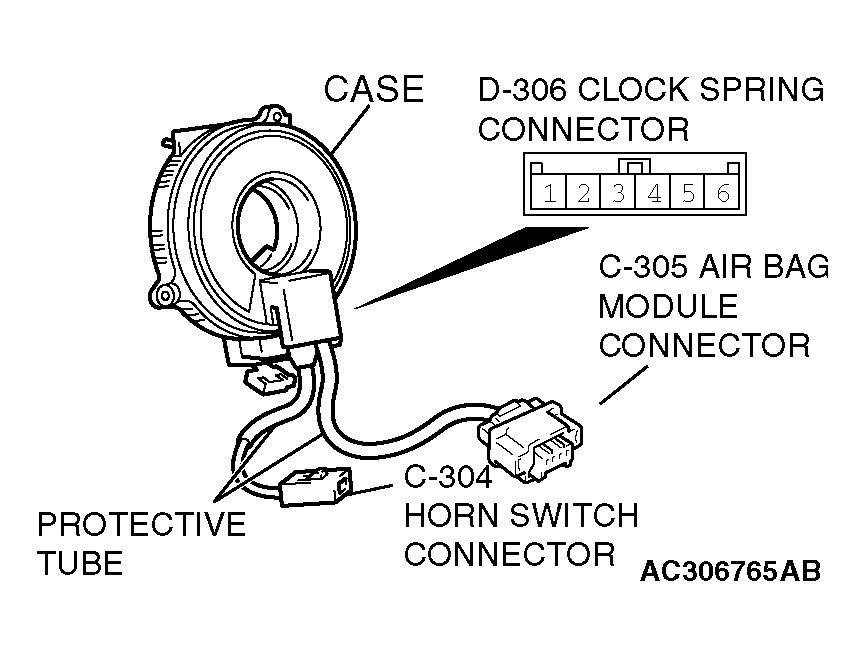

   Fig 1: Identifying Clock Spring Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   CAUTION: Do not directly insert a probe, etc. into the terminal from the front of the connector.
4. Insert the special tool (MB991222) from behind the airbag module connector of the C-305 driver's side.
5. As shown in the figure, connect the circuit tester to the special tool (MB992006) and check to see that there is a continuity between the terminals.

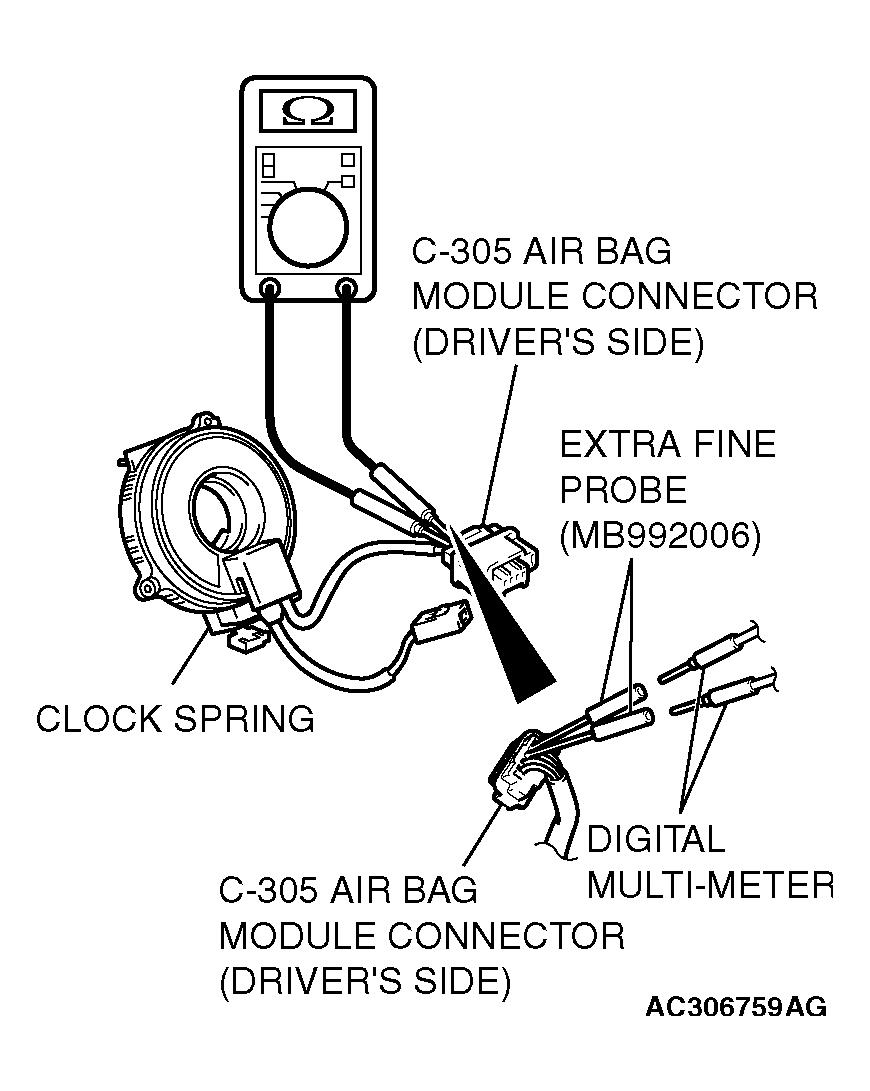

   Fig 2: Checking Continuity Between C-305 Clock Spring Connector Terminals

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
