Warning/Caution Labels: Schematic

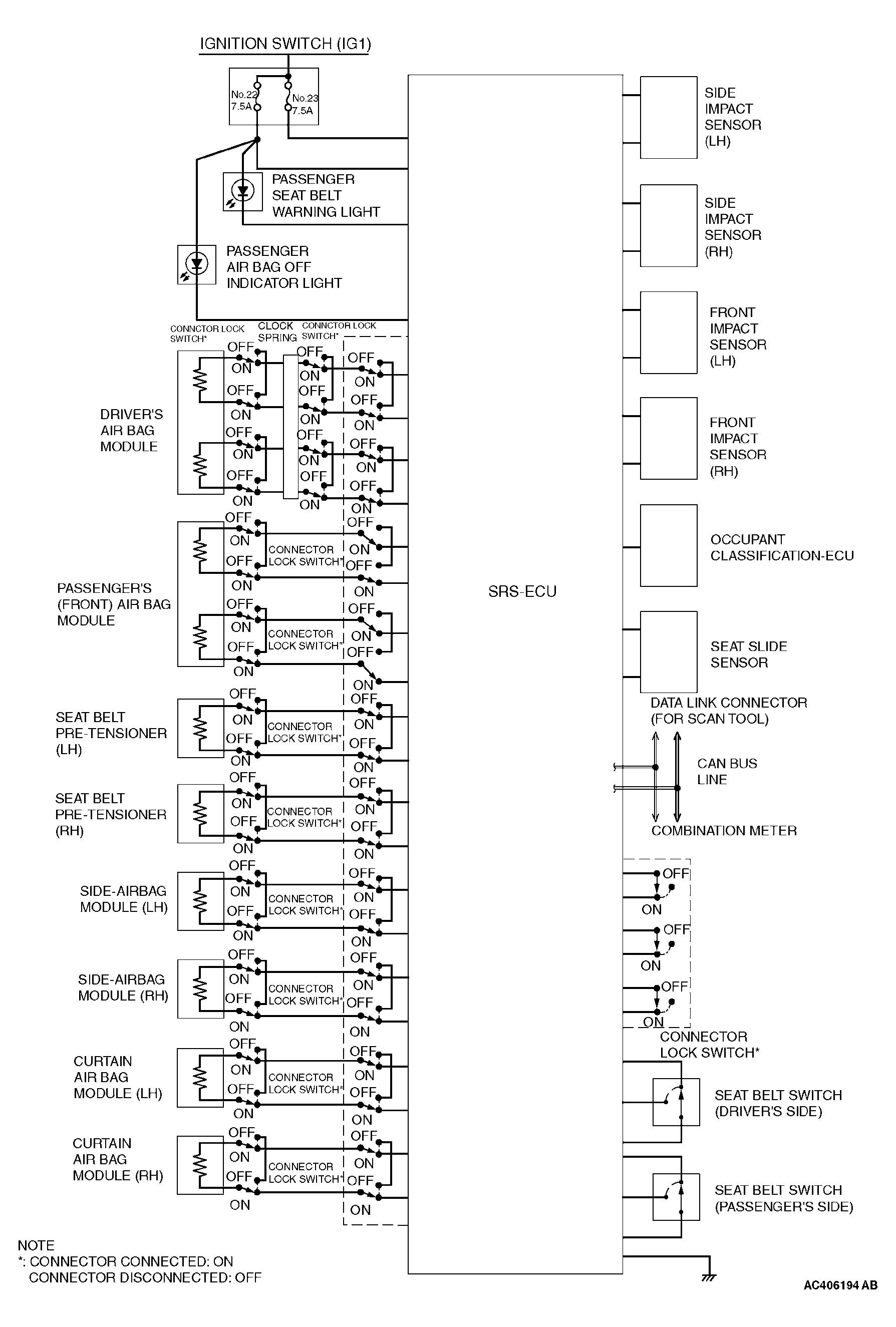

Fig 1: Supplemental Restraint System - Schematic Diagram
G04237827Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
