DTC B1401: Driver's Air Bag Module (1st Squib) System Fault 2 (Open in the Squib Circuit); DTC B1481: Driver's Air Bag Module (2nd Squib) System Fault 2 (Open in the Squib Circuit): Notes

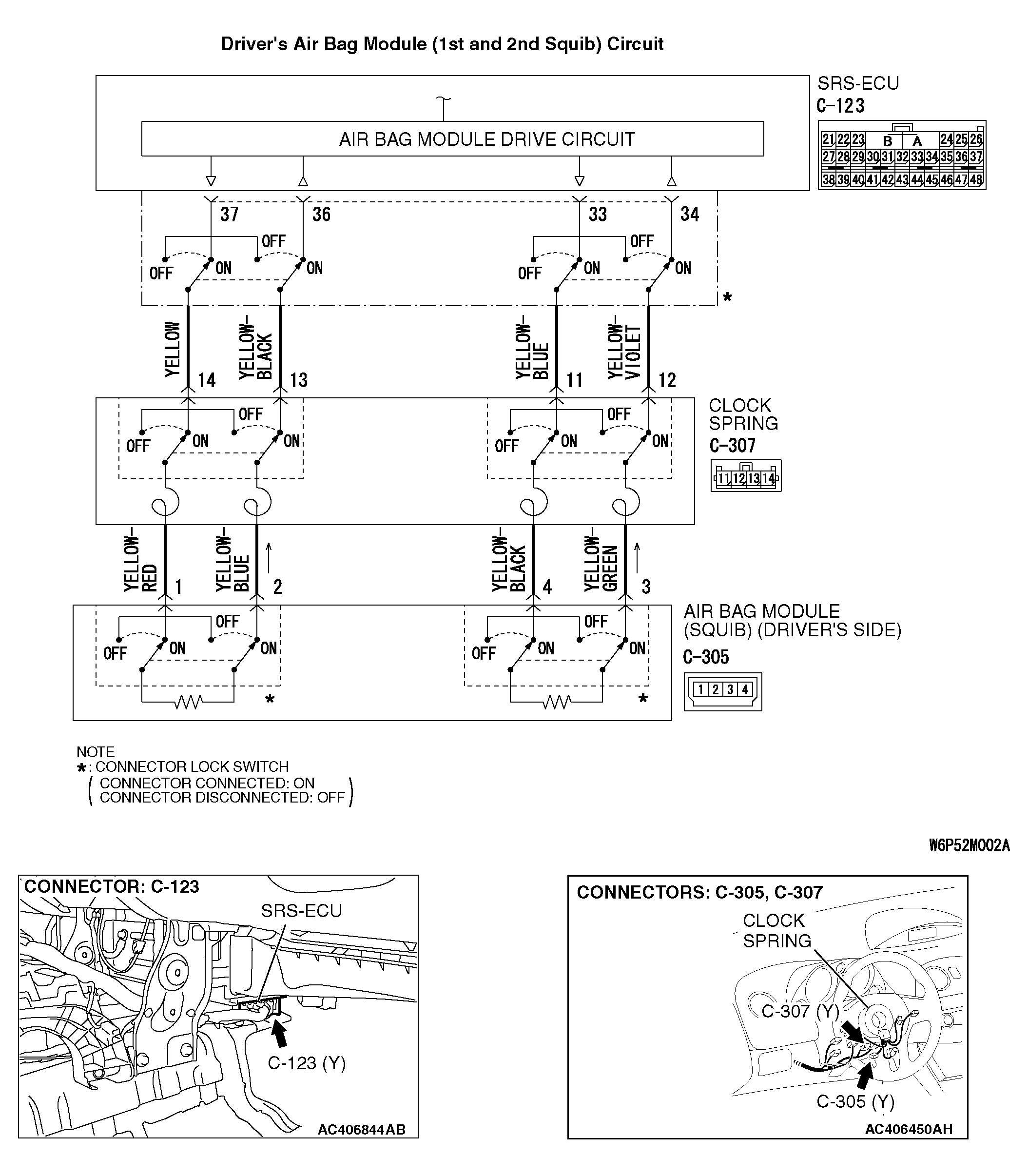

Fig 1: Driver's Air Bag Module (1st And 2nd Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1401 < 1st squib > or B1481 < 2nd squib > is set in the SRS-ECU, always diagnose the CAN main bus line.
