DTC B1489: Passenger Air Bag OFF Indicator Light Drive Circuit System Fault 1 (Light does not Switch Off).: Notes

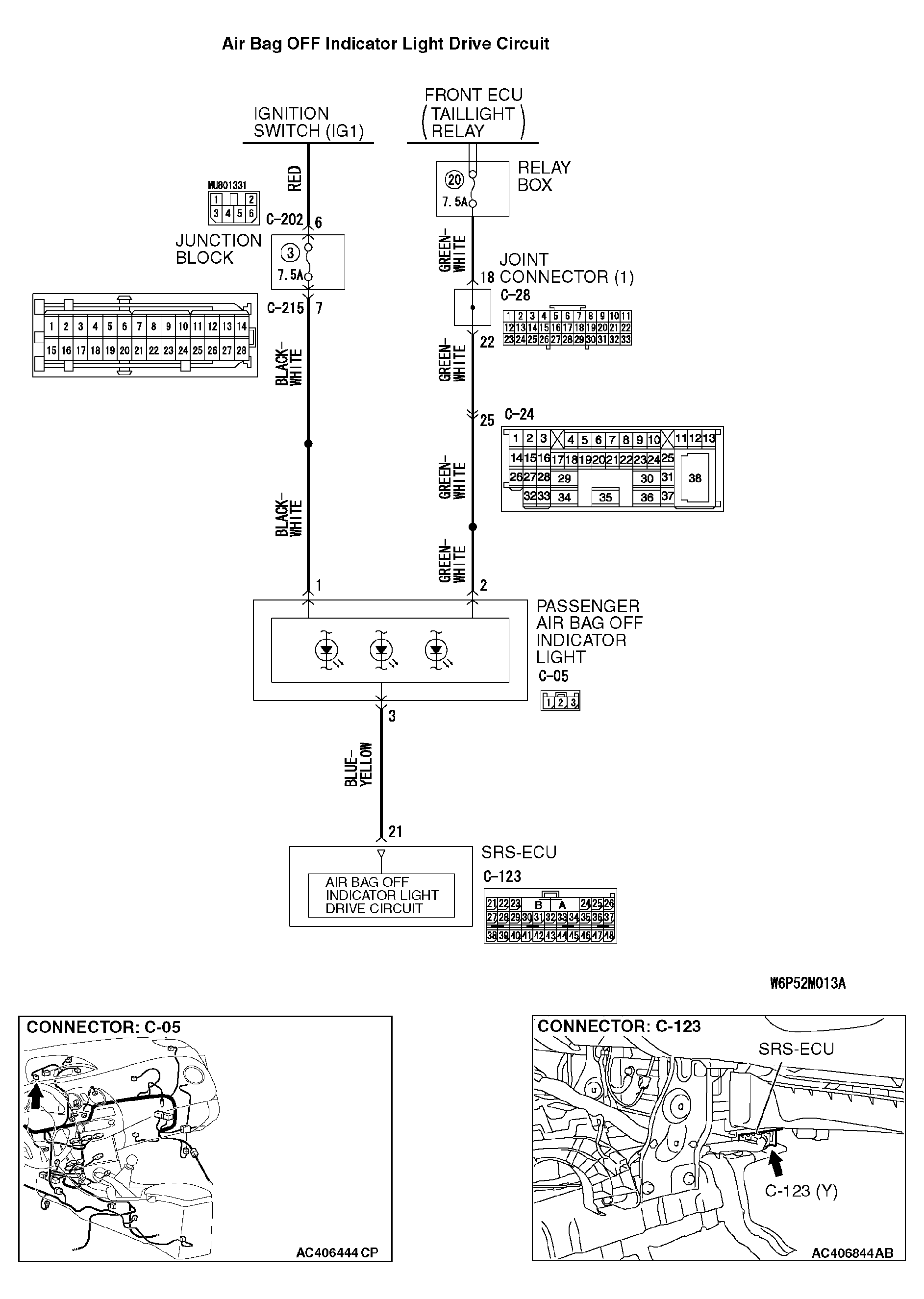

Fig 1: Air Bag OFF Indicator Light Drive Circuit Diagram
G04238423Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If DTC B1489 is set in the SRS-ECU, always diagnose the CAN main bus line.
